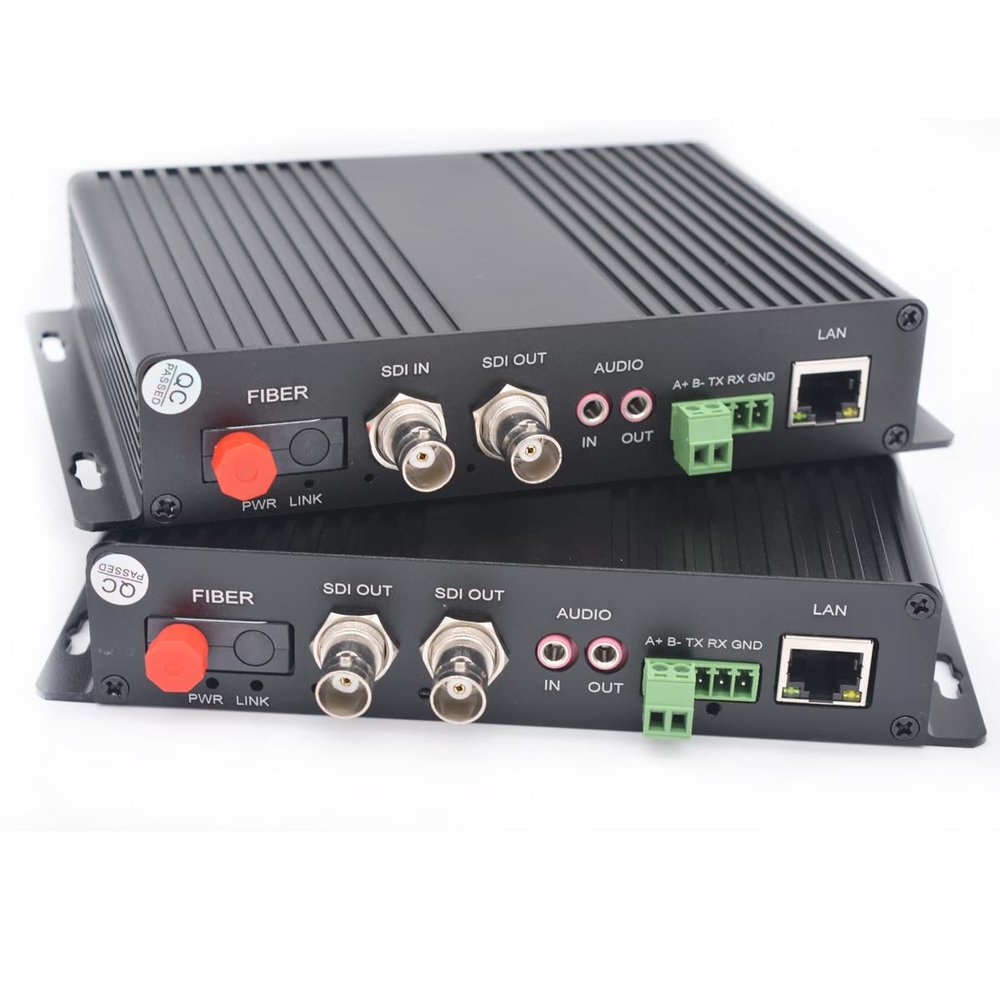

Wekuant 3G SDI Over Fiber Optic Converters, HD Video Audio Ethernet RS485 Data to Fiber, Lossless Transmission, Singlemode up to 12.4miles, Transmitter and Receiver Kit.

Description

• Support signals accord with standards of SMPTE424M(3G-SDI), SMPTE292M(HD-SDI), SMPTE259M(SD-SDI), and support digital TV signals such as DVB-ASI.
• 3G/HD-SDI signal with embedded audio signal. 3G-SDI is compatible with 1080P@60Hz max. Support 3G-SDI and HD-SDI camera.
• The LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment.
• FC fiber connector. Suitable fiber optic: universal singlemode and multimode. Working distance: Single mode 0-20Km, multimode 0~500meters.
• Plug-and-play design makes the installation convenient and easily.

Function:
1x 3G/HD-SDI in and loop out.
1x 10/100M Ethernet.
1x BIDI 3.5mm mini jack Audio.
1x BIDI RS-485 data.
FC fiber port, singlemode 0-20Km (12.4miles)

Overview:
The item is a 3G/HD-SDI over a fiber optic transmitter and receiver extender kit. This unit provides optical transmission of one 3G/HD-SDI signal with embedded audio signal and loop-out connectors and bidirectional 3.5mm mini jack audio in/out, also with one 10/100Mbps ethernet and bi-directional RS-485 data on the transmitter and receiver, use for network long distance transmission ,also can use for IP camera with RJ45 port.
The system support signals accord with standards of SMPTE424M(3G-SDI) ,SMPTE292M(HD-SDI),SMPTE259M(SD-SDI),and support digital TV signals such as DVB-ASI meeting the industrial requirements of audio and video equipment with high performance and reliability.
In addition, our innovative video, audio and data media transport system was designed to maintain lossless fiber extension between input and output signals. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Signal Bit Rate from 270 Mbps to 2.97Gbps. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured 3G/HD-SDI signal transport.

Specification:
Work voltage: AC100V~240V,DC5V/2A .(US/EU/UK/AU standard is optional)
Size: 150x114x32mm (LxWxH)
Weight: 1.2Kg.

Package Include:
1 x SDI Transmitter
1 x SDI Receiver
1x 3M FC-FC SM fiber patch cord
2 x Power adaptor (US/EU/UK/AU standard is optional)
1x Manual
