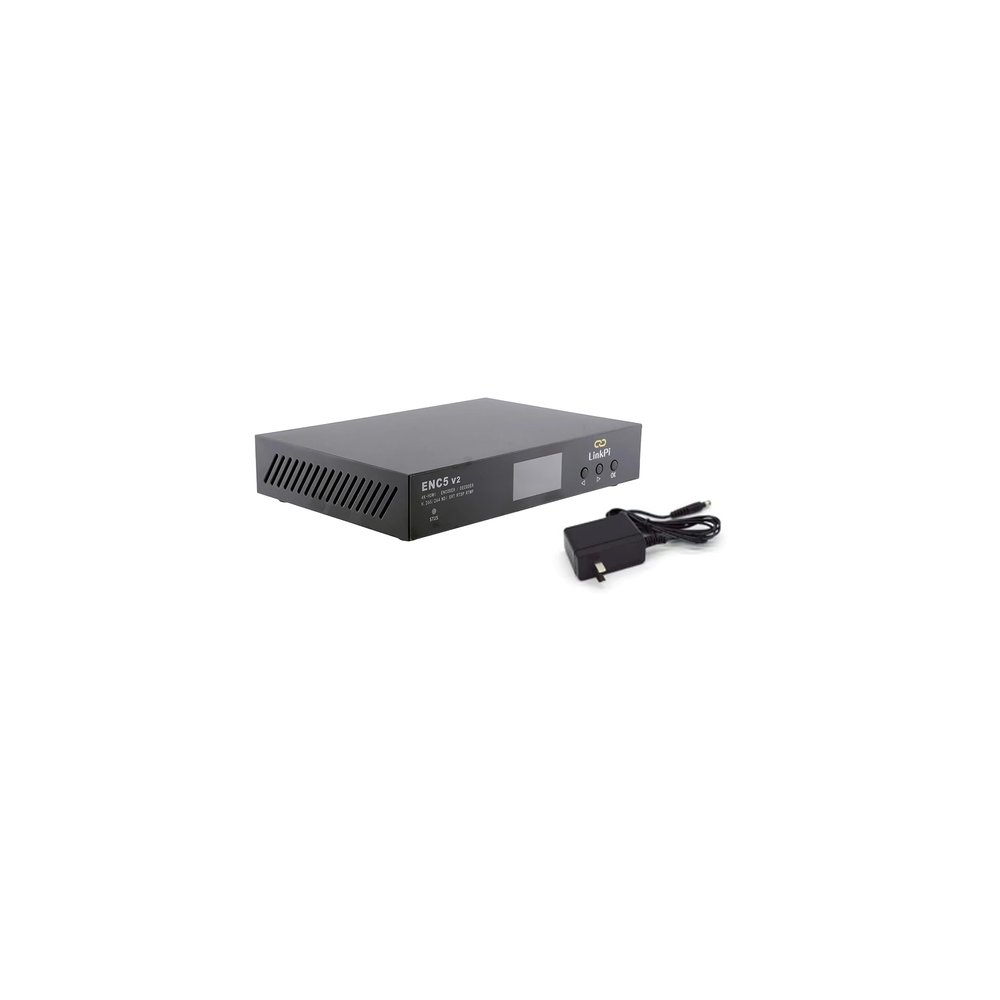

WayPonDEV Link Pi ENC5-V2 5 Port NDI HDMI Encoder, 4K 1080P Video Decoder, Support NDI/SRT/HX/RTMP/RTSP/ONVIF for YouTube Facebook Live Broadcast and Cameras, with 4GB DRR4 RAM

Description

• [5-Channel HDMI1.4 Encoder ] ENC5-V2 HD Encoder with 5 channels HDMI 1.4 port, support up to 4K@30fps input and 4K60P HDMI output multi protocol live broadcasting, including RTSP/RTMP/HTTP/HLS/UDP/ONVIF/Unitcast/Multicasting.
• [Support Mainstream Video Platforms] ENC5-V2 4K HD encoder compatible with most Internet video platforms and streaming sites such as YouTube Live, Facebook Live, Twitch and Twitter online Live Broadcast.
• [Full HD Resolution] ENC5-V2 HD encoder supported resolutions including 4K30, 1080P, 720P, 16001200, 1440900, 1366768, 12801024, 1024768, 800600, 640480. ENC5-V2 4K is not just a encoder, it support decoding, director, mixing and other functions at the same time. It can also achieve one-click remote assistance, live game, online class teaching.
• [Support WiFi/4G Module] ENC4S HDMI Encoder can achieve wireless transmission, mobile live and other programmes, while supporting multi-platform live, multi-picture guide switching. ENC5-V2 encoder also support LAN, public network call and Tally light control. It can auto-linking with vMix and other playback software
• [Various Peripheral Devices] ENC5-V2 hdmi encoder support a variety of peripheral devices, including: TV set-top boxes, laptops, cameras, network monitoring, USB cameras, mobile phones, game consoles, etc. ENC5-V2 encoder with wide range of application scenarios.
• [SDK Document] ENC5-V2 4K HD encoder support LinkSDK. SDK download: "wiki.youyeetoo.com/en/LinkPi". All technical and after-sales questions, please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)" or please click "WayPonDEV" store and ask the question.

-Specification-
CPUARM Cortex-A53@1.2GHz 4
RAM4GB DDR4FLASH8GB eMMC
-Video Parameters-
HDMI IN5-channel HDMI 1.4 up to 4K@30fps
HDMI OUTUp to 4K60
lnput4K30,1080P,720P,1080i,720i,16001200
Resolution1440900,1366768,12801024,1024768,800600,640x480
Encode
H.264 Baseline profileH.264 Main profile
H.264 High profileH.265 Main profile
MJPEG/JPEG Baseline
DecodeH264,H264,MJPEG
Encode Main1080P,720P,360P, customize
ResolutionSub: 720P,360P, customize
Framerate1~60 FPS
OtherSupport SmartP, DualP
Max Bitrate20Mbps
Rate controlCBR/VBR/AVBR/FIXQP/QPMAP
-Network parameters-
LAN: 10/100/1000M RJ45
WIFI: Optional
4G: Optional
ProtocolsRTSPRTMP,HTTP, HLS, UDP, unicast, multicast
Support: ONVIFSRTNDI
File record: Storage: USB Disk
Record format: MP4,TS,FLV,MOV,MKV,AVI
-Package Content-
ENC5-V2 HDMI Encoder x1
12V 2A Power Supply x1
