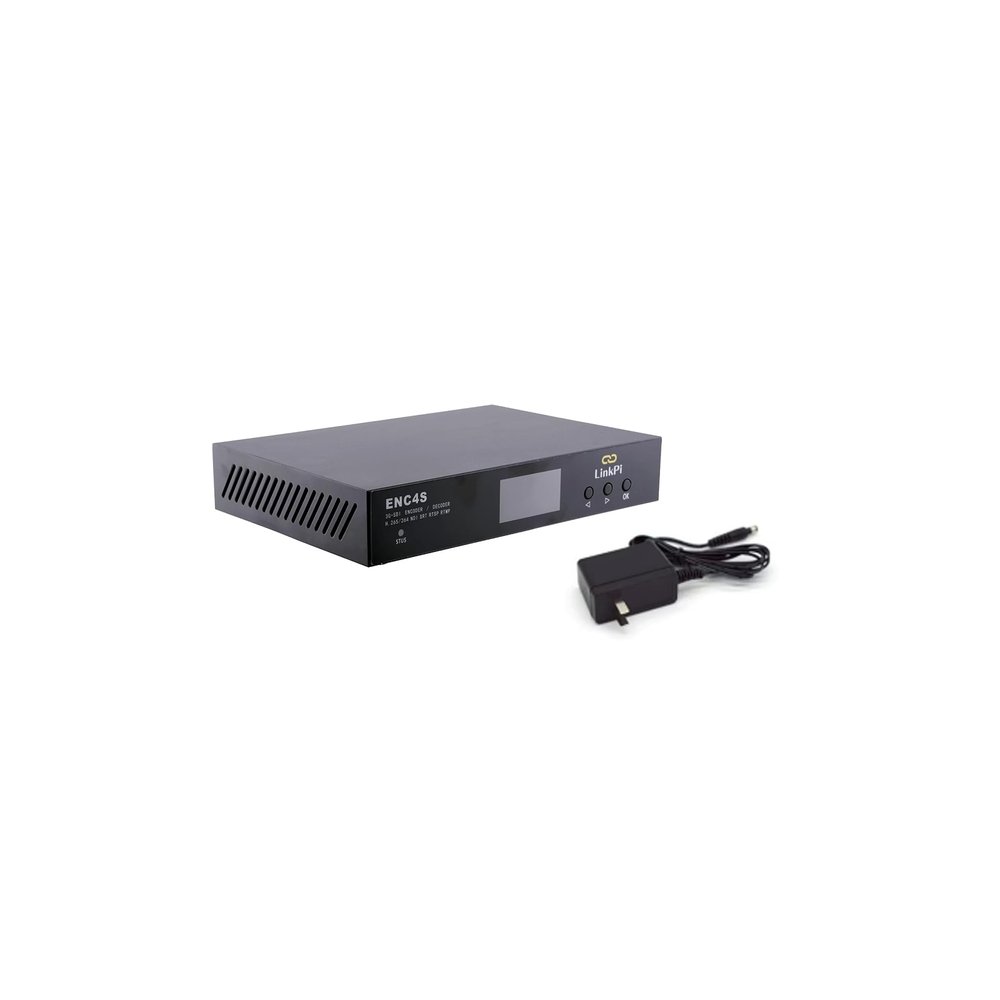

WayPonDEV Link Pi ENC4S 4-Channel 3G-SDI Encoder, 4K HD Decoder Support SRT/NDI/RTMP for YouTube Live Streaming H.265+smartP 4K60 HDMI Output with 2GB DDR4 RAM 8GB eMMC

Description

• [4-Channel 3G-SDI Encoder ] ENC4S HD encoder with 4 channels 3G-SDI, support up to 4K@30fps input and multi protocol live broadcasting, including RTSP/RTMP/HTTP/HLS/UDP/ONVIF/Unitcast/Multicasting.
• [Support Online Live Broadcast] ENC4S 4K HD encoder compatible with most Internet video platforms and streaming sites such as YouTube Live, Facebook Live, Twitch and Twitter online Live Broadcast. ENC4S 4K HD encoder can achieve one-click remote assistance, live game, online class teaching.
• [Support WiFi6/4G Module] ENC4S SDI encoder can achieve wireless transmission, mobile live and other programmes, while supporting multi-platform live, multi-picture guide switching. ENC4S encoder also support LAN, public network call and Tally light control. It can auto-linking with vMix and other playback software.
• [Multi-screen guide] In addition to each HDMI, USB, network and other channels of input video. In addition to the input video of each HDMI, USB, network and other channels, the system also supports the arrangement and mixing of the images of multiple channels. And can be real-time guide switching.
• [Various Peripheral Devices] ENC4S SDI encoder support a variety of peripheral devices, including: TV set-top boxes, laptops, cameras, network monitoring, USB cameras, mobile phones, game consoles, etc. ENC4S SDI encoder with wide range of application scenarios.

-Specification-
CPUARM Cortex A7 4X1.2GHz 32KB l-Cache32KB D-Cache
RAM2GB DDR4FLASH8GB eMMC
-Video Parameters-
SDI input: 4 channels 3G-SDI, up to 1080P60; 3G-SDI, up to 1080P60
HDMI OUTUp to 4K30
SDI OUT3G-SDI Output
lnput 4K30,1080P,720P,1080i,720i,16001200
Resolution1440900,1366768,12801024,1024768,800600,640x480
Encode
H.264 Baseline profileH.264 Main profile
H.264 High profileH.265 Main profile
MJPEG/JPEG Baseline
DecodeH264,H264,MJPEG
Encode Main4K, 1080P, 720P, 360P
ResolutionSub: 720P,360P, customize
Framerate1~60 FPS
OtherSupport SmartP, DualP
Max Bitrate20Mbps
Rate controlCBR/VBR/AVBR/FIXQP/QPMAP
-Network Parameters-
LAN10/100M RJ45
WIFIOptional external wifi module
4G/5GOptional
ProtocolsRTSPRTMP,HTTP, HLS, UDP, unicast, multicast
Support: ONVIFSRTNDIGB28181
-Package Content-
ENC4S SDI HD Encoder x1
12V 2A Power Supply x1
-Technical Support- Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo&com (#--->@,&--->.)" or skype: monica_9122.
