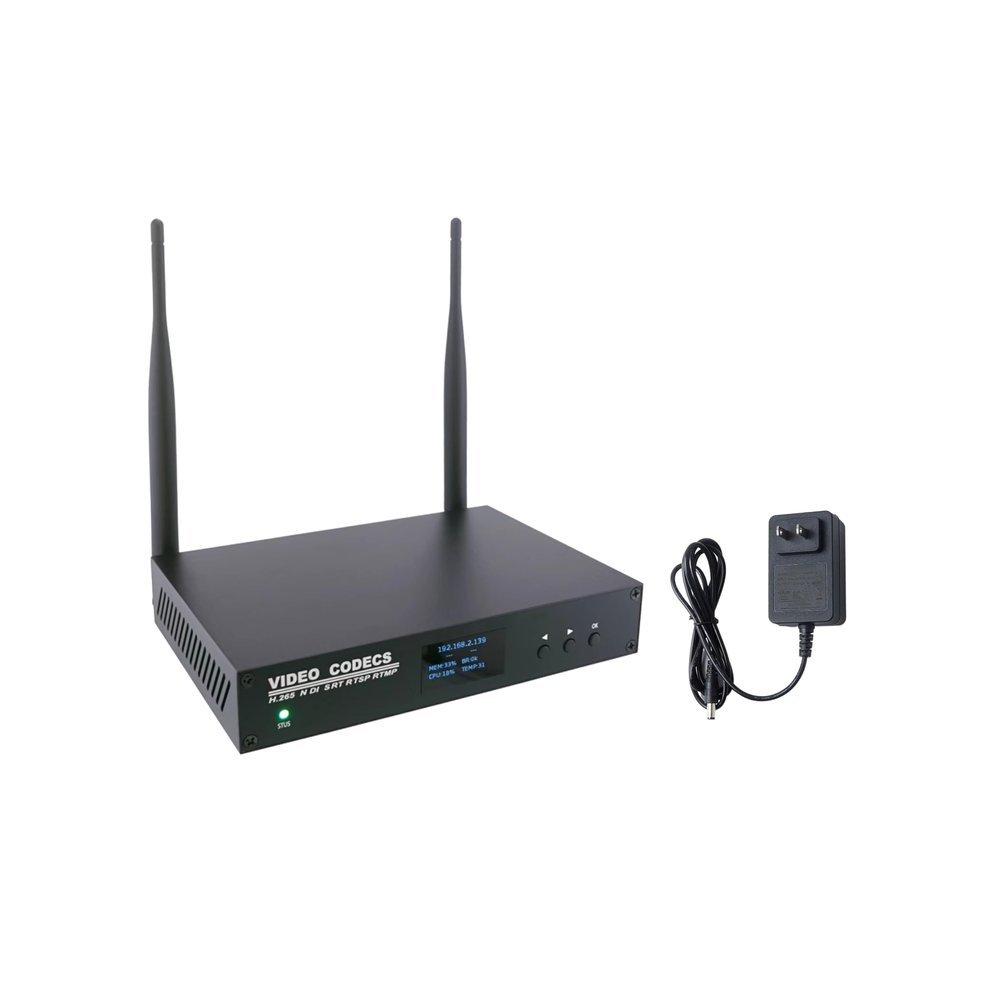

WayPonDEV ENCSH V2 SDI 4K Encoder, 1080P Video Decoder Built-in 3G-SDI up to 1080P60, Support SRT,NDI,RTSP,RTMP, with WiFi 6 Gigabit Ethernet for Live Broadcast YouTube Facebook

Description

• [4K Full HD Resolution] ENCSH V2 HD HD-MI encoder supported resolutions including 4K30, 1080P, 720P, 16001200, 1440900, 1366768, 12801024, 1024768, 800600, 640480. Onboard Gigabit Ethernet port,it can enable faster data transmission and a more stable network environment.
• [Multi-protocol Transmission] ENCSH V2 1080P HD encoder with HD-MI 1.4 and 3G-SDI, support up to 4K@30fps/1080P60 input and multi protocol live broadcasting, including RTSP/RTMP/HTTP/HLS/UDP/ONVIF/Unitcast/Multicasting.
• [Support for Mainstream Platforms] ENCSH V2 4K HD encoder compatible with most Internet video platforms and streaming sites such as YouTube Live, Facebook Live, Twitch and Twitter online Live Broadcast.
• [Support WiFi6/4G Module] ENCSH V2 encoder with WiFi 6 (RTL8852BU), it can achieve wireless transmission, mobile live and other programmes, while supporting multi-platform live, multi-picture guide switching.ENCSH V2 encoder also support LAN, public network call and Tally light control. It can auto-linking with vMix and other playback software.
• [Support Online Decoding] ENCSH V2 not just a encoder, it also support decoding, director, mixing and other functions at the same time. And can achieve one-click remote assistance, live game, online class teaching.
• [SDK Document] ENCSH V2 4K HD encoder support SDK download please click "WayPonDEV" store and ask the question. All technical and after-sales questions, please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".

-Specification-
CPUARM Cortex A7 4X1.2GHz 32KB l-Cache32KB D-Cache
RAM2GB DDR4FLASH8GB eMmc
-Video Parameters-
HD-MI INHD-MI 1.4 up to 4K@30fps
SDI IN3G-SDI,up to 1080P60
HD-MI OUTUp to 4K30
SDI OUT3G-SDI Output
lnput 4K30,1080P,720P,1080i,720i,16001200
Resolution1440900,1366768,12801024,1024768,800600,640x480
Encode
H.264 Baseline profileH.264 Main profile
H.264 High profileH.265 Main profile
MJPEG/JPEG Baseline
DecodeH264,H264,MJPEG
Encode Main1080P,720P,360P, customize
ResolutionSub: 720P,360P, customize
Framerate1~60 FPS
OtherSupport SmartP, DualP
Max Bitrate20Mbps
Rate controlCBR/VBR/AVBR/FIXQP/QPMAP
-Network parameters-
LAN10/100/100OM RJ45
WIFIWifi 6(RTL8852BU)
4G/5GOptional
ProtocolsRTSPRTMP,HTTP, HLS, UDP, unicast, multicast
ONVIFSRT SupportNDI-HX Support(license required)
-Package Content-
ENCSH V2 HD Encoder x1
Power Supply x1
Glue stick antenna x 2
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message "wpd#youyeetoo&com (#--->@,&--->.)" or skype: monica_9122.
Please leave the message in our forum by "forum.youyeetoo.com/".
