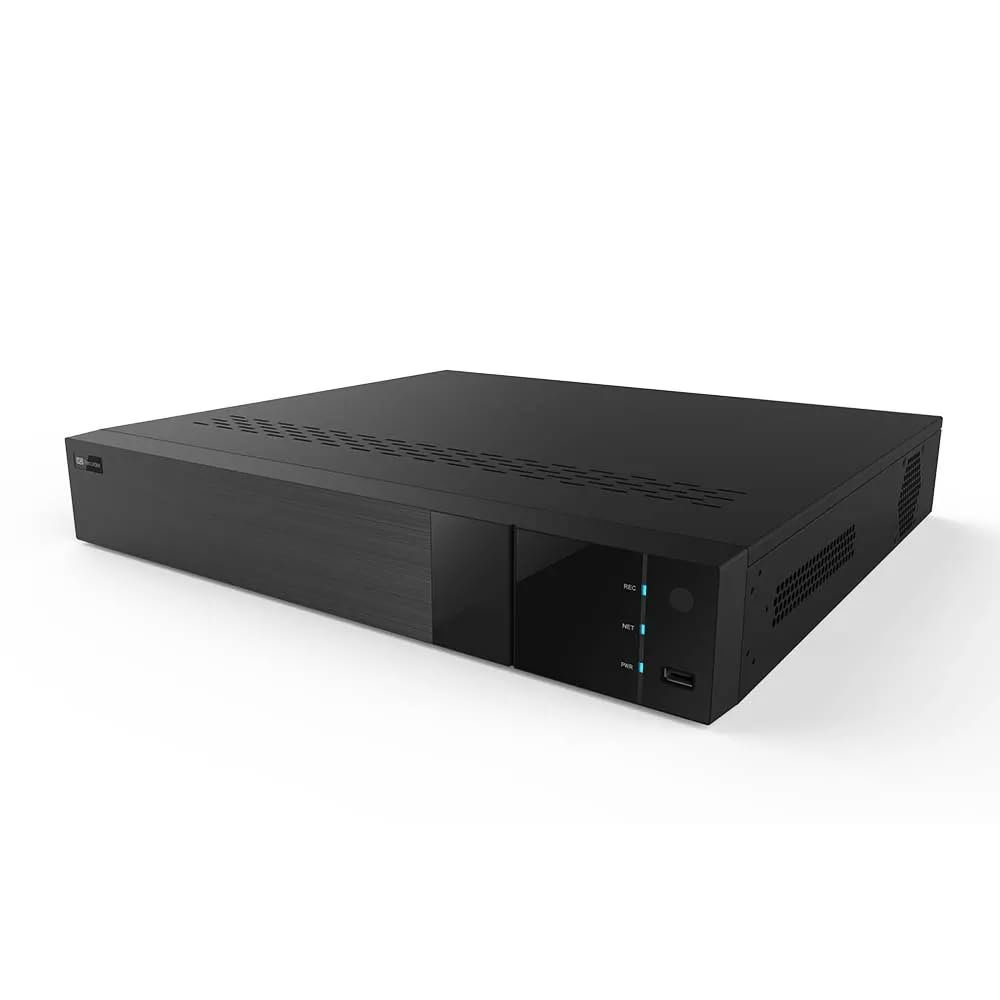

Titanium ED8432H5-DN DVR NVR Max. 40CH (Upto 32CH BNC / 24CH IP) 5MP Lite @10FPS HDMI/VGA/CVBS(or Spot) Audio/Alarm 4SATA 1ESATA (HDD Not Included) NDAA 5-in-1 Surveillance Recorder

Description

• Max Recording Resolution: 5MP Lite
• Channels: 32CH
• LAN Ports: 1
• SATA: 4X SATA PORTS
• Video Outputs: HDMI / VGA
• NDAA Compliant: Yes
• Hardware Features: Alarm in, Alarm out, Audio in, Audio out, BNC Video Out
• HDD Not Included
• Superlive Plus APP

ENS ED8432H5-DN Titanium 32-Channel Hybrid 5MP 4 SATA Digital Video Recorder, Max. 40CH (Up to 32CH BNC/24CH IP), Embedded LINUX, 40/160Mbps Bandwidth, 16CH Playback, Audio/Alarm, 4 SATA,1 eSATA

KEY FEATURES
- 32 CH TVI/AHD/CVI video input
- 32 CH DVRs support 8 CH IP video input
- 16CH Analog video input can be switched to 16CH IP video input
- Adopt standard H.265 high profile compression format to get high-quality video at a much lower bit rate
- Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse
- Search: time slice, time, event, tag, and smart search
- Express and flexible backup via USB, network, and so on
- Pentaplex: preview, record, playback, backup, and remote access
- DHCP, DDNS, PPPoE network protocol
- Authorization management, log review, and device status review
- 1080P output, true high-resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smartphones with iOS and Andriod OS
- The DVR unit is supplied without pre-installed hard drives. Storage media must be purchased and installed separately to enable recording functionality.

SPECIFICATIONS
- Main Processor: Embedded Processor
- Operating System: Embedded LINUX
- Remote control via Web Client or CMS: preview, playback, backup, PTZ, and configuration
- Multi-screen Display: 1/4/6/8/9/13/16/25/32/36
- Two-way audio: Take up channel one audio input
- Alarm mode: Manual, motion, exception, smart event
- Audio: 16 In / 1 Out
- Alarm: 16 In / 4 Out
- Interface: RJ 45 1000Mbps 1
- Incoming Bandwidth: 40Mbps
- Outgoing Bandwidth: 160Mbps
- HDD: SATA4, up to 10TB per HDD; E-SATA1
- USB: USB 2.0 1; USB 3.0 1
- RS 485: Yes (full-duplex), connect to PTZ or keyboard
- Power Supply: ATX-250W
- Consumption: 30W
- Working Environment: -10~50C, 10%~90% (humidity)
- Dimensions: 440 390 70mm
