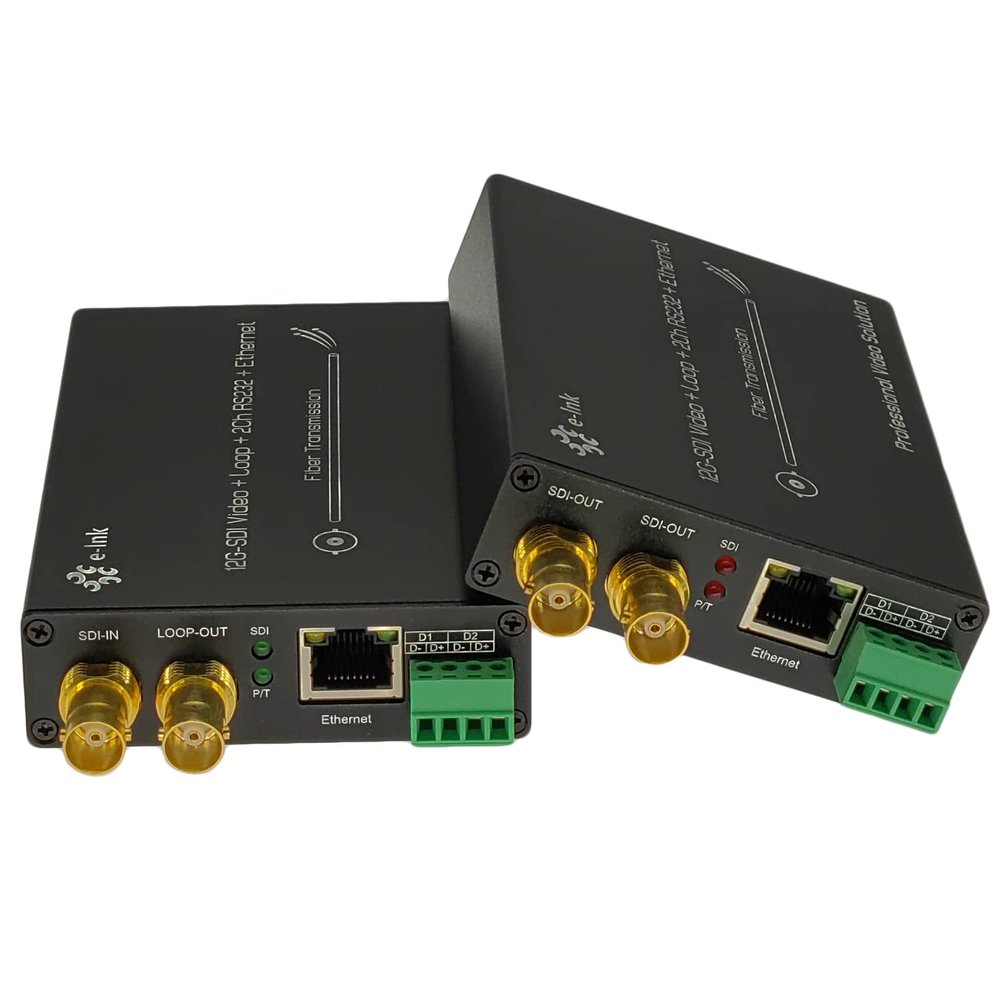

Steloproad 12G-SDI Fiber Converter with 10/100/1000M Ethernet, Full Digital Non-compression Broadcast Level Transmission, 2Ch RS485 Tally and Loop Output, Supports 4K*2K

Description

• [12G-SDI Ultra HD]: The 12G SDI fiber converter support 12G/6G/3G/HD-SDI with 8-channel audio embedded, resolution up to 3840*2160@60Hz, automatic reclocking 270Mbit/s - 12Gbit/s
• [Support RS485&Tally]: The SDI to fiber converter support both Backwards RS485(Max 57600) and Tally. You can control other device or use Tally Function in broadcasting
• [Support Loop output]: The fiber optical transceiver support loop output, you can see the image easily in local side
• [Support Gigabit Ethernet]: 10/100/1000Base-TX RJ45 port, you can use the SDI optical transceiver to connect RJ45 devices
• [Good Compatibility ]: The 12G SDI over fiber device compatible with more SDI cameras on market. Its widely used in films recording, live events, broadcasting, industrial monitoring and stadium etc.

Features:
Supports 1Ch 12G Video (8-channel audio embedded) + 2Ch RS485 + 1Ch 10/100/1000M Ethernet + 12G Loop out
Directly compatible with 12G/6G/3G-SDI camera systems
Full digital non-compression broadcast level transmission
Super optic dynamic range and free of adjustment
Supports Automatic cable equalization to ensure signal integrity
Fiber optic WDM/CWDM/DWDM technique
Support HDTV 4K*2K(3840*2160@60Hz),1080P,1080I,720P resolution
Long transmission capability up to 20 km

Specifications:

Transmitter:
Input: 1 x 12G-SDI on BNC, 1 x Gigabit Ethernet
Output: 2 x FC optical fiber, 1 x 12G-SDI loop-out on BNC
Receiver:
Input: 2 x FC optical fiber
Output: 2 x 12G-SDI on BNC
Material: Aluminum Housing
Input cable specification: 70m@12G SDI Belden 1694A
Output cable specification: 60m@12G SDI Belden 1694A
Optical transmission bandwidth: 270MHz12GHz
Compatibly: Compatible With DVB-ASI and AES10 (MADI), Support ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
Integrated Reclocker Locks to SMPTE Rates: 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
Power Input: 12V DC
Power Consumption: 6 W (Max.)
Dimensions (LxWxH): 4.61*3.15*0.95inch (117*80*24 mm)
Operating Temperature: -1070

Note: If you have any questions or find the 12G SDI Fiber Converter cant use, please contact us. Our professional technical staff will teach you how to use or help you find the reason and solve it.

Package:
12G-SDI Fiber Converter Transmitter*1
12G-SDI Fiber Converter Receiver*1
DC 12V power supply*2
Fiber Converter Users Manual*1
