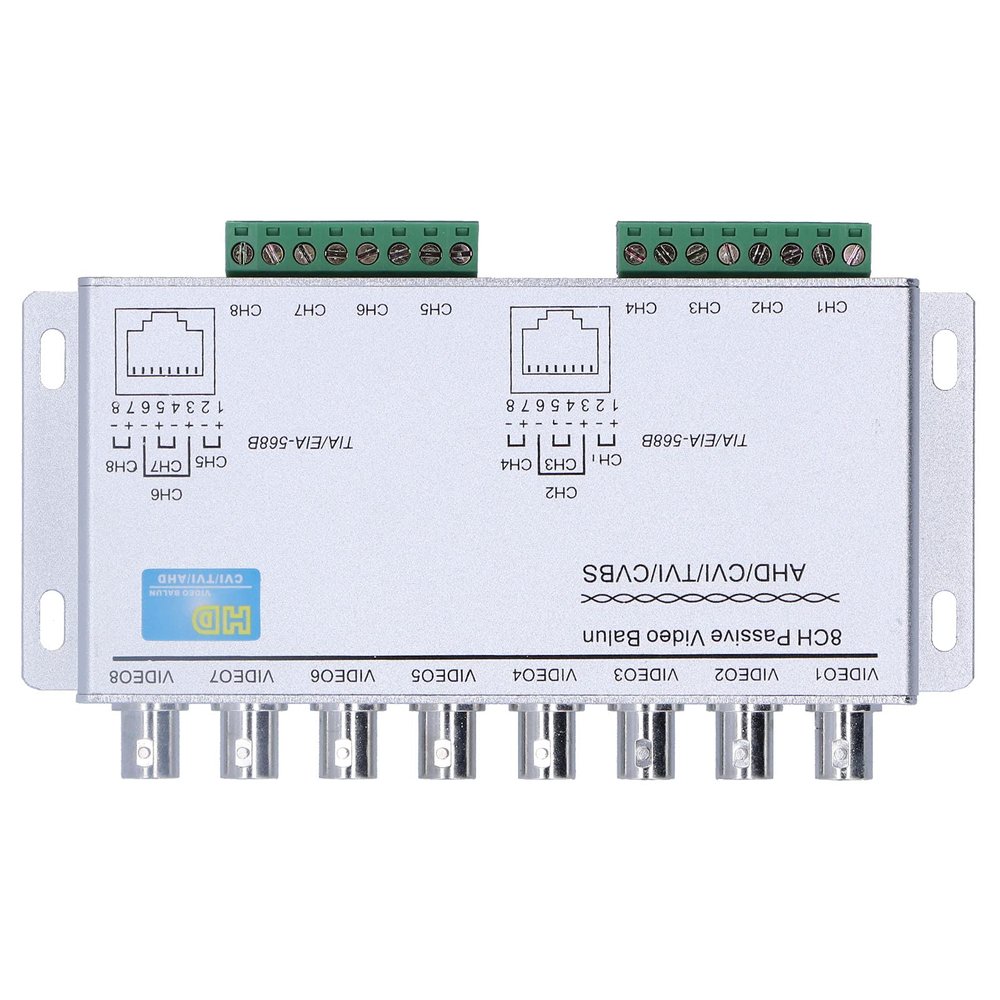

shenruifa 8 Channel Passive Video Balun Twisted Pair Transmitter 720P 1080P High Definition AHD CVI TVI CVBS

Description

• Convert the video into the balanced , and transmit it on a normal Cat-5 unshielded twisted pair cable with a perfect rate.
• It can transmit 8 channels of video . 8core Cat5 twisted pair cable simultaneously displays video images.
• It can be used in occasion such as video surveillance and video conferencing. Compatible with all for HDCVI, HDTVI, HDAHD.
• Support NTSC, PAL and SECAM video formats. It has 60dB crosstalk and antinoise capability.
• Excellent antiinterference ability. Builtin TVS can voltage up to 4000V.

1. Convert the video into the balanced , and transmit it on a normal Cat-5 unshielded twisted pair cable with a perfect rate.
2. It can transmit 8 channels of video . 8?core Cat?5 twisted pair cable simultaneously displays video images.
3. It can be used in occasion such as video surveillance and video conferencing. Compatible with all for HD?CVI, HD?TVI, HD?AHD.
4. Support NTSC, PAL and SECAM video formats. It has 60dB crosstalk and anti?noise capability.
5. Excellent anti?interference ability. Built?in TVS can voltage up to 4000V.
6. No need for power supply, simple installation, can simplify the wiring project and save the amount of wire usage.

Specification:
Item Type: Video Balun
Material: Metal
Video Format: NTSC, PAL
Maximum Input: 1Vp-p
Frequency Response: DC to 60MHz
CMMR: 60dB, (20K-60M) Hz
Wire Type: UTP (22-24) AWG
Wire Category: CAT5e CAT6
ESD: 8KV
Impedance: BNC: 75ohms, RJ45: 100ohms
Working Temperature: -10-60?
Storage Temperature: -30-70?
Humidity Range: 0-95%
Distance:
Up to 450m/1476.4ft for 720P CVI Cameras
Up to 250m/820.2ft for 1080P CVI Cameras
Up to 250m/820.2ft for 720P/1080P TVI Cameras
Up to 320m/1049.9ft for 720P AHD Cameras
Up to 250m/820.2ft for 1080P AHD Cameras
How to Use:
Connect one end to twisted pair cable and analog camera, and the other end to DVR, it can be used after power on

Package List:
1 x Video Balun
1 x Manual
