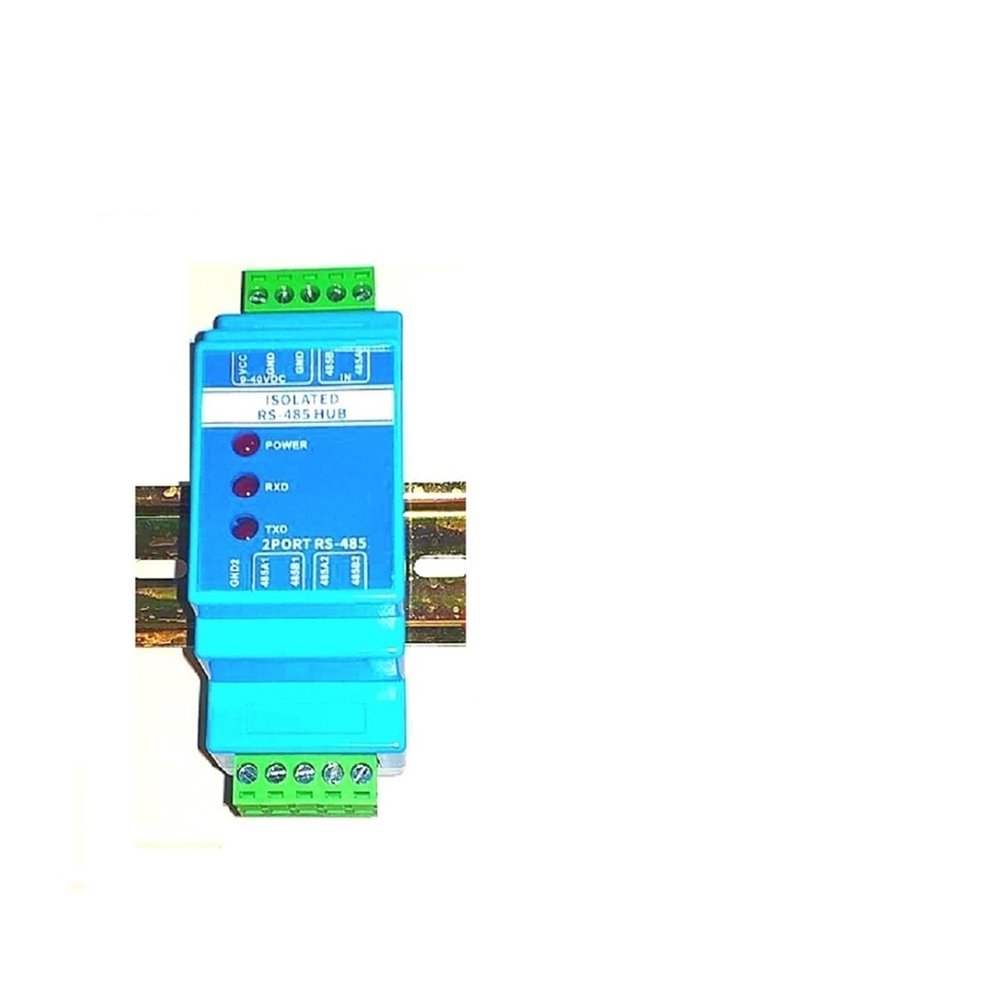

RS485 Repeater Photoelectric Isolation HUB, DIN Rail 1 Port 485 to 2 Port 485 Signal Amplifier(Repeater)

Description

• Standard DIN 35mm rail installation
• Optical isolation, and surge protection
• Strong a/;n;/ti-interference ability, industrial-grade signal amplification, automatic identification of data flow
• Transmission full agreement
• 115.2kbps high speed

RS485 Repeater Photoelectric Isolation HUB, DIN Rail 1 Port 485 to 2 Port 485 Signal Amplifier
Standard DIN 35mm rail installation
Optical isolation, and surge protection
Strong a/;n;/ti-interference ability, industrial-grade signal amplification, automatic identification of data flow
Transmission full agreement
115.2kbps high speed
DC 9V-40V 500mA wide voltage power supply
RS485 two-wire system (A/B) automatically send and receive data
1 RS485 input, 2 RS485 output
Communication baud rate is 300bps--115.2kbps
Each RS485 output can connect 128 load devices
The communication distance of each RS485 output interface is 3000 meters
High-speed photoelectric isolation, protection and a/;n;/ti-surge, isolation DC-DC module
Temperature characteristics: -25to 70, relative humidity: 95%
Work indicator: power light, RXD light, TXD light
5P pluggable terminal block Compatible easy connection with equipment
Signal amplification, strong stability, photoelectric isolation, flexible networking
The wiring terminals are defined as follows:
Input
VCC: Positive power supply, DC 9V-40V
GND: Negative power supply
GND: Negative pole of power supply (just connect o/n;e)
485B: RS485 B
485A: RS485 A
Output
GND2: Common ground
485A1: The first port RS485 A
485B1: The first port RS485 B
485A2: The second port RS485 A
485B2: The second port RS485 B

F/;TD/;1 DRIVER DOWNLOADING:https://ftdichip.com/drivers/vcp-drivers/
INSTALLATION GUIDELINE:https://ftdichip.com/document/installation-guides/
If you have special requirements, such as cable length, wire gauges and pinouts, please consult to me online or leave me a message.
If you have special requirements, such as cable length, wire gauges and pinouts, please consult to me online or leave me a message.
