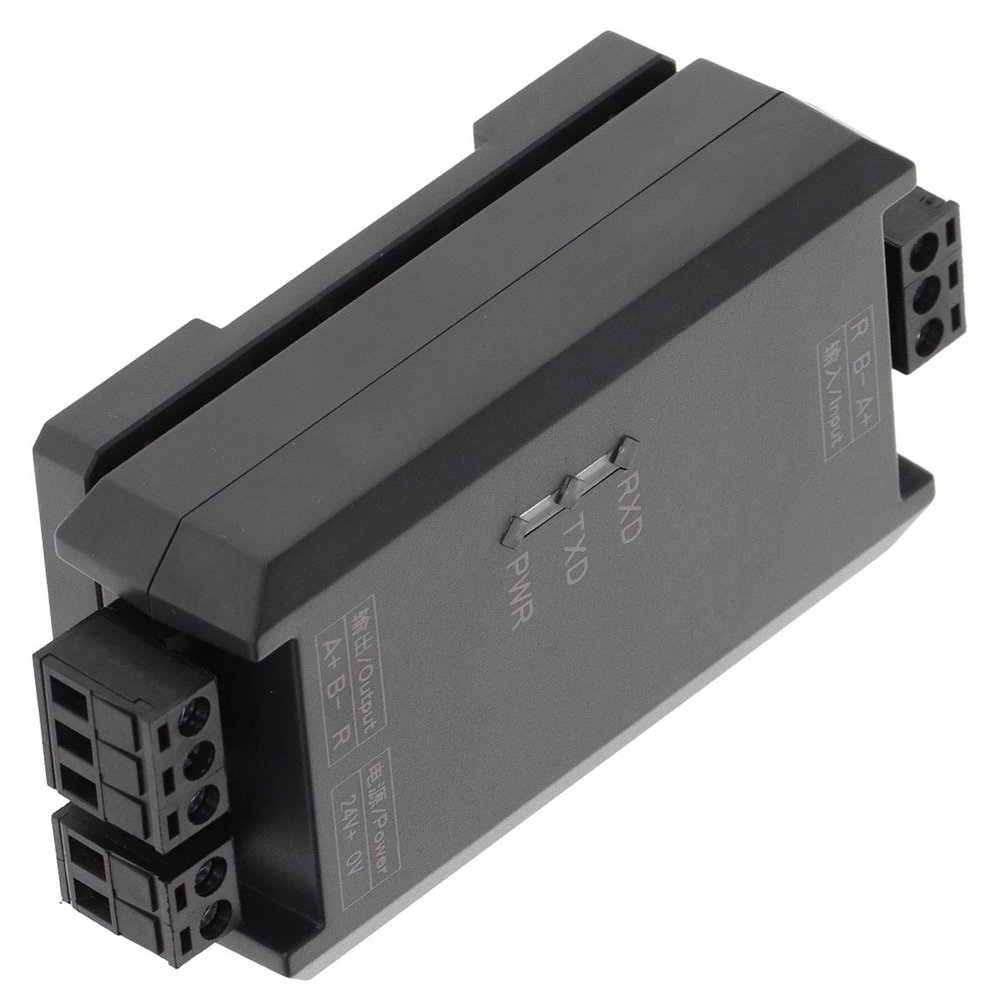

RS485 Distance Extender, Anti-Reverse Voltage 1500V HalfDuplex TwoWay Communication RS485 Repeater for Industrial Field Equipment

Description

• NON-INTERFERENCE:The optocoupler isolates the RS485 masterslave network to assure that the data communication is not affected by the ground loop and the common mode voltage difference.
• INCREASE DISTANCE:Increase the original communication distance by 1200m (at 9600bps).
• It is widely used in the acquisition and control of industrial field equipment.
• BASIC SETTINGS:Builtin DCDC power isolation module, isolation voltage 1500V.
• DATA TRANSPARENTLY:1 way RS485 to 1 way RS485, asynchronous halfduplex, twoway communication, data transmission is completely transparent.

Description

Feature:
1. Designed for industrial automation communication, it is used to extend the distance of RS485 communication equipment in complex and harsh industrial scenes.
2. 1 way RS485 to 1 way RS485, asynchronous halfduplex, twoway communication, data transmission is completely transparent.
3. Builtin DCDC power isolation module, isolation voltage 1500V.
4. The optocoupler isolates the RS485 masterslave network to assure that the data communication is not affected by the ground loop and the common mode voltage difference.
5. Increase the original communication distance by 1200m (at 9600bps).

Specification:

Condition: 100% Brand New
Item Type: RS485 Repeater
Material: Plastic
Model: RS485 repeater
Interface Standard: RS485 terminal block compatible with EIA/TIA
Baud Rate: 0~115200bps (adaptive)
Communication Protocol: Not restricted by software protocol
Communication Distance: Only one repeater is used to extend 1200 (at 9600bps)
Cascade: RS485 interface supports a maximum of 32 nodes (the distance between nodes must be 10m)
Working Voltage: 9V~24V, active design with anti-reverse connection design
Static Power Consumption: 0.6W
Working Temperature: -20~+70
Storage Temperature: -40~+85
Relative Humidity: 5%~95%
Transmission Medium: Twisted pair or shielded wire
Installation Method: 35mmDIN rail
Application Scenario: RS485 to RS485 repeater is suitable for: industrial automation, power acquisition, security monitoring, building intercom, high-speed toll collection, card access control, PLC, parking lot system, and other scenarios that need to extend the communication distance under the 485 bus protocol.
Size: As Shown in the Pictures

Package List:
1 x RS485 Repeater
