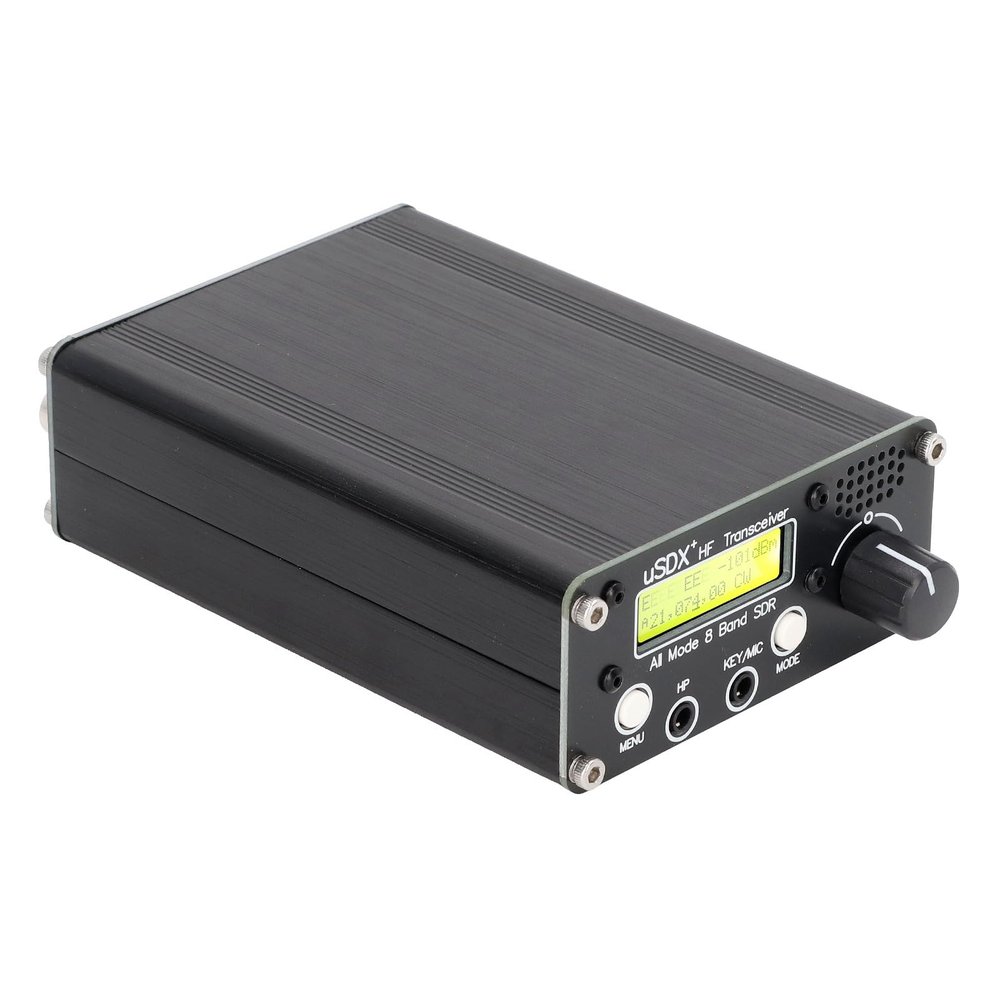

Radio Transceiver 8 Band Radio Transceiver, Radio Transceiver LCD SDR Full Mode HF SSB QRP Transceiver with BNC Antenna Connector (No power)

Description

• RADIO TRANSCEIVER: Shortwave QRP SSB CW radio transceiver, with clear LCD display, support connection to computer, use FT8, JS8, FT4 and other mode software to control digital.
• REASONABLE DESIGN: Headphone and power button and microphone jack are on the front panel for easy connection of headphone and power button, with larger touch area and more comfortable key experience.
• WITH SPEAKER: Upgraded built in speaker effect, stable sound and less interference, fast change of QRP CW frequency, and support CW side volume adjustment.
• HIGH EFFICIENCY: The transceiver has an 8 band design, covering 80m, 60m, 40m, 30m, 20m, 17m, 15m and 10m frequency, which has high efficiency.
• OTHER FUNCTIONS: This radio transceiver has multiple interfaces, with built in speaker with cavity and BNC antenna interface, and all LPF parts use 100v c0g/np0 capacitors.

Item Type: Radio Transceiver
Size: Approx. 83 x 38 x 124mm / 3.3 x 1.5 x 4.9in (excluding protruding parts)
Support All Modes: USB, LSB, CW, AM, FM
DSP Filter: 4000, 2500, 1700, 500, 200, 100, 50hz passband
DSP Functions: Automatic Gain Control (AGC), Noise Reduction (NR), Xmit Voice (VOX), RX Attenuator (ATT), TX Noise Gate, TX unit control, volume control, dbm/s meter.
Sidebar Carrier Suppression SSSSB Transmit: Better Than -45dbc, imd3 (dual Tone) -33dbc, Receive: Better than -50dbc
Support multi-band support, continuously adjustable 10m within 80m frequency range (from 20khz to 99mhz, loss performance)
Software Complexity: 2000 lines of software-based Vovox code can be used for fast full control (QSK and half QSK ) or RX auxiliary switch TX in digital mode (no cat or PTT interface required), using fully digital TX delay stage and based on The software SSB class transmitter externally controls the PTT/PA output, controlling the phase of the sill si5351 (by small frequency changes i2c at 800kbits/s) and the amplitude of the pa (by the pwm pa key shaping circuit)
Software Based All Digital SDR Receiver Stage (Optional): The I/Q (complex) is sampled from the quadrature sampling detector digital mixer, and the 90 degree phase shift is mathematically performed in software by adding Atten sideband
Receiver Noise Floor MDS: -135dbm at 28mhz (200hz bw)
Receiver Receiver Front End Selectivity: +/-2khz Steep 45db/decade Tune Frequency Rollover
Blocking Blocking Dynamic Range: 123db at 20khz offset, 78db at 2khz offset
Battery Model: 606090-3Lion (shipped without battery)
Specification:11.1V(12.6V)/4000mAh
Size:93*60*18mm/3.7*2.4*0.7in

Package List:
1 x Transceiver
1 x Microphone
4 x Machine Foot Pads
or
1 x Transceiver
1 x Microphone
1 x Charger
