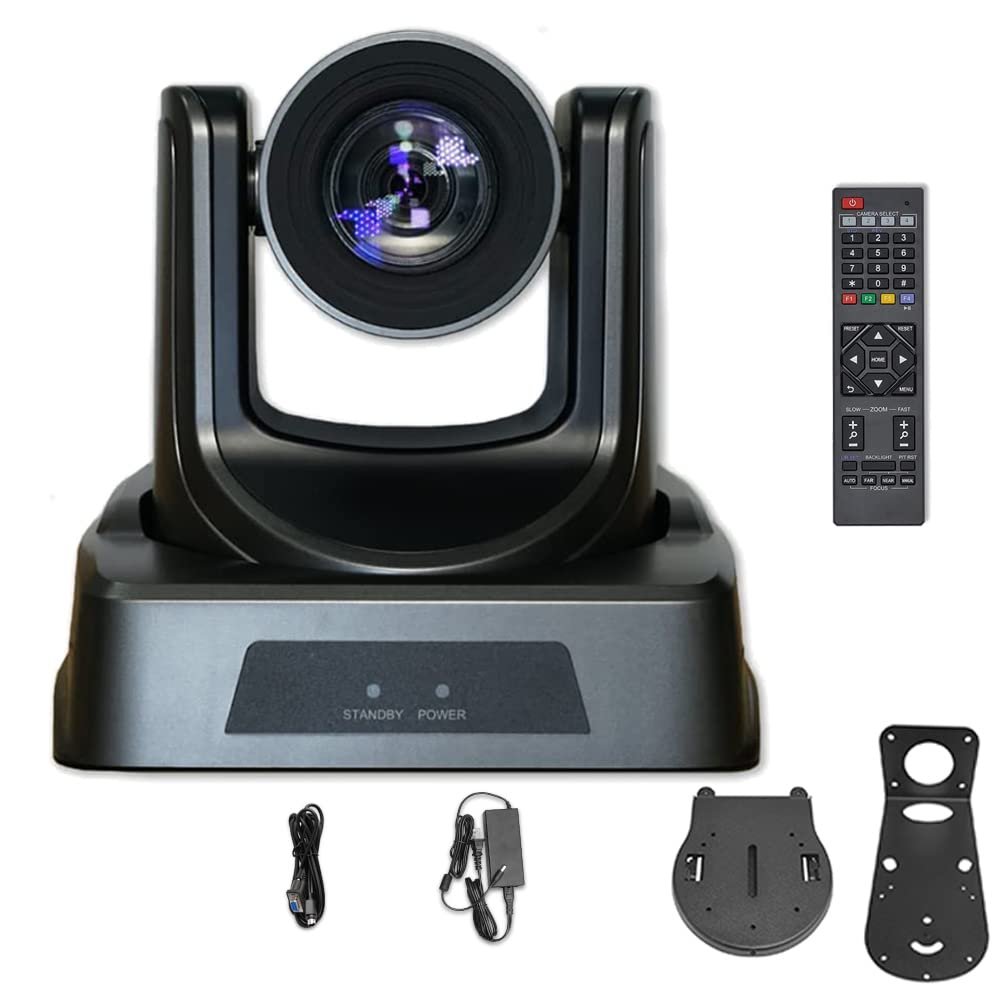

PTZ Cameras,20X Full HD Live Streaming Video Camera,SDI/HDMI/IP Outputs for School/Church/Events Services

Description

• Use high quality super telephoto lens, supporting 20x optical zoom, and 16x digital zoom.
• Support H.265 encoding, enabling full HD 1080p/60fps video stream by ultra-low bandwidth, lag-time within 200ms.
• Applying 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, reach maximum 1920 x 1080 high resolution and achieve quality image.
• Support 3G-SDI interface, effective transmission distance up to 150 meters (1080p30). SDI, Network can output at the same time.
• PoE Support

Video ;1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50. Sensor ;1/2.7'', CMOS, Effective Pixel: 2.07M Scanning Mode ;Progressive Lens ;20x, f4.42mm 88.5mm, F1.8 F2.8 Digital Zoom ;16x Horizontal Angle of View ;60.7 3.36 Vertical Angle of View ;34.1 1.89 Minimal Illumination ; 0.5 Lux @ (F1.8, AGC ON) Shutter ;1/30s 1/10000s Ceiling Installation ;Support Video Compression ;H.265/H.264/MJPEG Video Stream ;Main Stream, Sub Stream Main Stream Resolution ;1920x1080, 1280x720, 1024x576,960x540,640x480,640x360 Sub Stream Resolution ;1280x720, 1024x576(50Hz ),720x480(60Hz ),720x408,640x360, 480x270,320x240 Video Bit Rate ;32Kbps 20480Kbps Bit Rate Type ;Variable Rate, Fixed Rate Frame Rate ;50Hz: 1fps 25fps, 60Hz: 1fps 30fps Audio Compression ;AAC Audio Bit Rate ;96Kbps, 128Kbps, 256Kbps Support protocols ; TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc. HD Output ;1x3G SDI: BNC type, 800mVp p, 75, Along to SMPTE 424M standard Network ;1xRJ45:10M/100M/1000M adaptive Ethernet ports Audio ;1 ch: 3.5mm Audio Interface, Line In ,1 ch: 3.5mm Audio Interface, Line Out Communication ;1xRS485:Max Distance: 1200m, Protocol: VISCA/Pelco D/Pelco P Power Connector ;JEITADC IN 12V PoE ;Support Input Voltage ;DC 12V Packing list ;V60CL*1, remote*1, power adapter*1, US power cable*1, Ceiling mount bracket*1, Wall mount bracket*1, RS232 cable*1, User manual*1
