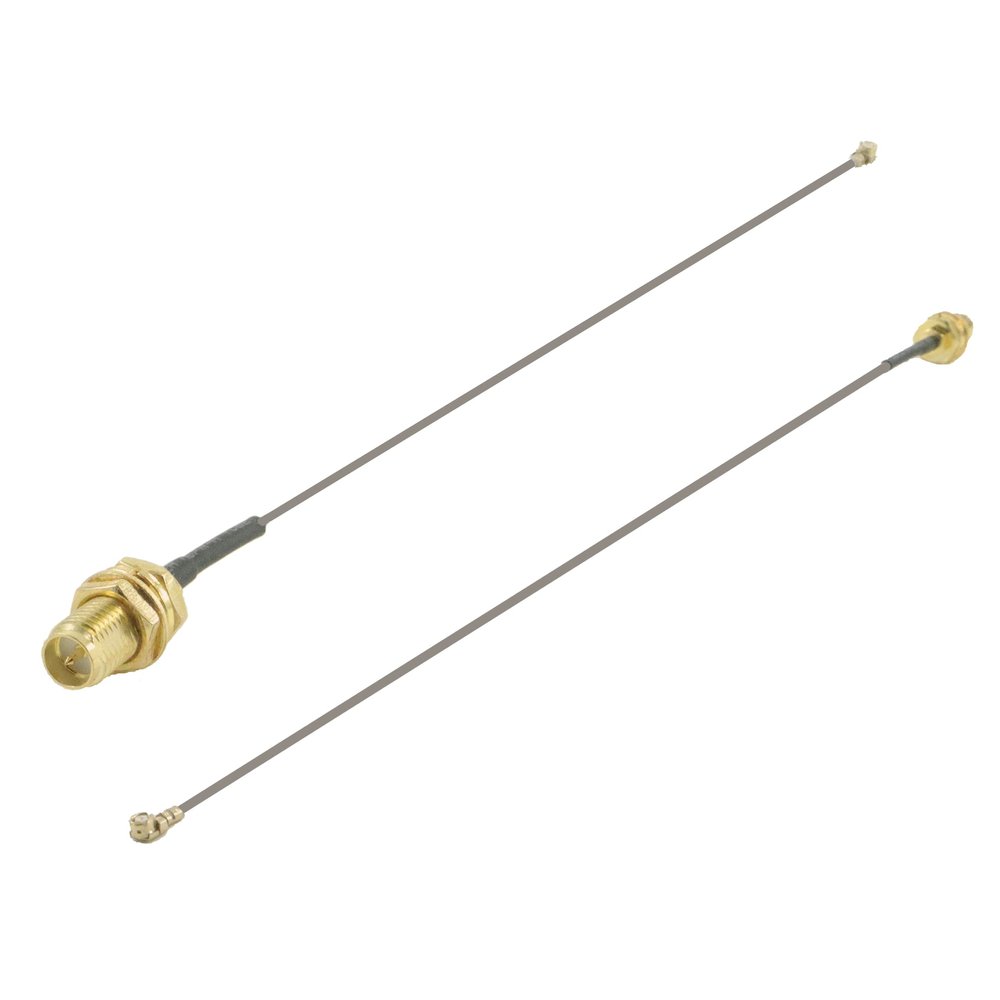

Proxicast 8 inch U.FL (IPEX) to RP-SMA Female Ultra Low-Loss 1.37mm Coaxial Pigtail Jumper Cable for Wi-Fi, Bluetooth, ZigBee, LoRa, Helium & other Radio & Antenna Systems - 2 Pack (ANT-105-RPSMA-2PK)

Description

• U.FL (I-PEX MHF1) MALE for Mating with Female RF Connectors on PCI, PCIe, mPCIe, and other circuit boards
• RP-SMA FEMALE BULKHEAD JACK for Connection to External Antennas or Other Wireless Equipment
• ULTRA LOW-LOSS Thin & Flexible RF1.37mm 50 Ohm Coax - 8 inches (20 cm) - Best for High Frequencies
• SOLID SILVER-PLATED COPPER CORE, GOLD-PLATED PINS and TINNED COPPER SHIELDING Minimize Signal Loss
• Not for use with M.2 (NGFF) sized expansion cards or modems - those typically use the MHF4 connector interface

This short high quality coax jumper cable is used to connect external RP-SMA Male devices such as antennas to RF radio sources which have circuit board-level surface mounted Hirose U.FL (I-PEX MHF1) connection points.
Common applications include WiFi access points, PCI expansion cards, routers, software defined radio (SDR) systems, Bluetooth, ZigBee, Helium, LoRa and others.
This adapter cable is made with RF1.37mm diameter coax which has lower signal loss (attenuation) at high frequencies than most other micro-coaxes, yet is thin and flexible enough for most applications. Its 8 inch length gives you lots of flexibility for routing the cable inside around tight spaces in your chassis without sacrificing performance.

Specifications
Frequency Range: DC to 6 GHz
Connector 1: Standard U.FL
Connector 2: Standard Reverse Polarity SMA Female Straight
Pins: Gold-Plated
Cable Type: RF1.37 mm
Cable Length: 8 inches (200 mm)
Impedance: 50 Ohm
VSWR: <1.5:1
Rated Voltage: AC 60V
Withstand Voltage: AC 200V
Insulation Resistance: 500M Ohm minimum/DC 100V
RoHs Compliaint: YES
Operating Temperature: -40 to +85
