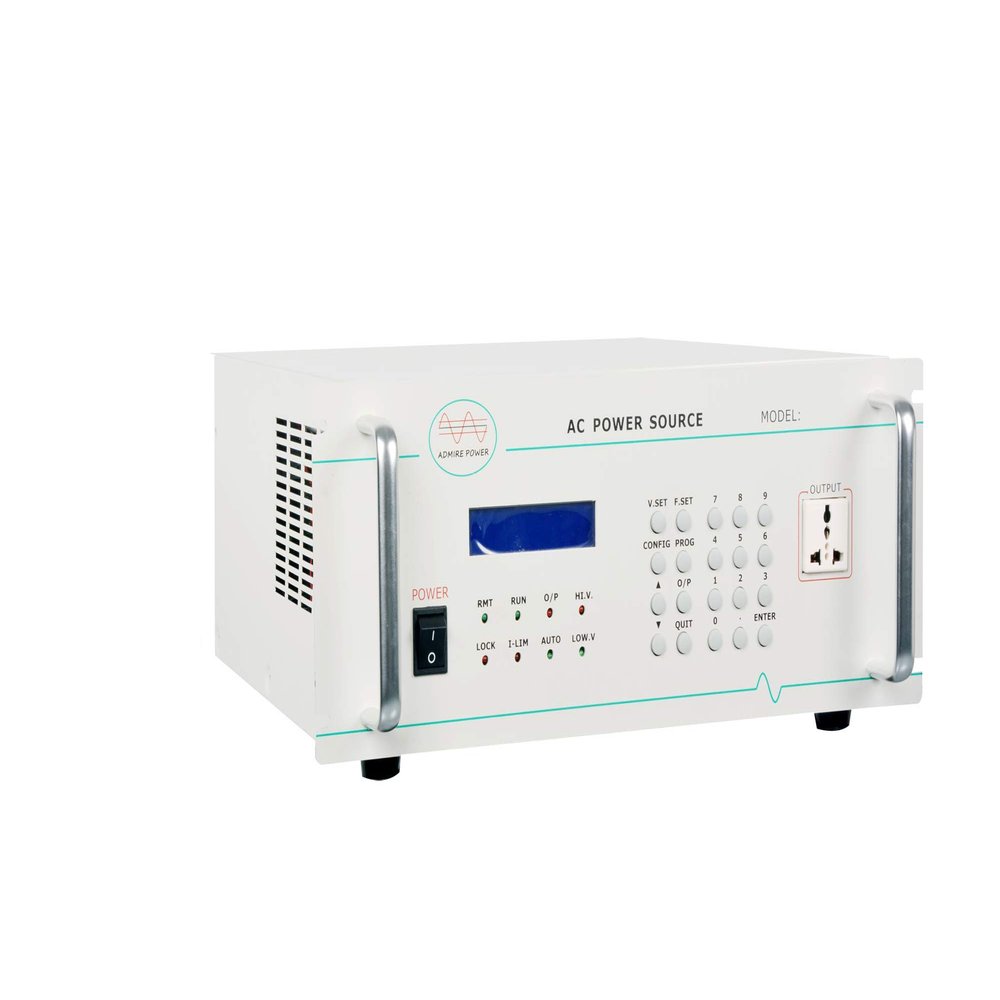

Precision 0-150V,0-4A AC 500VA Power Supply Digital Regulated Lab Grade with R485

Description

• IGBT/SPWM pulse width modulation method
• Distortion rate 1% Stabilization rate 1% Frequency stability 0.01% ,Crest Factor Ratio can reach 3.5:1
• Can perform 10 sets of different voltage, frequency, and time settings at a time, and can continuously perform cycle tests (LCD display).
• RS232 or RS485 interface, can communicate with the computer, there are five serial baud rate options.
• Can choose to use voltage analog (0~5V) or current analog (4~20mA) to control the power output

QLA1000 Power Supply Fature
- AC to AC 500VA
- Input :110V/220V10% @ 50/60Hz 5% (default 110V)
Out Votlage: AC 0-150V
Output Current4.2A ,
Output Frequency:50Hz 60Hz 47~63Hz
Frequency stability0.01% ,
Waveform Distortion: 1% (full load2%)
Load Regulation1%,
Measurement SPEC
- True RMS Voltmeter0.1V 0.2% reading 0.3% Full scale 2c0.1%/100Hz
- True RMS Current meter1mA/10mA 10mA/100mA Auto Range 0.4% reading 0.3% Full scale 3C0.1%/100Hz
- Frequency Table0.01Hz/0.1Hz Auto Range 0.1% reading 2C0.05%/100Hz
- Power meter0.1W/1W 1W/10W 10W/100W Auto Range 0.2% reading +/0.2% Full scale 5C(at 50/60Hz)
- Power Factor meter0.001 0.001
- Protection: With overload, over current, over temperature, short circuit, under voltage protection and alarm
- Operating Temperature: 0 - 102 F (0 -40 C)
- Relative Humidity: <90%

- 12 Months Warranty
Package Content - 1 x Star power Power Supply APA1000 - - 1 x AC Power Cable
