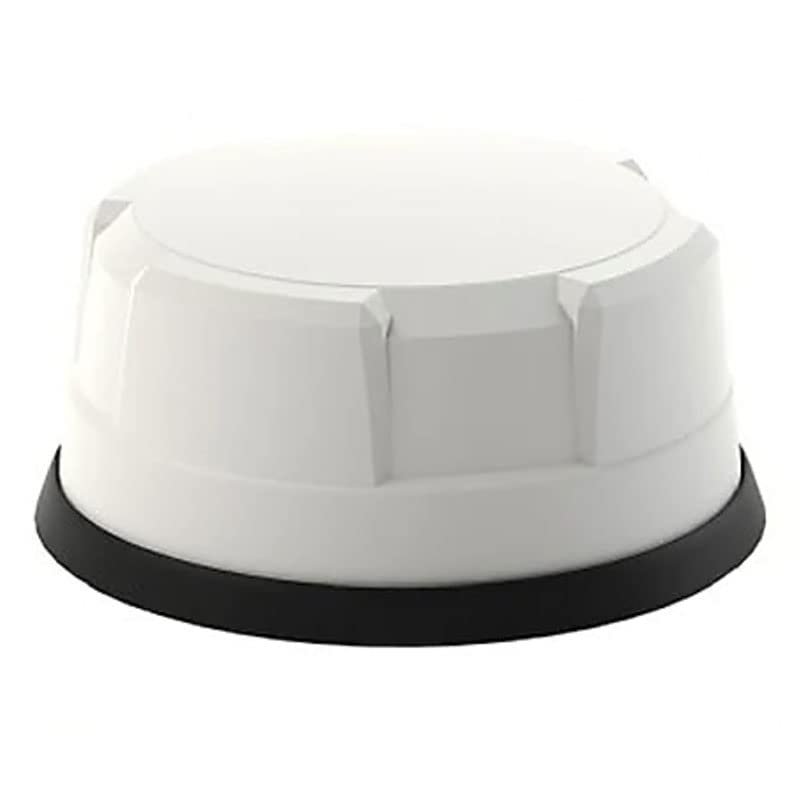

Panorama Antennas MAKO 5G Low Profile 4x4 4G/5G MiMo, 4x4 MiMo Dual Band WiFi, GPS/GNSS Active Dome Antenna, 1ft Cables, SMA/FME, Panel Mount - White - LGMQM4-6-60-24-58

Description

• Frequency Range (MHz) / Peak Gain: 4G/5G Elements 617-960MHz 4dBi, 1710-3800MHz 8dBi, 4900-6000MHz 9dBi / WiFi Elements: 2.4 GHz 9dBi 4.9-6 (7.2)GHz 9dBi / GPS/GNSS Frequency Range (MHz): 1562-1612 / Gain: LNA 26dB
• Designed for latest generation LTE Cat 18/20 routers and devices
• Ground Plane Independent | Suitable for Conductive or Non-Conductive Surfaces
• Mounting type: Panel mount / Max panel thickness: (mm)7 (0.27) / Mounting hole (mm)19 (3/4)
• All Cables Type: RG174 -FR (UN ECE R118 Compliant) / Diameter (mm)2.8 (0.1) / Length (m)0.3 (1) / Terminations 4G/5G: SMA (m), WiFi SMA (f), GPS/GNSS FME (f)
• Flame retardant cables compliant to UNECE R118

The MAKO 5G Dome consists of 9 elements; 4x4 isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, 4x4 dual band elements covering 2.4 & 5.0/7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.
The MAKO 5G Dome is a range of high-performance 4x4 MiMo antennas covering 617-960/1710-6000MHz with GPS/GNSS and Wi-Fi 4x4 MiMo/Diversity at 2.4/5.0/7.2GHz
Please Note: This antenna is not intended for use with a router that has 2 SIMS to provide concurrent or aggregated data operation, as there is not sufficient isolation between the MiMo pairs.
