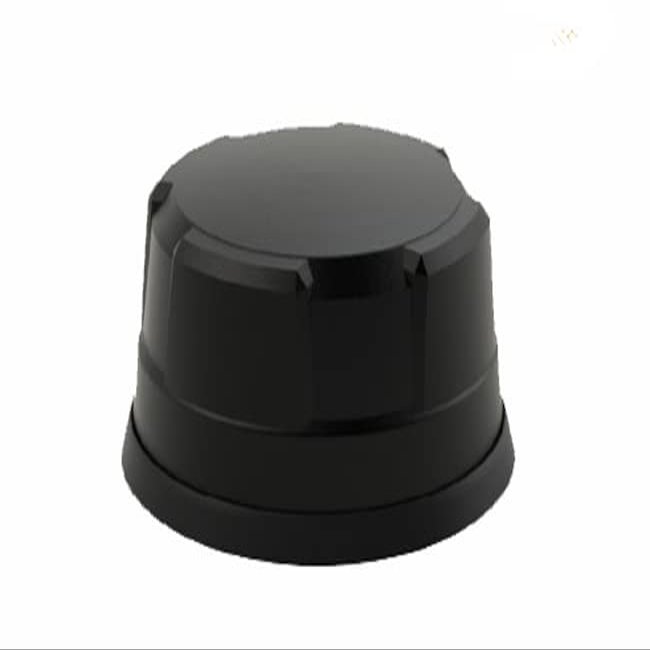

Panorama Antennas 11-in-1 4x4 MiMo LTE/5G, 6x6 MiMo Dual Band WiFi and GPS/GNSS Active Dome Black Antenna for Cradlepoint

Description

• The LG-IN2447 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS and 6x6 MiMo WiFi 2.4/5.0GHz in a compact low profile housing.
• Suitable for Cradlepoint COR IBR1700 Series Routers
• 4G/5G Elements: 617-960MHz 4dBi, 1710-3800MHz 8 dBi & 4900-6000MHz 9dBi
• WiFi Elements: 2.4 GHz 9dBi & 4.9-6.0GHz 9dBi
• GPS/GNSS: Frequency Range (MHz) 1562-1612 Gain: LNA 26dB
• Cable Type: Cellular/Wi-F CS32 (UN118.03 / EN45545-2 Compliant), GPS/GNSS: FR CS29 (UN118.03 / EN45545-2 HL2 Compliant)
• Cable Length: 5m (17') all cables
• Mounting type: Panel mount, Max panel thickness (mm) 7 (0.27) & Mounting hole (mm) 19 (3/4
• Ingress & Impact Protection: IK10 & IP69K
• Terminations: 4G/5G 4x SMA (m), WiFi 6x Reverse Polarity SMA & GPS/GNSS 1x SMA (m)

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection. The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference. LG-IN2447 is supplied as a complete plug and play kit with integrated 5m (16) ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS and Rev Pol SMA for WiFi.
