Nvcm Usb Interface Cnc Motion Controller Nvcm 3 Axis 4 Axis 5 Axis 6 Axis Cnc Motion Control Card Metal Case Does Not Heat - Motor Driver - - (Voltage: 5axis)

Description

• Voltage: 5axis

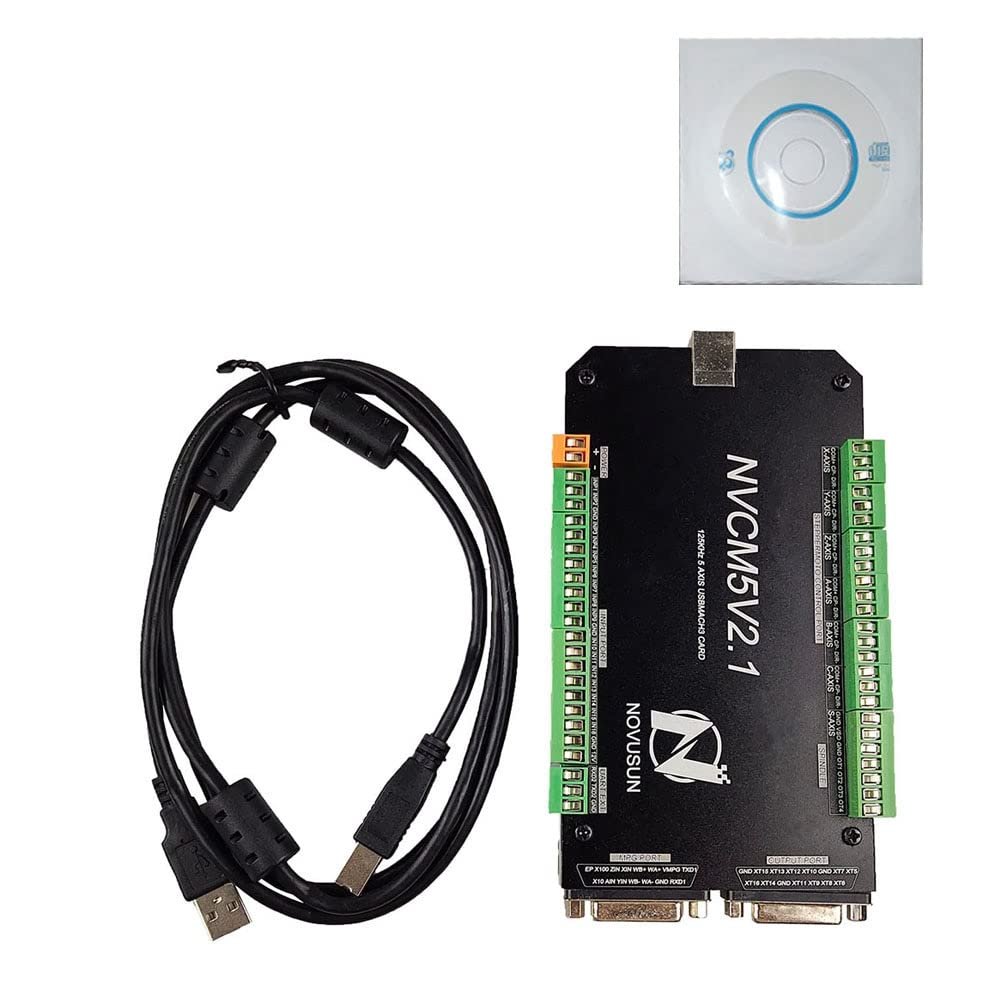

product Contents:
Control card*1
USB signal cable*1
CD*1
Product introduction:
NVCM is the 6 axis motion controller we spend 1 years to design.
NVCM support software, through USB port to communicate with computer.
Performance parameters:
Support USB.
16 ports photoelectric isolated input interface
16 ports photoelectric isolated output interface
1 port 0-10V spindle speed analog output interface(can change to PWM output)
can support 6 axis stepper systems maxisim,125KHz pulse output for every axis
ARM motion control chip
main device is 12V-32VDC power supply input,current should higher than 1A
Appearance and size
NVCM motion controller is with the sealed open structure, there are 4pcs setting holes at
the bottom. We can fix 2pcs 3mm diameter holes at the cabinet, and install the controller into the
cabinet.The controller appearance as the Figure 1-1 and Figure 1-2 show:
The products overall size is 150mm*84mm*20mm
The bottom install size is 125.5mm*71.5mm
Power scheme:
Wiring definition:
1. USB port
2. Main power input
3. Limit/Home/Estop/Probe input port
4. Serial expansion interface
5. MPG port
6. Universal output interface 2
7.Spindle control output/ Universal output interface 1
