Motion Control Card,USB Breakout Board,USB MACH3 100Khz Motion Controller Card Breakout Board, CNC Breakout Interface Board for CNC Engraving

Description

• ??CNC Woodworking Processing Motion Control Card 4-axis linkage control, full support of MACH3 function, high-precision motion control module, used for CNC processing, 3D printers, engraving machines and other equipment.
• ??4-Axis Motion Control supports up to 4-axis control, and the 4th axis can be set as a slave axis.
• ??High-Precision Operation Control output pulse 100K, using minimum error interpolation algorithm, high processing accuracy.
• ??Wide System Compatibility USB interface, applicable to any PC compatible computer such as netbooks, notebooks, desktops and tablets with USB interface.
• ??Multi-Function Support 1. Automatic return to the origin (zero return); 2. Automatic leveling of the driven shaft when returning to the origin; 3. Emergency stop input; 4. Limit switch access; 5. Spindle control (PWM mode and relay Mode); 6. 4 channels with optocoupler isolation digital input, etc.

Features: Support for limit switch. Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable. Have 0-10V output port, you can use MACH3 software to control the spindle motor speed. 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device. 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device. Status LED, indicate connection status on the board.

Specification:
Interface board size: 9*6.3*2cm/3.5*2.5*0.8in
Jog handler size: 10*6*2.5cm/3.9*2.4*1in
Weight: Approx.200g/7.1oz

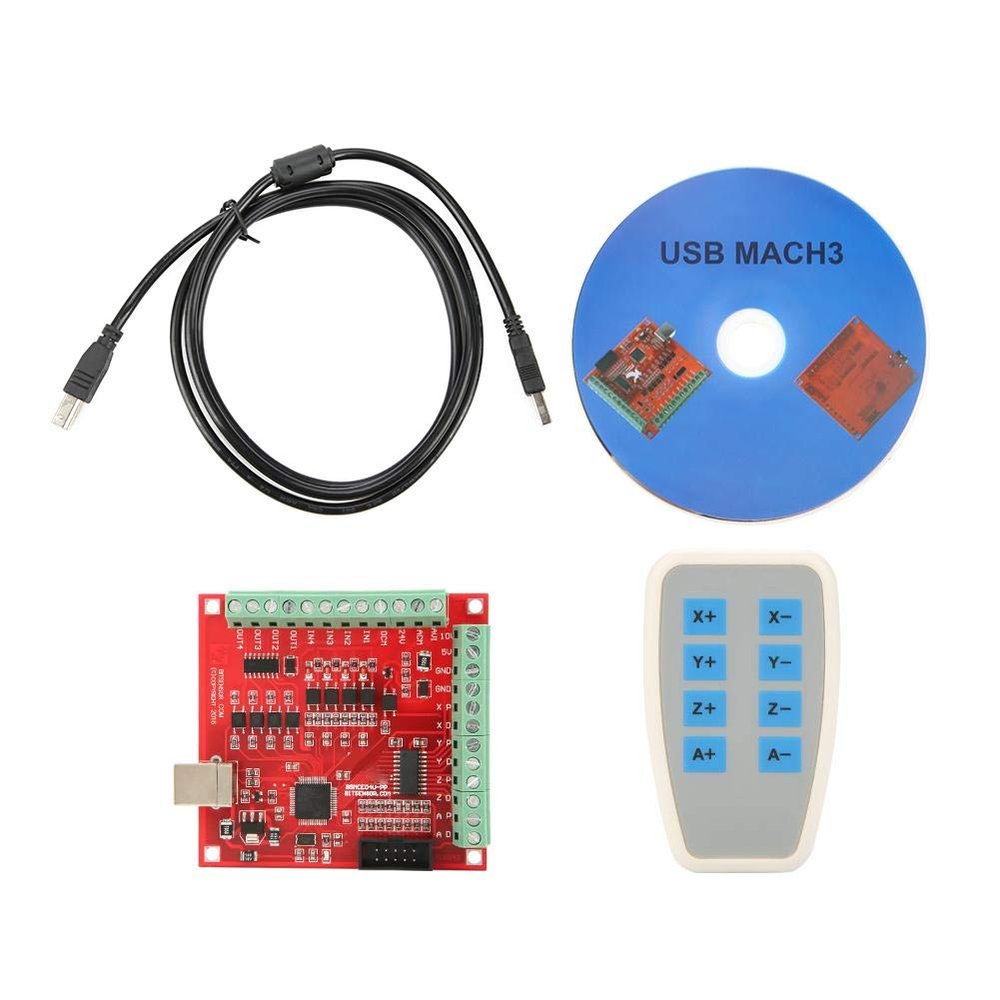

Package list:
1 x USB CNC Controller Card
1 x jog handler
1 x USB cable
1 x CD
