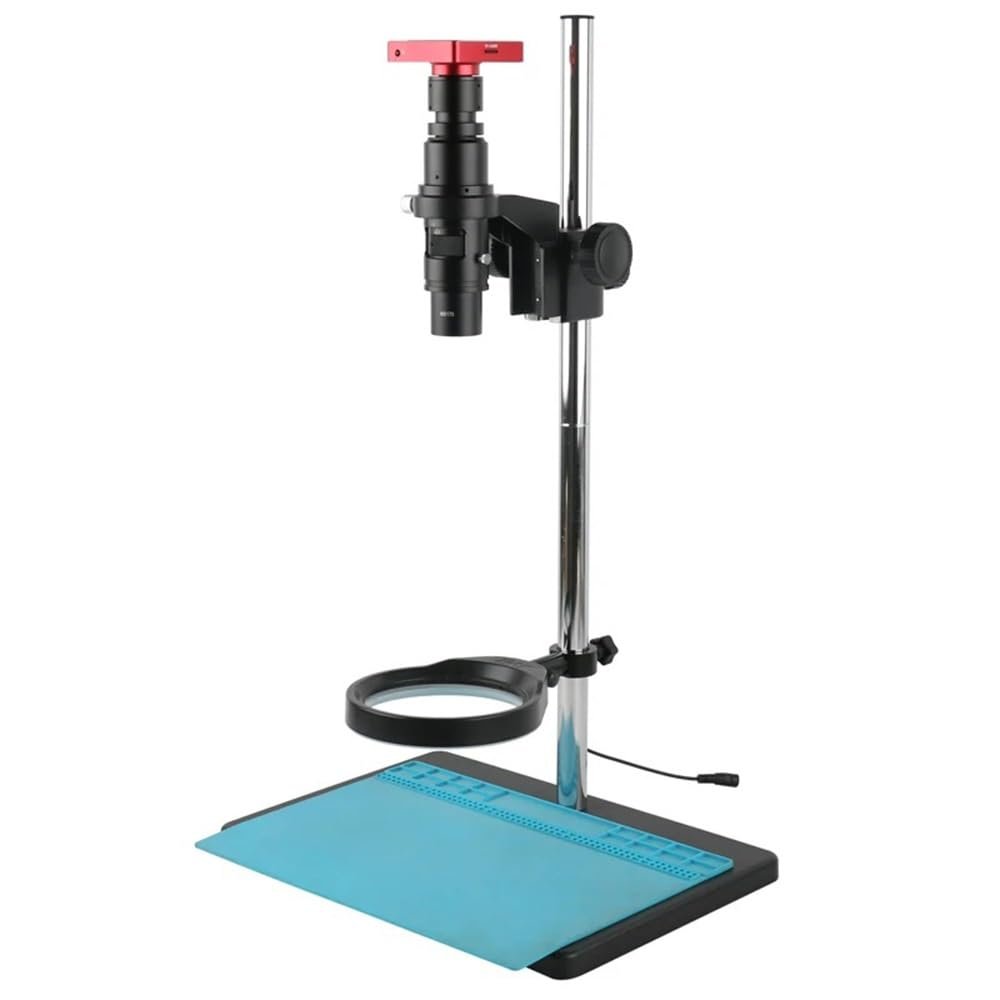

ZTBH Microscope Accessories Kit HDMI USB VGA 1080P 37MP 48MP Industry Video Microscope Camera + 105X 160X FHD 0.7X-5X Zoom C Mount Lens Large Field View Microscope Slides (Color : 37MP HDMI USB 105X)

Description

• Industry CMOS Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
• It builds in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative; Supply USB2.0,HDMI HD video,Two output.
• Professional and practical design with beautiful appearance, easy to carry and use.
• Usually used in laboratories, schools, teachers, sample observation, eyepiece protection, etc.

Industry CMOS Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
It builds in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative
Supply USB2.0,HDMI HD video,Two output

Specification:
Frame rate: 1920*1080@60FPS
Housing: Aluminium alloy
Pixel size:1.43m 1.43m
Output:USB, HDMI, TF card, remote control
Sensor size:1/2.3"
Power:DC-12V/1A
Features
Basic function:Brightness, contrast, saturation, white balance,
black and white switching, date adjustment
Image adjustment:Exposure, Flicker restrain, Acutance,
Gamma, Cb/ Crgain adjustment
Camera function:Digital zoom, Horizontal/
vertical mirror, image freeze
Storage:Image capture,video, image preview, TF card formatting
Reticle:4 sets of reticle, can define the
color, line, displacement, and hidden
Crosshair:Can adjust color, line size, hide or display
White balance: Auto/manual
TF card interface: Max 64G
HDMI interface: Standard HDMI output
HDMI Image resolution: 8168*6128 4:3(50MP) 8168*4592 16:9(37MP) (for TF Card),
USB Image resolution: 1920 *1080 (for PC USB)
Video resolution: 1920 *1080 @ 60FPS for HDMI, 1920 *1080 @ 30FPS 1280*720@ 30FPS 640*480 @ 30FPS 320*240 @ 30FPS for USB
Video format: MP4
Image format:JPG
Color: Color/black and white
Freeze: Support
Exposure:Auto/manual
Camera Interface:C CS Mount
EV:+/-
Remote operation:Yes
Language Support :Chinese English French Spanish Portuguese German Italian Simplified Chinese Traditional Chinese Russian Japanese
Feature
160X Working distance:210mm -480mm
105X Working distance:175mm -3000mm
Connector:CS C mount
Zoom:continouasly variable zoom
Objective Magnification:0.7X - 5X
Fixed position:50mm
Locking:0.7X - 5X Locking
Size:166mm(L) * 59mm(DIA)
Product features
1.LED microscope lamp with high
