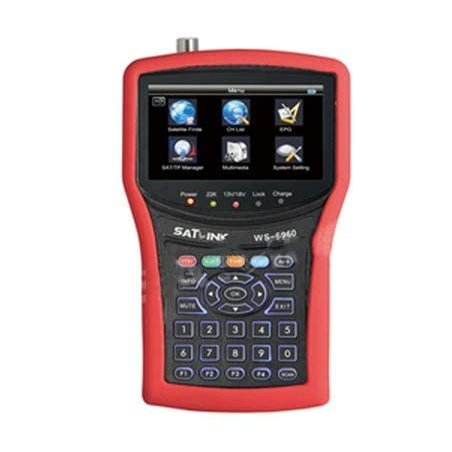

MeterTo Digital 4.3" LCD Satellite Finder Satellite Meter Detector WS-6960 DVB-S/S2 Compliant Terrestrial Signal Meter Receiver 9502150MHz -65-25dBm 2Mband(SCPC/MCPC) Video Audio Encoding USB

Description

• Input Impedance 75; Constellation analyzer;
• Measurement Type: signal strength,quality, BER, S/N,PWR, MER; Search Mode: Auto,Blind,Manual,NIT;
• Sound and Light Alarm for Locking Signal; Auto Calculate Angle of AZ ,EL;
• Support DISEQC 1.0,1.1,1.2 and 22khz Tone; LNB Power Supply:18/13V(IMax 400mA);
• Support both AV out and AV in; Speaker Integrated; 7.4V/3000mAh Li-Ion Battery Included.

MeterTo
MeterTo mainly offers instruments and tools.
Please confirm the product is offered by our store MeterTo when purchasing,
otherwise we can't ensure the quality and after-sale service.

Specification
Model: WS-6960
System Capabilities: Fully DVB compliant

Satellite Input/ Demodulation
Connector Type: F Type
Input Frequency: 950 to 2150 MHz
Signal Input Level: - 65 to -25 dBm
Band Switch Control: 22KHz
LNB Supply: 13V/18V, IMax 400mA
Demodulation Type: QPSK,8PSK
Symbol Rate: 2Mband(SCPC/MCPC)

LCD Features
LCD Type: TFT TRANSMISSIVE
Number of Dots: 480(RGB)x272
Active Area (W x H): 95.04x53.86mm2

AV Output Interface
Connector Type: 3.5 mm jack
Video Output: CVBS
Audio Output: Stereo Audio L/R output

AV Input Interface
Connector Type: 3.5 mm jack
Video Input: CVBS
Audio Input: Stereo Audio L/R input

Data Service Port
Connector: USB
Data Protocol: USB2.0 interface File Management System: NTFS, FAT32, FAT16
File format: wma,mp3,mp4,avi,jpg,jpeg,bmp,img

Microprocessor
Microprocessor: 78326SZ
Clock Frequency: 550MHz
SDRAM Memory: DDR2 512Mbit

Power Supply
Li-Ion Battery: 7.4V/3000mAh

Adapter
OUTPUT: DC12V/1.5A INTUPT: 100-240VAC 50/60Hz
Power consumption: Max. 10W

Size: 125x205X45(mm)
Weight: 0.66KG
