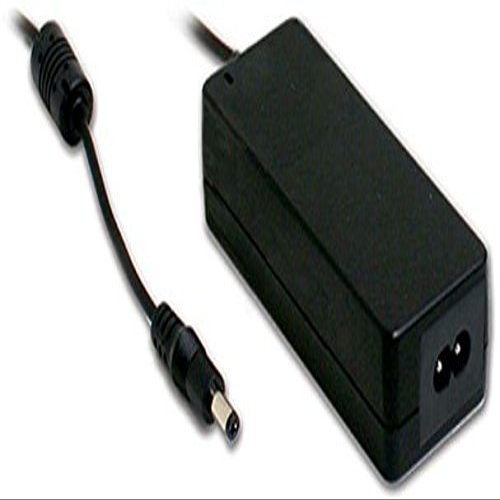

Meanwell GSM40B05-P1J External Power Adaptor - 25W 5V 5A

Description

Features:2 pole AC inlet IEC320-C8 , Class II power unitMedical safety approved (2 x MOPP) accroding to ANSI/AAMI ES60601-1 and IEC/EN60601-1Extremely low leakage currentNo load power consumption 90K hours3 years warrantyGeneral Specification:AC input voltage range: 80~264VAC 113~370VDCAC inrush current (Typ.):Cold start 30A/115VAC 60A/ 230VACAC adjustment range: 5V: 0~5A, 7.5V: 0~5.34A, 9V: 0~4.45A, 12V: 0~3.34A, 15V: 0~2.67A, 18V: 0~2.22A, 24V: 0~1.67A ,48V: 0~0.84AOver voltage protection: 5V: 5.2~7V, 7.5V: 7.8~10.2V, 9V: 9.4~12.2V, 12V: 12.6~16.2V, 15V: 15.7~20.3V, 18V: 18.9~24.3V, 24V: 25.2~32.4V ,48V: 50.4~64.8V, Protection type : Shut down o/p voltage, re-power on to recoverOverload protection: 105 ~ 160% rated output power,Protection type :Hiccup mode, recovers automatically after fault condition is removedWithstand voltage:I/P-O/P: 4KVACWorking temperature: -30~ +70C (Refer to "Derating Curve")Safety standards:IEC60601-1, EN60601-1/,EN60601-1-11, ANSI/AAMI ES60601-1/ EN60601-1-11(3.1 version), PSE J60950-1,KC K60950-1, CAN/CSA-C22.2 No.60601-1:14-Edition 3, EAC TP TC 004 approvedEMC standards: EN55011 (CISPR11), FCC PART 15/ CISPR22,CAN ICES-3(B)/NMB-3(B), MSIP KN32 Class B, EN61000-3-2,3,EN61000-4-2-3,4,5,6,8,11Isolation resistance:I/P-O/P :100M Ohms/500VDC/25C/70% RHDimension (LxWxH) (mm):125x 50x 31.5
