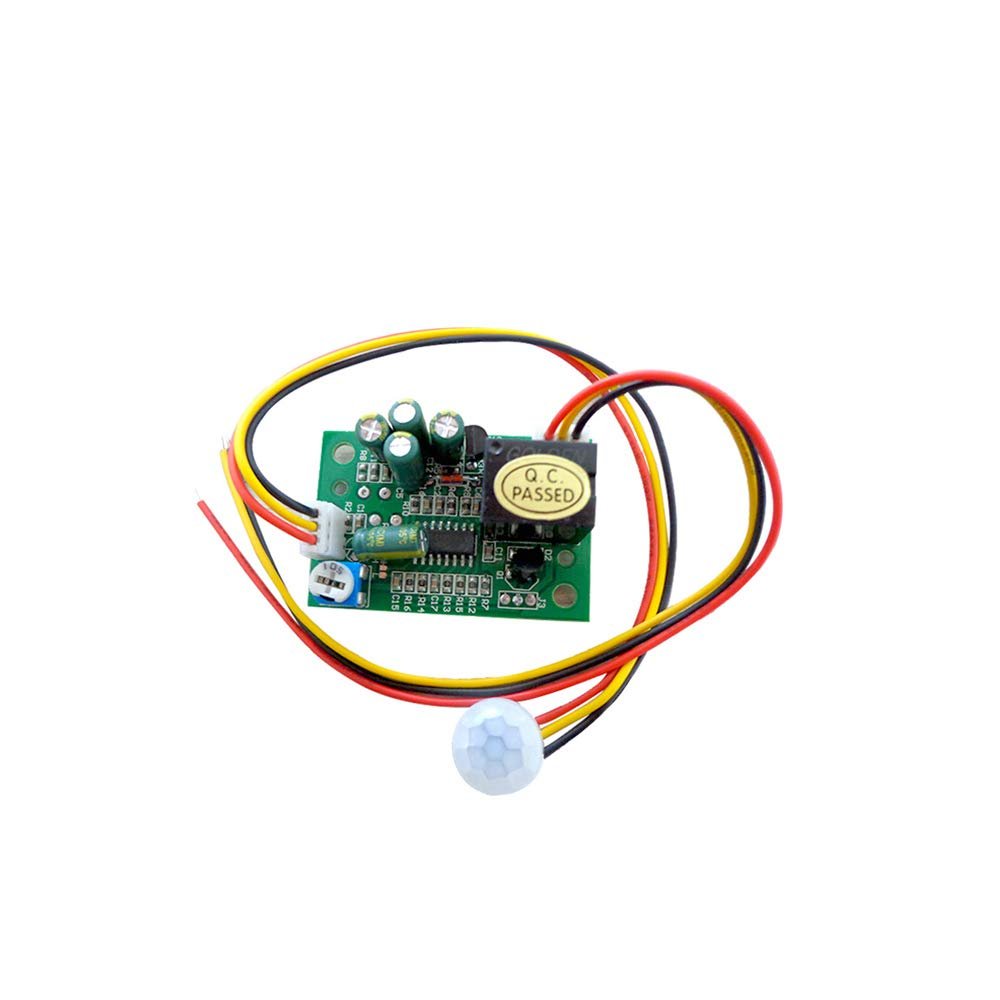

KOOBOOK 1Pcs PIR IR Pyroelectric Infrared Module Adjust Relay Output Human Body Sensor DC12V Range 5-8M

Description

• When someone enters switch sensing range, special sensors to detect changes in the human body infrared spectrum, switch automatically switches the load, do not leave the sensing range (who are active), the switch will continue to turn; person left, switch off automatically load delay. People to light, people from the lights out, kind convenient, safe energy.
• Bipolar design: three-wire connection.
• Adjustable delay time, ultra low power.
• Relay switch: can withstand high current output, high power load.
• It is suitable for automatic lighting of corridors, bathrooms, basements, warehouses, etc., automatic ventilation of exhaust fans, and automatic control of other electrical appliances.

Specifications:
Operating Voltage: DC12V
Ambient Temperature:-15 to +45
Quiescent Current: 5MA
Output current:10A
Load Range: Various types of DC LED lamps, load
Wiring method: red / yellow - positive input, black - negative common
Output mode: sensing output
Light control range: none
Adjustable delay time: 15 seconds -360 seconds
Default time: 15seconds
Induction: Passive
Induction Angle: About 140 degrees Cone angle
Sensing Distance: 5 to 8m
Switch size: 45*30mm
Probe diameter: 12mm

Note:
Manual measurement, with small error. Please check size in detail before purchase.
Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness.

We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.

Package Includes: 1Pcs
