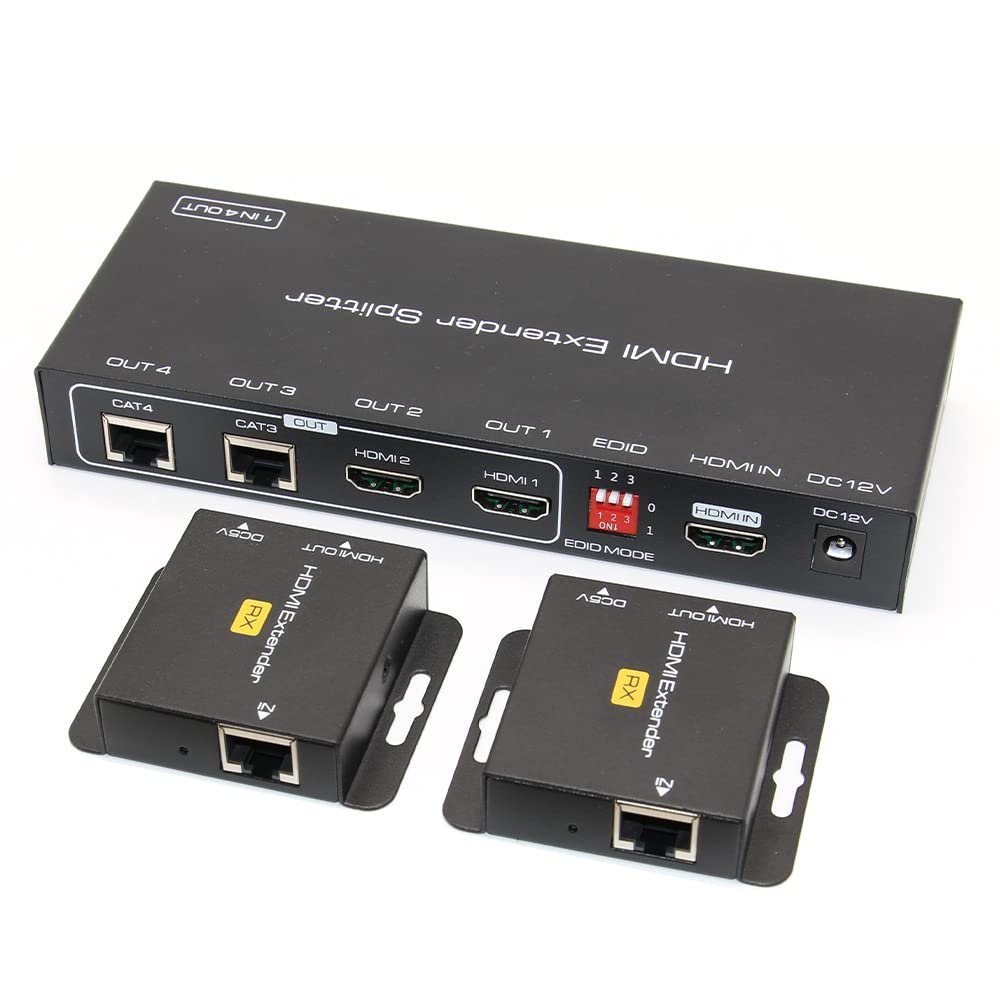

HDMI Extender Splitter, 1080P@60Hz 1X4 HDMI Extender Over Ethernet Multiple receivers hdmi to ethernet Splitter multiport hdmi Extenders EDID Presets 50M POC (1X2)

Description

• 1.Adopt EDID management: According to different application requirements, TX supports a variety of EDID preset solutions, 1X2 supports 8 EDID management modes, 1X4 supports 7 EDID management modes, improves the compatibility of equipment, and better matches the signal source and display. Get the most suitable video and audio signal.
• 2.The latest POC technology: using POC technology, CAT6 power supply, we only need to use the power supply from the TX end, and the RX can work through the transmission of power through the network cable. (Note: TX must be connected to a 12V power supply, otherwise it may cause damage to the equipment.) (Only Need TX Power For Work)
• 3.CAT5e/6/7 HDMI extender splitter: HDMI extender splitter can split an HDMI signal into four identical signals, running up to 165 feet through CAT6/7 cable (copper core wire is recommended), remote audio and video An indispensable extender for extension.
• 4.Lossless transmission, no compression, no delay: support resolutions up to 1920x1200@60Hz and 1080p@60Hz. Support audio format: PCM/DTS/Dolby-AC3/DSD. Suggested length: Cat6/7--165 feet, Cat5e--130 feet, Cat5-100 feet.
• 5.Intelligent balance management: The chip has built-in automatic algorithms, no need to manually adjust the receiver's balance settings, compatible with cable transmission distance, and make PCs, DVD players, PS4, PS5, TV boxes, etc. more stable.
• 6.Plug and play, convenient and efficient to use.It can be widely used in education, digital signage, churches, classrooms, meeting rooms, projects, games, video conferences, subways, multimedia home theaters, etc.

This HDMI UTP splitter reliably sends the High Speed ??1080p signal over just a single Cat5e/6 cable! This not only reduces costs, but reduces the hassle of running two cables. The splitter takes a single HDMI input and sends the signal over up to two Cat5e/6 cables to separate locations. Two HDMI receiver units are included to decode the signal at the other end and connect to the HDMI input of your display.
c1)there are 2 options, one is HDMI 1X2 splitter extender and one is HDMI 1X4 splitter extender.
2) quaflied cat5 and above cable is needed(the ethernet cable must come with copper conducrtor).
Same characteristics:
1. Support 480i/P, 576i/P, 720P, 1080i/P, 1920x1200 resolution.
2. Support 3D video format.
3. Support the host to supply power to the receiving end through the network cable.
4. Lossless transmission, no compression and no delay.
5.DC 12V DC power supply.
HDMI 1X2 with loop
1. Support one HDMI input, output to four display devices at the same time, 2 HDMI output, 2 network port output.
2.The 2-channel RJ45 is connected to the receiving end through a CAT5e/6 network cable, and the transmission distance can reach 50 meters.
3.8 kinds of EDID management modes.
Ports on TX:
HDMI input X1
HDMI loop outX2
EDID Switch
power&sitgnal indicators
RJ45 port X2
12V power supplyX1
On/off buttonX1
Ports on RX:
RJ45 inX1
HDMI outX1
Power portX1(standby)
HDMI 1X4 without Loop
1. Support one HDMI input and output to four display devices at the same time.
2. The transmission distance of the receiving end can be up to 50 meters through the CAT5e/6 network cable.
3.7 EDID management modes.
Ports on TX:
HDMI input X1
RJ45 output X4
12V power supplyX1
On/off buttonX1
Power&signal indicators
EDID Switch
Ports on RX:
RJ45 inX1
HDMI outX1
Power portX1(standby)
