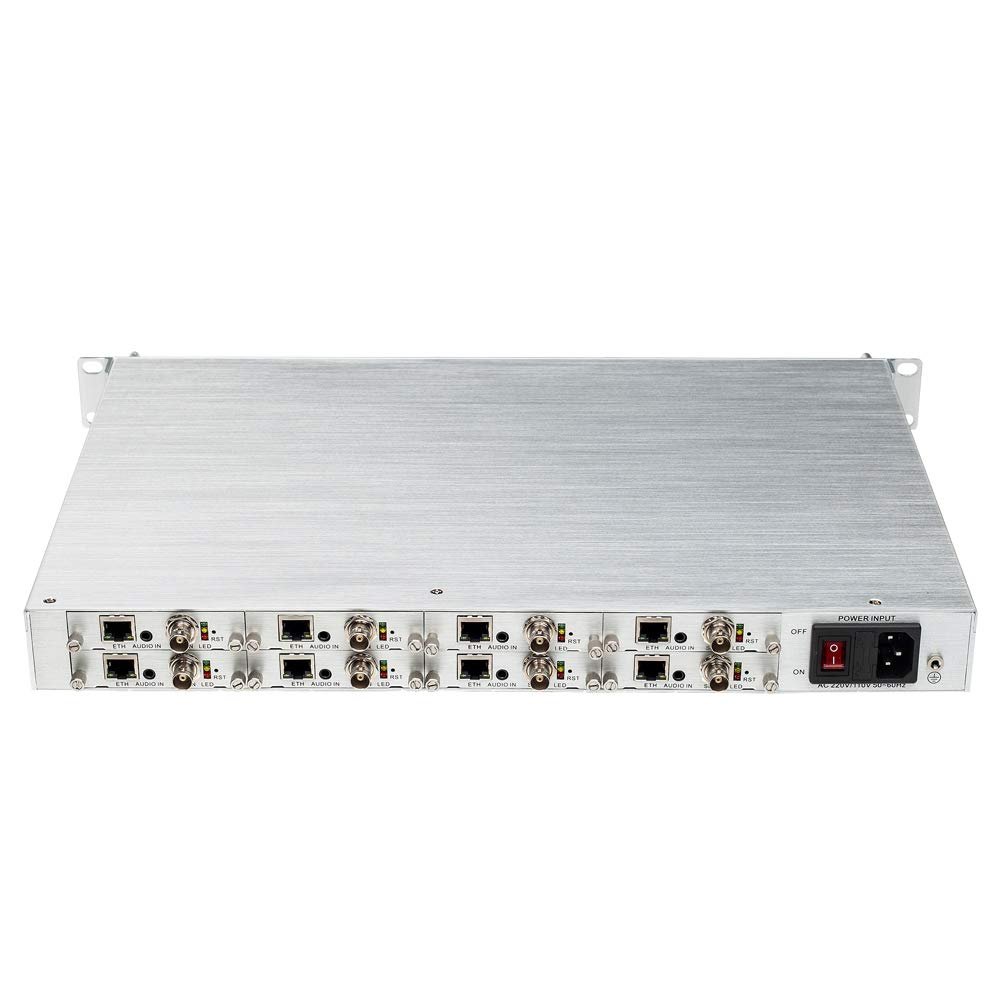

HaiweiTech HES-108 H.264 H.265 8 Channels SDI Encoder, Full HD 1080P IPTV Encoder, Support HTTP RTSP Over UDP/TCP RTMP UDP HLS Unicast Multicast for IPTV Streaming

Description

• INPUT:8 Channel SDI, 1920*1080 60/50/30/25FPS, 1680*1056, 1280*720, 1024*576, 960*540, 850*480, 720*576, 720*540, 720*480, 720*404, 704*576, 640*480, 640*360...320*180, 8 Channel line in audio(3.5MM audio jack).
• OUTPUT:8 channel IP signal output- HTTP, RTSP over TCP/UDP, RTMP, HLS, UDP(IGMPv2) multicast, unicast, P-P, optional SRT. 16*H.264/H.265 TS streams output(push/pull), alternative Audio/Video/A&V output for RTSP and RTMP.
• SMART ENCODING:The function for smooth stream/bitrate, with this arithmetic, the encoder will automatically detect the video fluctuation, then automatically modify the video bit and to make sure the video quality and completeness.
• STRONGER COMPATIBILITY:Compatible with DVB-C QAM, H.264 encoding (high (Level 4.2)/main (Level 4.2)/baseline profile ).HDMI 1.4 HDCP supported, it will automatically detecting and enabling the HDCP function if required.
• SERVICE AND SUPPORT:One year warranty, SDK/API, IP finder, Video management platform, LiveX-IOS Android APP, Solution analyzing, we supply customization service includes WEB GUI, laser/color printing, protocol, physical interfaces!

HES-108 8 channels SDI encoder is deep embedded hardware.Allows to transmit up to 1080P 5-30/60 video over IP: HTTP/ RTSP over UDP-TCP/ RTMP(Push/ pull)/ UDP/ RTP/ HLS and alternative SRT protocol. Supports SDK/API.

Applications:
1.Broadcasting
2.Hotel IPTV
3.Online Education
4.YouTube Wowza live streaming
5.Video Conferencing
6.Live Event Streaming
7.Multimedia Screen Splicing
8.CCTV/Surveillance/Monitoring

Video:
1.Input:8 Channel SDI input.
2.Output:8 channel IP signal output
3.Input resolution:Up to 1920x1080p 60FPS
4.Coding standard:H.264 AVC/ H.265 HEVC
5.Encoded size:320*180~1920*1080Can customize
6.Video bit rate:Rate control: CBR/VBR 16KBIT/S~12 MBIT/S
7.OSD:Text, Image

Audio:
1.Input:8 Channel Line in audio input, 8 channel SDI embedded audio.
2.Audio coding:AAC/ MP3/ G.711
3.Audio bit rate:64Kb/s~384Kb/s
4.Sampling rate:32000,44100,48000 etc

System:
1.Network protocol:HTTP, RTSP, RTMP, HLS, UDP multicast, unicast
2.Configuration management:WEB GUI, remotely upgrade,video management platform, API

Additional manufacturing Service:
1.SDK/API
2.Softwares:IP finder,Video management platform
3.Solution analyze
4.OEM/P2P(paid service)

Packing List:
1x encoder
1xPower adapter
8x 3.5mm audio cable
1xGuarantee card
