GVMUKNYE QL Series SCT031QL Input 200A 300A 400A 500A 600A Output 0.1A Accuracy 1% Split Core Current Transformer(500A-0.1A 1)

Description

• Isolation Transformers

Isolation Transformers

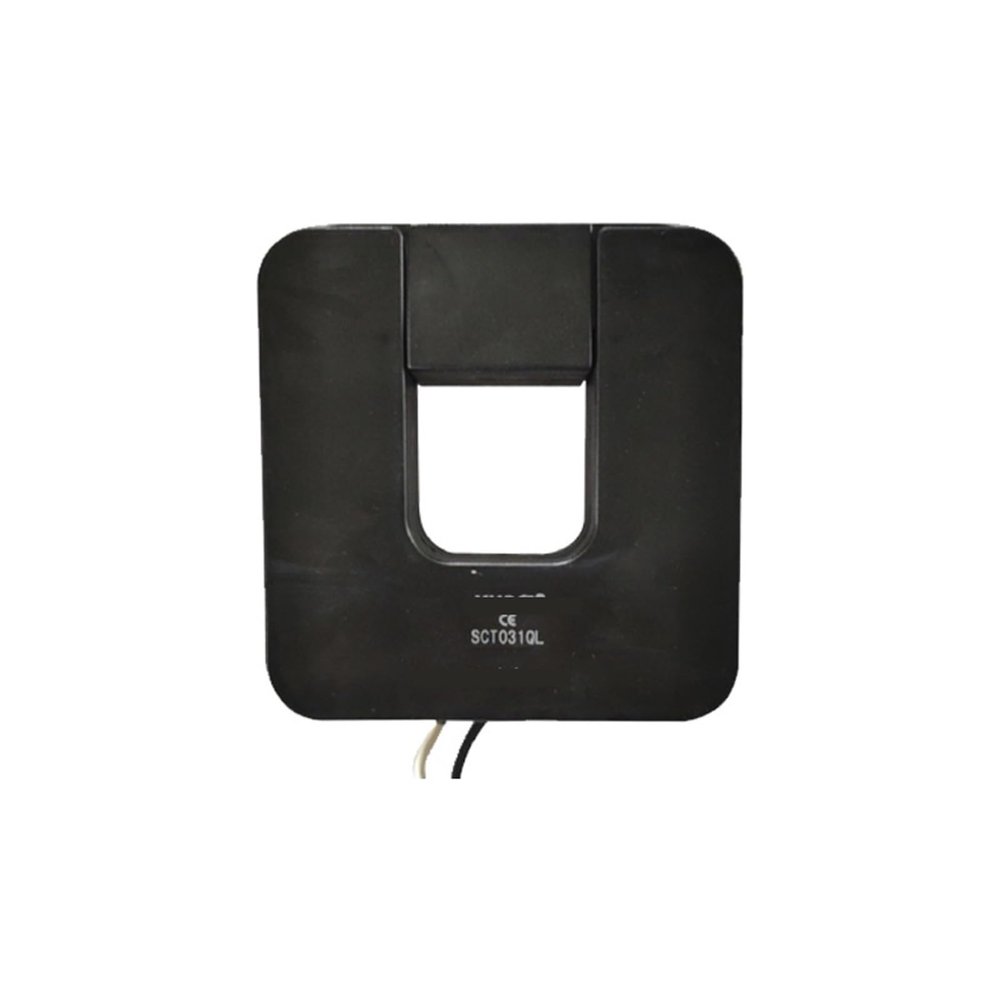

Split core current transformer Model: SCT031QL 200A 300A 400A 500A 600A/0.1A
Opening size 31mmx31mm, compatible with foreign products, epoxy resin package, lead wire output (1m)
Technical data:
Rated input: 200A 300A 400A 500A 600A
Rated output: 0.1A
Accuracy: 1%
Core material: Silicon steel sheet
Fire resistance: UL94-V0
Working voltage: 720V
Working temperature: -25+70
Storage temperature: -40+85
Frequency range: 50Hz-60Hz
Dielectric strength: 3.5KV 50Hz 1min
- Weight: 245 g
Please select the parameters that suit you, thank you. ^_^
