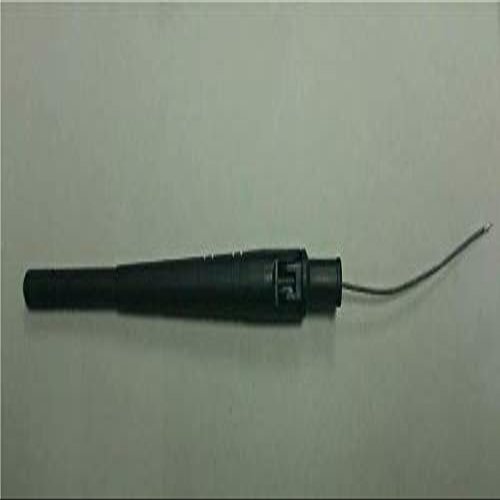

GSATT08212 3GHz Omni-Directional L=100mm 2.0 dBi Vertical Antenna

Description

• GSATT08212 3GHz Omni-directional L=100mm 2.0 dBi Vertical Antenna
• Frequency (GHz) GSM800/900/1800/1900/2100
• V.S.W.R 2.0 Max
• Antenna Material Cu
• Gain (Peak) 2.0 dBi

Electrical Properties
Frequency (GHz) GSM800/900/1800/1900/2100
Impedance 50
V.S.W.R 2.0 Max
Return Loss -10 dB Max
Radiation Omni-directional
Gain (Peak) 2.0 dBi
Cable Loss 0.7 dB Max
Polarization Vertical
Max Power 2 W
Connector / Physical Properties
Antenna Material Cu
Cable Type O.D 1.13mm
Operating Temp. -10 ~ +60 C
Storage Temp. -10 ~ +70 C
Cable Color Gray
