GSATT0710SF1 SMA-F 3dBi Linear Polarization Test Antenna

Description

• GSATT0710SF1 SMA-F 3dBi Linear Polarization Test Antenna
• Gain(dBi) @700-1000 1@1000-3800 3
• Polarization Mode Linear Polarization
• VSWR 2
• Connectors SMA-F

Parameter Min. Typ. Max.
Frequency Range (MHz) 700 3800
Polarization Mode Linear Polarization
VSWR 1.6 2
Gain(dBi) @700-1000 1
@1000-3800 3
Horizontal Coverage () -20 +20
Vertical Coverage () -45 +45
Input Impedance () 50
Efficience 60% min
75% Avg
Connectors SMA-F

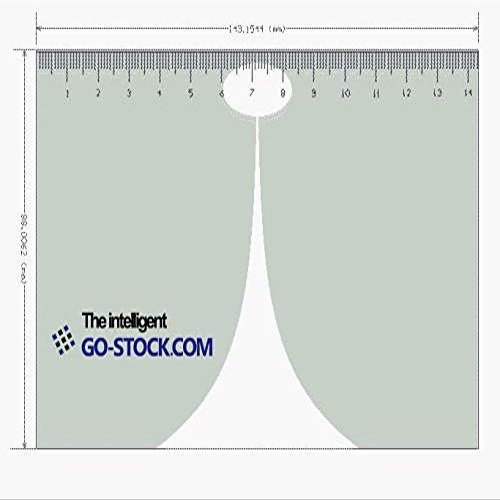

Physical Dimension (mm) 143981.8
Structural Deformation 0.5%
Operating Temperature (C) -45 Room Temperature +80
Storage Temperature (C) -55 +85
Operating Humidity (%) 0 95
Weight (g) 70
