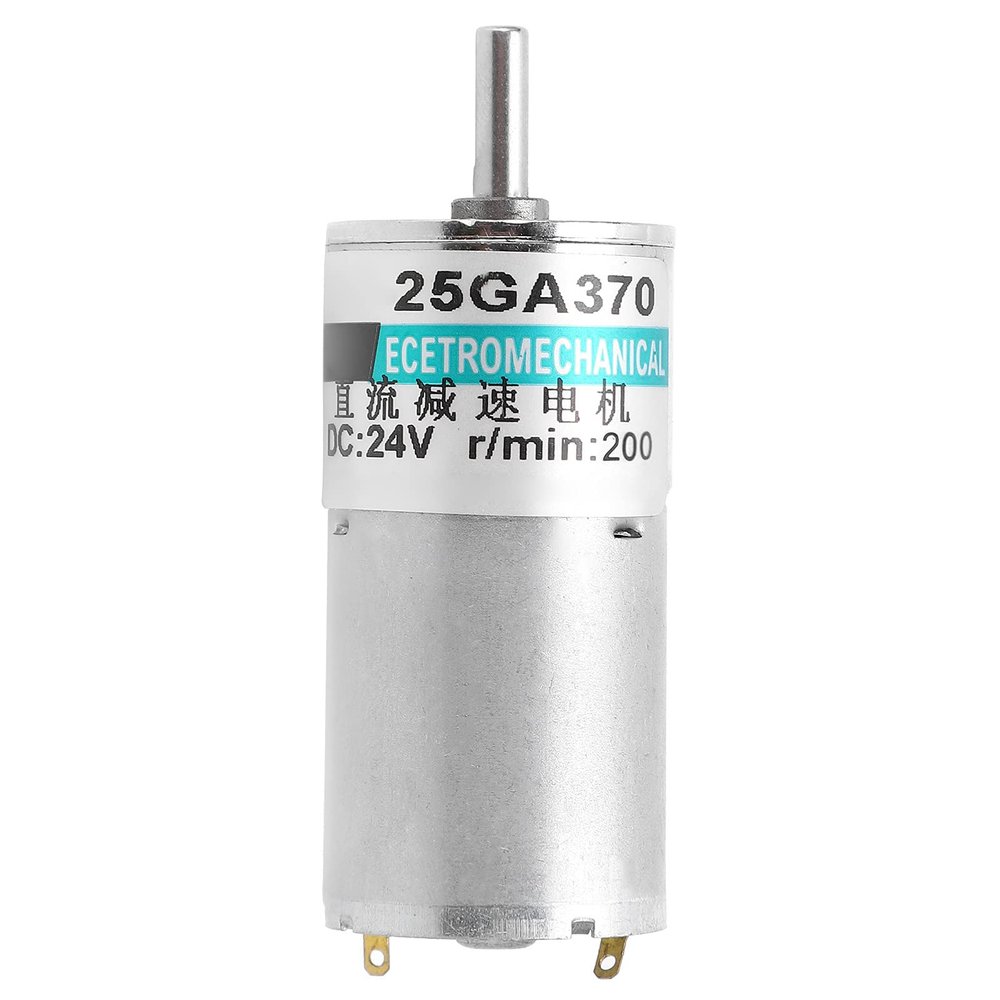

Garosa XD25GA370 DC24V Micro DC Gear Motor Slow Speed Reversible Gear Motor for CNC Machine Tools HighAccuracy Measuring Instruments and Electronic Manufacturing Equipment(200rpm/min),Geared Motor

Description

• CW/CCW: Micro low speed gear motor has wo magnets in the motor body, come with high remanence, high coercivity, high magnetic energy product,it supports forward and reverse.
• High : DC24V Gear motor output shaft size is about 4 x 12mm / 0.2 x 0.5in,it has pure copper coil stator and rotor, strengthen deceleration and conductivity, so that the motor torsion is increased.
• Lubricating Oil: The lubricating oil applied to XD-25GA370 DC Gear motor is hightemperature grease, possess the characteristics of low friction, noise reduction, and slow temperature rise.
• Safety : DC24V slow speed reversible gear motor provides overcurrent , this brushless motor will automatically cut off the power when the current reaches 3A.
• Application: DC24V low speed DC motor has 5 noload speed for choices,it is suitable for various industries such as micro machinery, various CNC machine tools, highaccuracy measuring instruments, electronic manufacturing equipment and financial machinery.

Specification:
Item Type: DC Gear Motor
Model: XD-25GA370
Material: Copper
Output Shaft Size: Approx. 4 x 12mm / 0.2 x 0.5in
Insulation After the rated of the motor under normal temperature and humidity, when measuring the insulation between the coil and the motor shell with a DC500V meter, it does not exceed 20M?
Insulation Withstand Voltage: After the rated of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for one minute, and the abnormality is 1500V.
Temperature Rise: It is normal to install a or equivalent heat sink and conduct rated under normal temperature and humidity by using the to measure the temperature rise of the coil below 70?
Insulation Class: Class B(130?)
Operating Environment Temperature: Motor: -10~+40? (no icing)
Use Environment Humidity: 85% or less (no condensation)
CW/CCW: Yes
Speed Adjusted: Yes

Package List:
1 x DC Gear Motor
