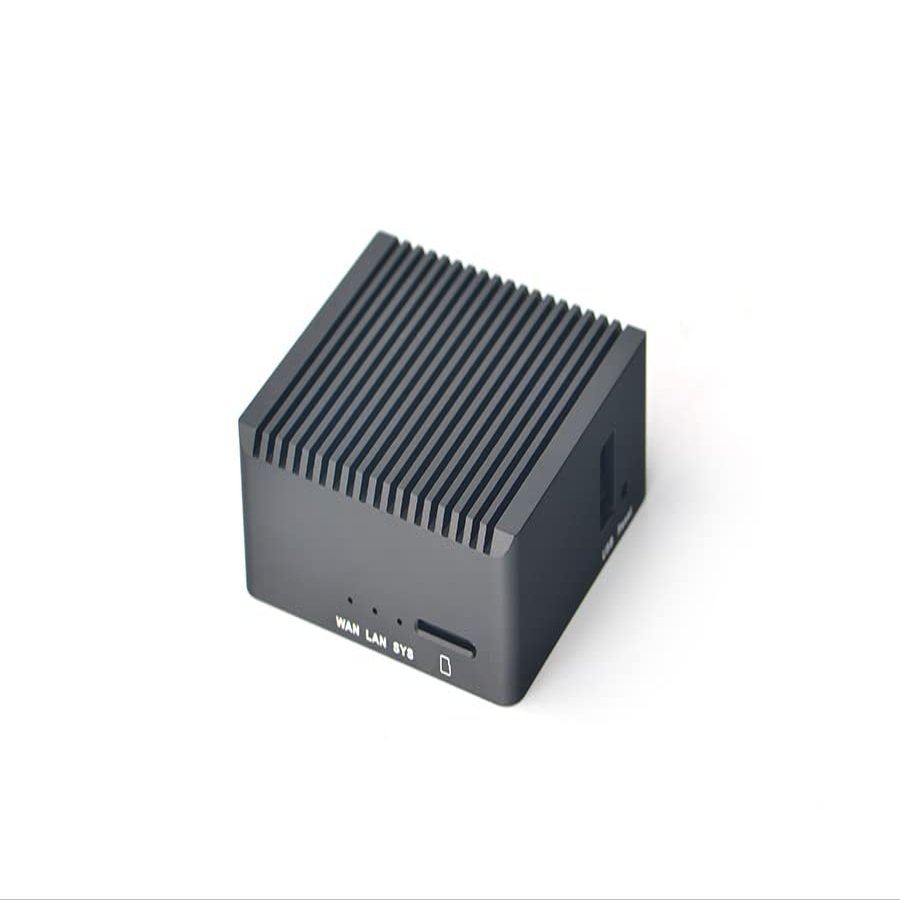

Friendly NanoPi R2S Oficial Metal Shell OpenWrt System RK3328 Mini Router Dual gigabit Port 1GB of Large Memory (R2S Mental Case Kit)

Description

• Package: R2S Single Board + Mental Case
• CPU: Rockchip RK3328, Quad-core Cortex-A53
• DDR4 RAM: 1GB
• Network Internal 10/100/1000M Ethernet Port x 1 / USB3.0 converted 10/100/1000M Ethernet Port x 1
• OS/Software: U-bootUbuntu-CoreOpenWrt
• WIKI: http://wiki.friendlyelec.com/wiki/index.php/NanoPi_R2S

Product Introduction

The NanoPi R2S(as "R2S") is a FriendlyElec mini-router with edge-computing and dual Gbps Ethernet ports. t is highlycompact such that it could be perfectly enclosed in a custom metal case of 60 x61x 27.5 mm.

The NanoPi R2S uses Rockchip's quad-core A53 RK3328 SoC with powerful performance. lts default frequency is 1.2GHzZThe NanoPi R2S has 1GB (or optional 2GB)RAM, dual Gbps Ethernet ports. lt uses RK805 PMU chip and supports dynamicfrequency scaling. It has one USB 2.0 port that can interface with 4G modules,USB HD cameras,USB WiFi modules etc.

The NanoPi R2S suppors TF card booting.lt works with FriendlyWt, UbuntuCore, Armbian etc and has good support fromvarious communities among which OpenWrt supports it in the mainline versions. These systems are based on Linux-5.4(LTS)The NanoPi R2S is powered through USB Type-C. It is a good choice for applications that need to be deployed in compactspace and need strong networking performance.

Hardware Spec

CPU: Rockchip RK3328, Quad-core Cortex-A53
DDR4 RAM: 1GB
Network
-Internal 10/100/1000M Ethernet Port x 1
-USB3.0 converted 10/100/1000M Ethernet Port x 1

USB2.0 Host: Type-A x1
MicroSD Slot x 1
MicroUSB: power input and USB Slave
Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector, 1500000 bauds
LED: LED x 3
KEY: KEY x 1 programmable
PC Size: 55.6 x 52mm
Power Supply: DC 5V/2A
Temperature measuring range: 0 to 80
OS/Software: U-bootUbuntu-CoreOpenWrt
