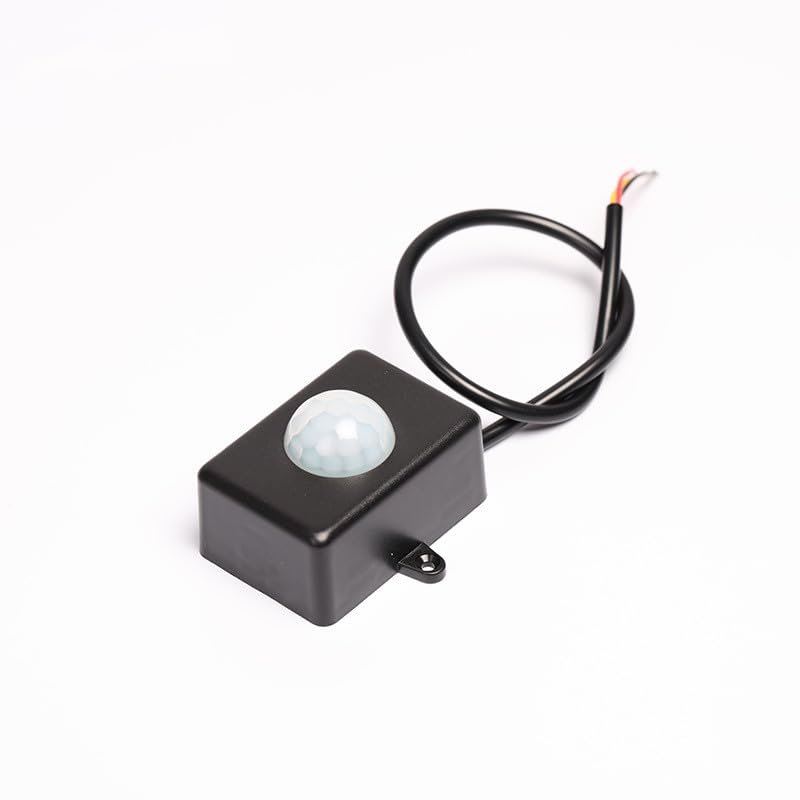

Flyron Technology PIR Motion Sensor/Detector - Black - Wall Mount - 6m Range - -20C to +50C - Plug-in Capability

Description

• Operating voltage DC 5-24V
• Current consumption 10mA (DC 12V)
• Detecting angle 120
• Detecting distance 6m
• Operating temperature -20C to +50C
• Red wire: +12V Black wire: GND Yellow wire: Signal
• Skill Level: Assembled and Tested

Operating voltage DC 5-24V
Current consumption 10mA (DC 12V)
Standby current 60uA
Level output 0V (3.3V at standby)
Delay time 3S
Detecting distance 6m
Detecting angle 120
Diameter of the Lens 23mm
Outline size 52L*36W*23H mm
Diameter of the mounting hole 2.5 mm
Length of the cable 45cm
Operating temperature -20C to +50C
Wiring:
Red wire: +12V
Black wire: GND
Yellow wire: Signal
