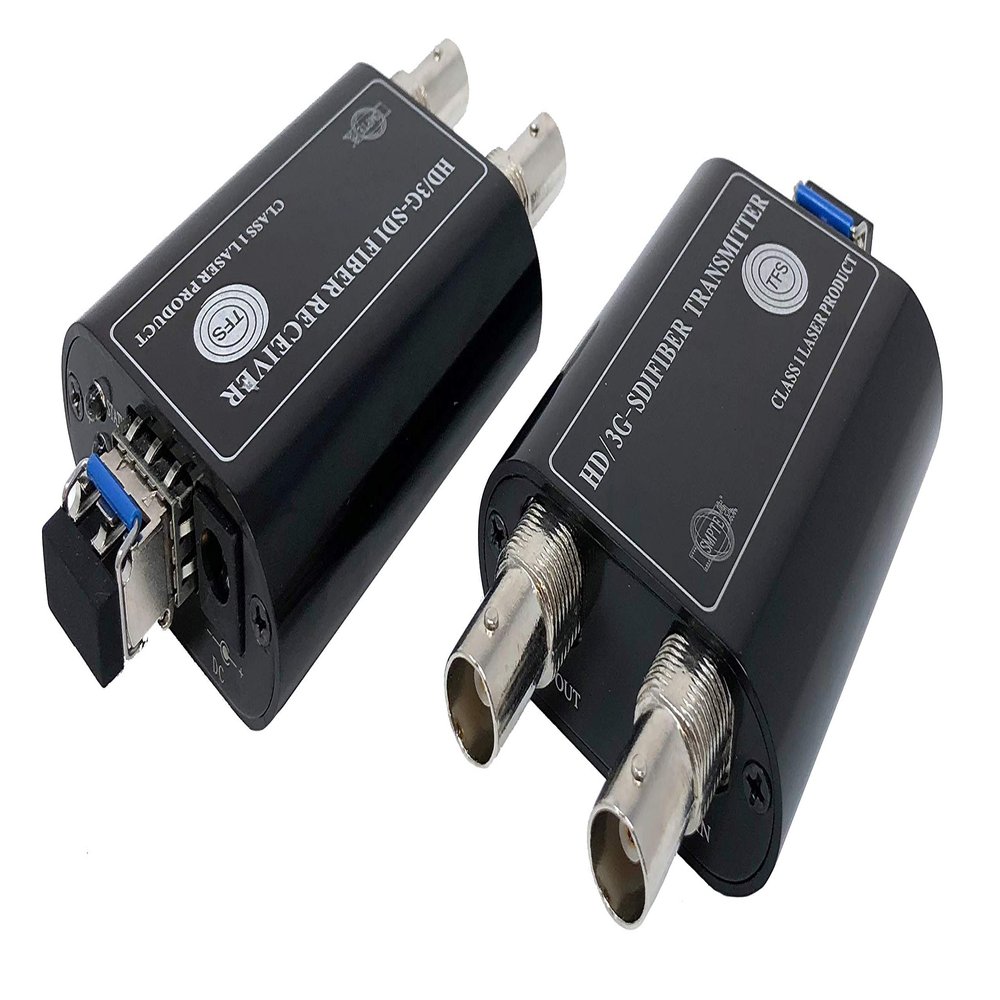

DURATAC TFS 3G-SDI Video Fiber Extender

Description

• Cost-effective 3G-SDI over Fiber Optic Transmission System
• Designed for long cable runs up to 12.5 miles away
• Transmitter: 1 SDI input with SDI loop-thru output
• Receiver: 2 identical SDI outputs
• Optic fiber: LC 9/125 singlemode (wavelength 1310)

The TFS SDI Bullet is a compact, cost-effective 3G-SDI over Fiber Optic transmission system designed for long cable runs up to 12.5 miles and the perfect choice when looking for a value priced solution for sports, ENG and live event venues. Our powerful 3G-HDSDI fiber converter pair support SDTV (143-540Mbps) and HDTV (1.485Gbps, and 3Gbps, 1080p60) resolutions. The transmitter features loop-tru input while the receiver features two identical outputs eliminating the requirement for a 1x2 SDI Distribution amp on the receiving side. Automatic equalizing and re-clocking ensure reliable signal transmission over long distances. Use TFS value priced tactical fiber cables for a complete system! System includes transmitter, receiver and two AC/DC power supplies. Specifications: SMPTE 424/292M/259M standards, DVB-ASI Re-clocking at 270Mbps, 1.48Gbps, 3Gbps Video Connector = 75 BNC Support signal type: 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards Transmitter: 1 SDI input with SDI loop-thru output Receiver: 2 identical SDI outputs Wavelength: 1310nm Optic fiber: 9/125 singlemode Optical connector: Simplex LC/PC Input power: 5 VDC/2A Power consumption (max): Transmitter: 1.8W, Receiver: 1.5W Operating temperature: 32F to 131F (0C to 55C) Weight: 0.463 lbs (210g) /pair, with power supply 0.97 lbs (440g/pair)
