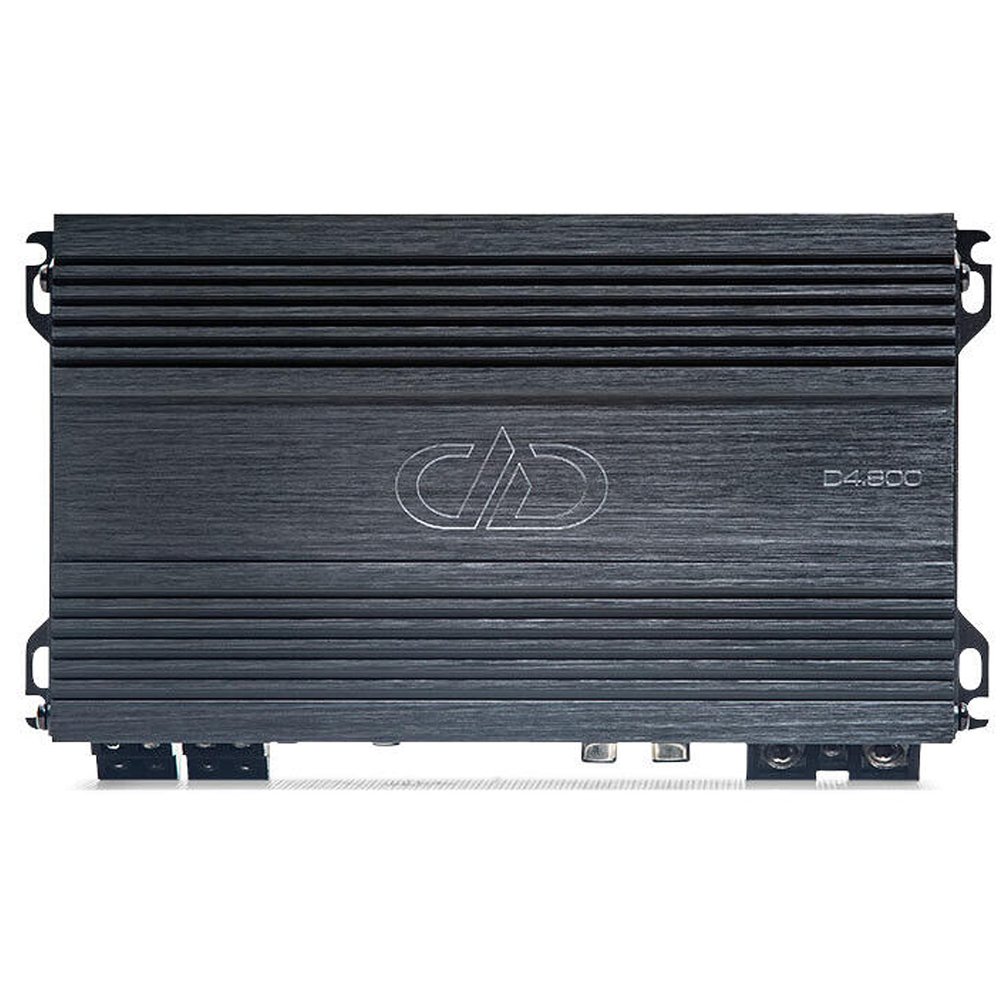

DD Audio D4.800 4-Channel 800W RMS Amplifier

Description

• n many of todays installs, wattage per square inch is a deciding factor on what amplifier gets the job. For the D4.800, DDs engineers were able to take the existing D4.800s compact chassis, which is only 7 x 4 x 1.7, and increase the total output by 20%.
• The D4.800 can cleanly produce 200 watts per channel for a staggering 800 watts of total power. Beyond its amazing power to size ratio this amp is packed with features not normally seen on amplifiers in this size and price category.
• The D4.800 also has conformal coated internal components and sealed back switches making it perfect for motorcycle, boat, and powersport applications. As if this amp didnt have enough going for it, DD also has a line of made for Harley Davidson brackets that allow the D4.800 to cleanly and securely mount into 2014 and up Harley Road Glides and Street Glides.

D4.800 | DD Audio Digital Designs 4-Channel 800W RMS Amplifier
FEATURES:

Bandpass Crossovers
Clipping Indicators
Input Mode
Auto Turn On
Set Screw Power Connections
Set Screw Speaker Connections
Differential RCA Inputs
Discrete Outputs
SPECIFICATIONS:

Operating Voltage: 9 - 16
Test Voltage: 14.4
Output Channel(s): 4
Continuous Wattage @4ohm: 4 x 125 / 2 x 400
Continuous Wattage @2ohm: 4 x 200
Max Current Draw (Amps): 80
RCA Input Voltage Sensitivity: 8 - 0.2
RCA Input S/N: > 90dB
Damping Factor: > 100
THD: <0.2%
Frequency Response (Hz): 30 - 30k
Sub-Sonic Filter: 30 - 5k
Low-Pass Filter: 50 - 5k
Pass Thru Output: No
Power Wire Gauge: 4
Speaker Wire Gauge: 12
Dimensions (Inches): 7 x 4 x 1.7
Dimensions (MM): 180 x 104 x 43
