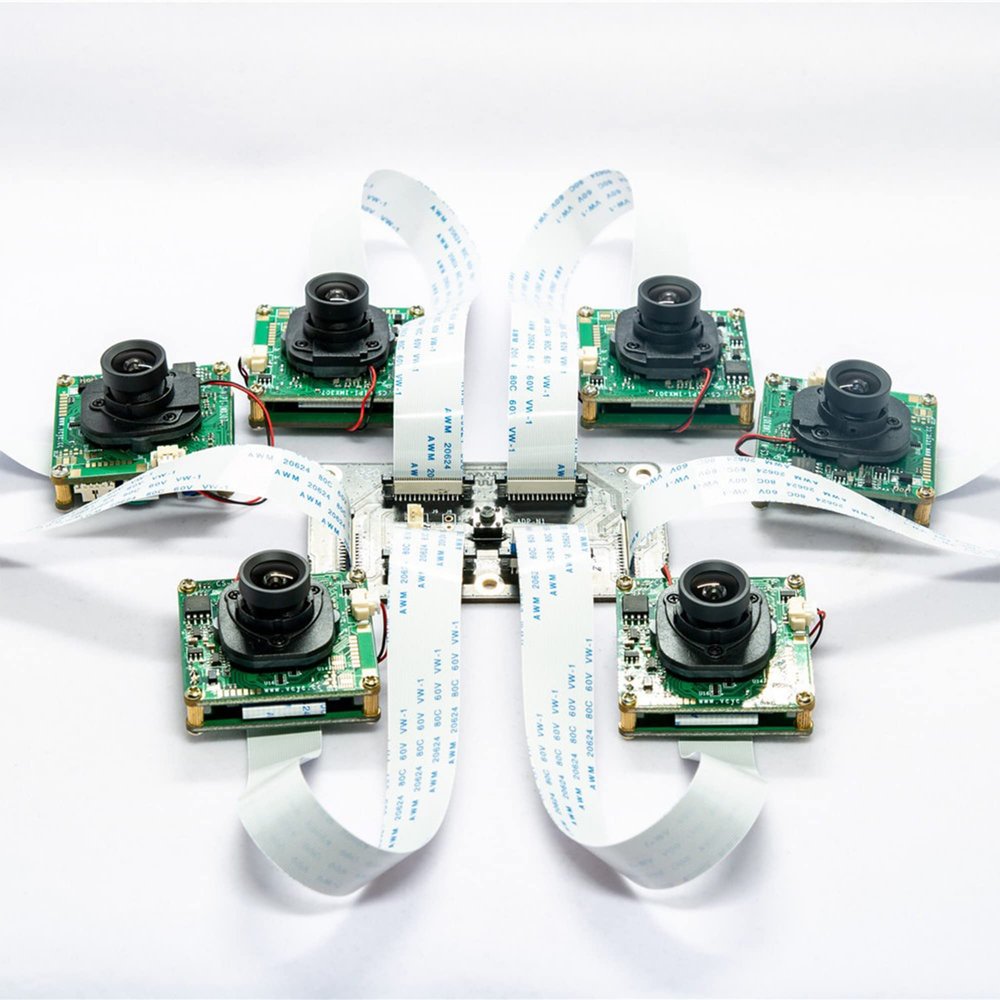

CS-TX2-XAVIER-nCAM-IMX307 for Jetson TX2 Devkit,AGX-Xavier and AGX-Orin, IMX307 MIPI CSI-2 2MP Star Light ISP Camera Module (4-cam YT0.95-4I)

Description

• Package: 1pcs* 4-cam YT0.95-4I.
• Excellent low illumination and WDR performance1/2.8 inch 2 Mega sensor IMX3071920*1080@max30fps1280*720p@max60fps(cropping mode)640*480@max130fps(cropping mode).
• Excellent ISP built-in, Uncompressed UYVY format, YUV422-8bit.
• Support Raspberry Pi Zero & W,Pi 4,3 b+,Pi 3, Pi CM. Jetson Nano, Xavier NX.

Product introduction

S-TX2-XAVIER-nCAM-IMX307 is a camera module with excellent low illumination and wide dynamic performance.

This module only is 38*38*8mm, which is convenient for integration and can be connected to various embedded motherboards with adapter board.Suitable for machine vision, intelligent analysis, industrial control, face recognition, ADAS etc...

-1/2.8 inch 2 Mega sensor IMX307
-MIPI output: CSI-2
-Uncompressed UYVY format, YUV422-8bit
-Standard lens mount
-IR-CUT circuit + BLC, DOL-WDR, 2D/3D noise reduction, Anti-fog,Brightness, Contrast, Sharpness, Saturation adjustable + Stream mode and Capture mode
-Framerate control
-Support JETSON TX2,Xaviar
-Open source drivers and applications for all platform supported
-Lens name: YT[F NO.]-[Focal length];YT1.0-4I mean F:1.0,4mm lens.
