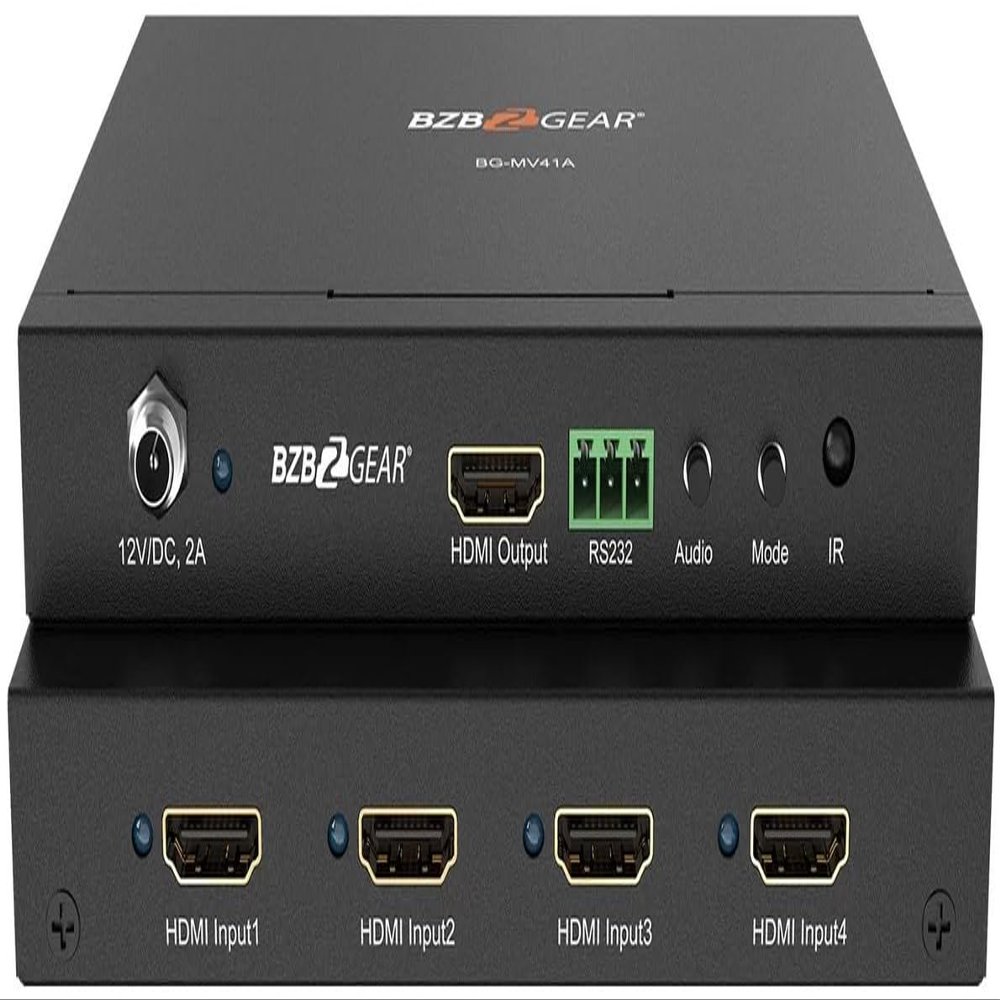

BZBGEAR BG-MV41A 4X1 1080P FHD HMDI Switcher Scaler and MultiViewer with IR/RS232, High-Res Inputs, Multifunctional, Remote Adjustable Resolutions, 5 Different Display Modes

Description

• HDCP 1.2: High-Bandwidth Digital Content Protection Supported
• High-Res Inputs: Resolutions up to 1080p@60Hz supported
• Multifunctional: Use as a seamless switcher or multiviewer
• Multiview: 4x1 Quad Multiview (With Matching Resolutions)
• Remote Adjustable Resolutions: Output Resolutions Can Be Adjusted Via The IR Remote

BZBGEAR BG-MV41A 4X1 1080P FHD HMDI Switcher Scaler and MultiViewer with IR/RS232, High-Res Inputs, Multifunctional, Remote Adjustable Resolutions, 5 Different Display Modes

Introducing the BG-MV41A, a versatile 4x1 HDMI Switcher Scaler and Multiviewer with IR/RS232 capabilities. This device empowers users to connect up to four HDMI sources, offering simultaneous display or seamless full-screen switching, supporting resolutions up to 1080p@60Hz. It's ideal for various applications, including conference rooms, presentations, industrial workstations, and surveillance systems, providing customizable layouts, audio signal toggling, and multiple control options to enhance the viewing experience.

KEY FEATURES
- HDCP 1.2: High-Bandwidth Digital Content Protection Supported
- High-Res Inputs: Resolutions up to 1080p@60Hz supported
- Multifunctional: Use as a seamless switcher or multiviewer
- Multiview: 4x1 Quad Multiview (With Matching Resolutions)
- Remote Adjustable Resolutions: Output Resolutions Can Be Adjusted Via The IR Remote
- Scaling: Upscale 720p Into 1080p And Downscale 1080p To 720p
- Control through multiple, easy options
- 5 different display modes
- Low 10W max power consumption
- Quick, seamless switching
- Easy to install and operate
- RS232 signal passthrough
- Selectable audio output
- Lock in power supply

SPECIFICATIONS
- Maximum Single Link Range: 1920x1080@60
- HDMI Input/Output Connector: Type A 19 pin
- Vertical Frequency Range: 50/60Hz
- Video Amplifier Bandwidth: 2.25Gbps
- Output Resolution: 720p, 1080p
- Operating Temperature: 32F to 158F
- Operating Humidity: 10% to 85% RH (no condensation)
- Storage Temperature: 14F to176F
- Storage Humidity: 5% to 90% RH (no condensation)
- External Power Supply: 12V DC@2A
- Power Consumption: 10W
- Dimensions: 5.8"W X 4.0"D X 0.83"H
- Weight: 0.75lbs
