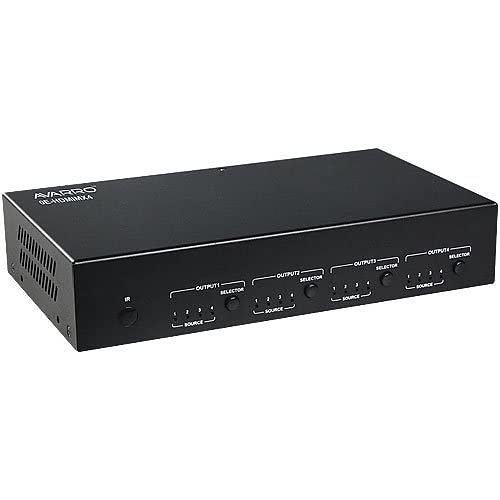

AVARRO 0E-HDMIMX4 HDMI Switcher with IR Remote Control, 4 Inputs x 4 Outputs, Smart EDID Management, Firmware Upgrading Via Both Micro-USB and Web UI

Description

• 4K Ultra HD and HDCP 2.2 compliant
• Built-in 4K-1080P downscaler
• Smart EDID Management
• Supports HDR formats including HDR 10, HLG, DOLBY VISION up to 4K60 444
• Firmware upgrading via both micro-USB and Web UISpecifications:- Input/output port: 4 x HDMI IN, 4 x HDMI OUT, 1 x RS232, 1 x IP CONTROL (RJ45), 4 x SPDIF OUT (Digital), 1 x FW (Micro USB), 1 x DC 12V IN

AVARRO 0E-HDMIMX4 HDMI Switcher with IR Remote Control, 4 Inputs x 4 Outputs, Smart EDID Management, Firmware Upgrading Via both Micro-USB and Web UI

Key Features:
- 4K Ultra HD and HDCP 2.2 compliant
- Built-in 4K-1080P downscaler
- Smart EDID Management
- Supports HDR formats including HDR 10, HLG, DOLBY VISION up to 4K60 444
- Firmware upgrading via both micro-USB and Web UI

Specifications:
- Input/output port: 4 x HDMI IN, 4 x HDMI OUT, 1 x RS232, 1 x IP CONTROL (RJ45), 4 x SPDIF OUT (Digital), 1 x FW (Micro USB), 1 x DC 12V IN
- Resolution supported: VESA: 800x600, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1366x768, 1440x900, 1600x900, 1600x1200 , 1680x1050 , 1920x1200 SMPTE: 720x576P, 1280x720P, 1920x1080P, 3840x21608, 4096x2160
- Maximum data rate: 10.2Gbps

- Maximum pixel clock: 340MHz

- Audio format: HDMI in/out, Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS HD Master Audio and DTS:X S/PDIF OUT: Supports PCM 2.0/5.1, Dolby digital and DTS up to 5.1 Channel
- Maximum data rate: 18 Gbps
- Maximum pixel clock: 600 MHz
- ESD protection: 8kV (Air-gap discharge)/ 4kV (Contact discharge)
- Surge protection: Voltage: 1 Kv
- Power supply: DC 12V 2A
- Power consumption (max): 10.8W
- Device dimension: 8.46 x 1.65 x 4.73
- Product weight: 1.19 lbs
