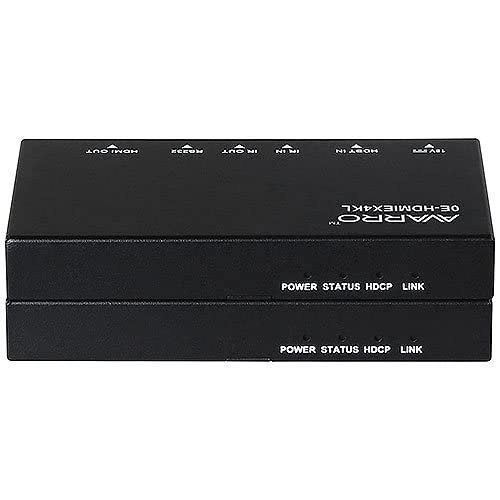

AVARRO 0E-HDMIEX4KL 4K 60hz HDBT PoE/HDCP 2.2 Extender, 4K Ultra HD and HDCP 2.2 Compliant, Built-in ESD, Surge Protection, Black

Description

• HDMI 1.4 with 4K and HDCP 2.2 compliant
• Supports resolutions up to 4K@60Hz 4:2:0 8bit and HDCP 2.2
• Via a Cat 6a/7 cable, extends 4K@60Hz 4:2:0 8bit up to 40m/130ft and 1080P up to 230ft
• Via a Cat 5e/6 cable, extends 4K@60Hz 4:2:0 8bit up to 35m/115ft and 1080P up to 197ft

AVARRO 0E-HDMIEX4KL 4K 60hz HDBT PoE/HDCP 2.2 Extender, 4K Ultra HD and HDCP 2.2 Compliant, Built-In ESD, Surge Protection, Black

Key Features:
- HDMI 1.4 with 4K and HDCP 2.2 compliant
- Supports resolutions up to 4K@60Hz 4:2:0 8bit and HDCP 2.2
- Via a Cat 6a/7 cable, extends 4K@60Hz 4:2:0 8bit up 130ft and 1080P up to 230ft
- Via a Cat 5e/6 cable, extends 4K@60Hz 4:2:0 8bit up to 115ft and 1080P up to 197ft
- Use a lockable power port for a stronger connection
- Bi-directional PoC, one power adapter at either transmitter or receiver side can power both units
- Supports bi-directional IR and RS232 pass-through
- All connectors in one side for easy cabling

Specifications:
- Input/output: Transmitter: 1 x HDMI IN, 1 x IR IN, 1 x IR OUT, 1 x 1 x HDBT OUT, 1 x RS232 (3-Pin phoenix connector), 1 x DC 18V IN Receiver: 1 x HDMI OUT, 1 x IR IN, 1 x IR OUT, 1 x HDBT IN, 1 x RS232 (3-pin phoenix connector), 1 x DC 18V IN
- Input/output signal type: HDMI with 4K@60Hz 4:2:0, HDCP 2.2
- Resolution supported: Up to 4096x2160@60Hz, including 4K@60Hz/4K@30Hz/1080P/ 1080i/720P
- Audio format: Supports multichannel audio up to PCM 7.1, Dolby True HD, DTS HD Master Audio, dolby atmos and DTS:X
- Maximum data rate: 10.2Gbps
- Maximum pixel clock: 340MHz
- Operating temperature: 32F to 113F
- Storage temperature: -4F to 158F
- Humidity: 10% to 90%, non-condensing
- ESD protection:
-8kV (Air-gap discharge)/
-4kV (Contact discharge)
- Surge protection: Voltage: 1 kV
- Power supply: DC 18V 1A (for each unit)
- Power consumption (max): 8.88W (Pair, PoC)
- Device dimension (transmitter / receiver): 4.3 x 0.6 x 2.5
- Product weight (transmitter/receiver): 0.40 lbs
