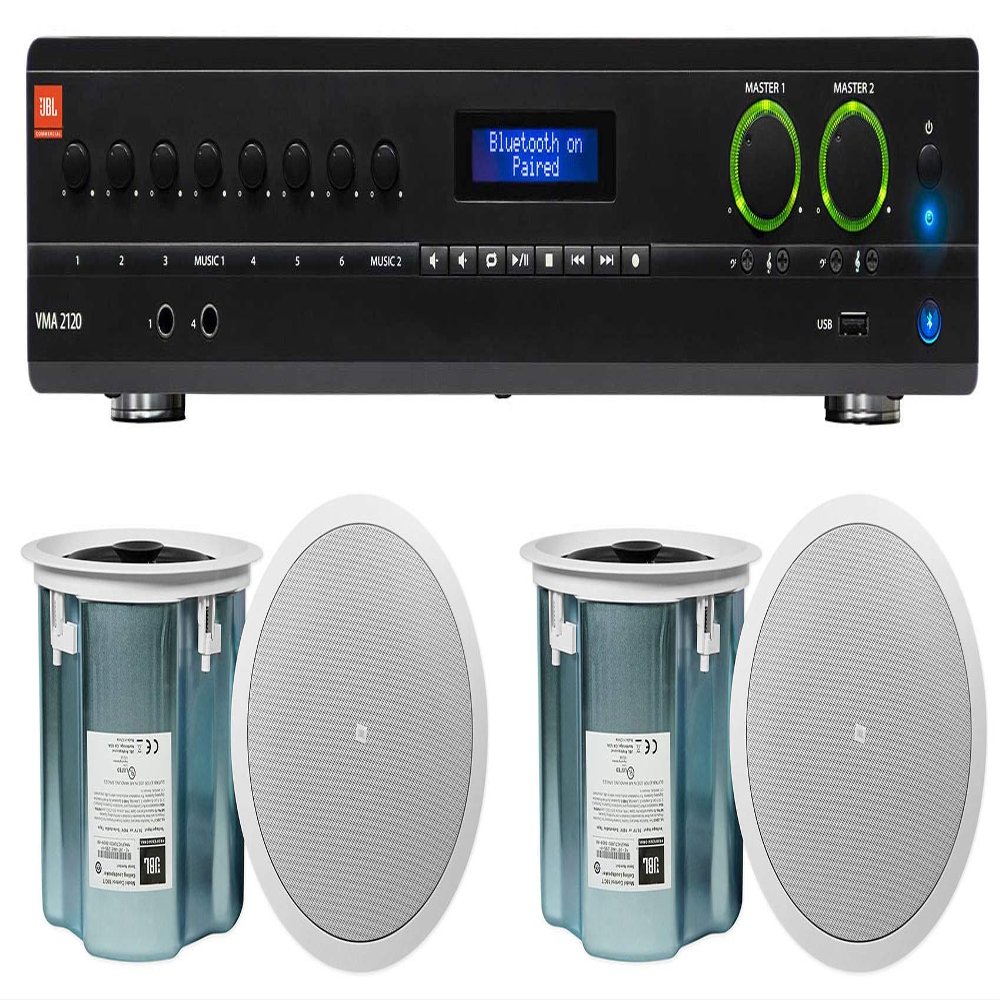

Audiosavings Bundle: (1) JBL VMA2120 2-Ch. Commercial/Restaurant 120W 70V Bluetooth Amplifier Bundle with (2) JBL Control 18C/T 8" 60w 70v in-Ceiling Speakers (3 Items)

Description

• Package Includes: (1) JBL VMA2120 2-Ch. Commercial/Restaurant 120W 70V Bluetooth Amplifier, 8 Inputs(2) Pair JBL CONTROL 18C/T 8" 60w 70v In-Ceiling Speakers For Restaurant/Bar/Cafe. Features: JBL VMA2120 120 Watt 70V Mixer/Amplifier with Bluetooth and 8 Channel Inputs. Max Output Power: 120 Watts. Frequency Response: 20 Hz - 20 kHz. THD (Total Harmonic Distortion): 76 dB. Input Impedance: Mic: 400 Ohms, Line: 20 kOhms (balanced), RCA: 50 kOhms
• Phantom Power: 27VDC. Crosstalk: -70 dB. Nominal AC Line Voltages: 100V, 120V, 220V, 220-240V, 50/60 Hz. Minimum Load Impedance: 4 Ohms, 40 Ohms, 80 Ohms. Insertion Loss: 1 dB Maximum. Number of Inputs: 8. Number of Outputs: 2. Tone Control: Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz. Input Sensitivity: Mic Input: 5.5mVRMS, Line Input: 1.3VRMS, RCA Input (stereo in): 130mVRMS. Independent bass and treble controls for each output channel. Paging Chime, and Priority Muting
• Rack mounting hardware included. Product Dimensions (W x D x H): 17" x 16.3" x 3.5" inches. Product Weight: 29.3 Lbs.. Pair JBL CONTROL 18C/T 8" 60w 70v In-Ceiling Speakers For Restaurant/Bar/Cafe. 200 mm (8.0 in) high output driver with polypropylene cone and butyl rubber surround. 25 mm (1.0 in) soft-dome liquid-cooled tweeter. Blind-mount backcan for quick and easy installation. Dual conduit/cable clamps. Combined 70V/100V and low impedance direct operation. 90 Watts at 8O nominal setting
• 60W multi-tap at 70V/100V. 58 Hz - 20 kHz bandwidth with 90 degree coverage. High 92 dB sensitivity for high maximum SPL. Color: White. Specifications: Frequency Range (-10 dB)158 Hz - 20 kHz. Frequency Response (+/-3 dB)180 Hz - 16 kHz. Power Capacity (at low-Z) 2180 Watts Continuous Program Power. Maxium Input Voltage31.8 V RMS (2hrs), 63.6 V peak. Nominal Sensitivity392 dB. Nominal Coverage Angle390 degree conical coverage. Directivity Factor (Q) 36.0. Directivity Index (DI) 37.8 dB
• Rated Maximum SPL112 dB @ 1 m (3.3 ft) average, 118 dB peak. Nominal Impedance8 ohms (in direct/bypass 8O setting). Transformer Taps60 W, 30 W, 15 W @ 70V or 100V (plus 7.5 W @ 70V only). Recommended Protective High-Pass445 Hz high-pass (24 dB/oct) for 8ohm operation, 60 Hz for 60 W tap, 50 Hz for 30 W, 15 W & 7.5 W tap setting. Crossover Network12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver

LF Driver200 mm (8.0 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil. HF Driver25 mm (1.0 in), highly-damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide. Input ConnectorRemovable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2). Connector WiringPin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru. Strain ReliefsStrain relief for two cables or two flex conduits via coupled clamping mechanism. MaterialsABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan. Safety AgencyUL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems. Dimensions307 mm diameter x 274 mm depth from back of baffle (12.1 in diameter x 10.8 in depth). Ceiling Cutout SizeCircular cutout with 282 mm (11.1 in) diameter (cardboard cutout template included). Ceiling Thickness RangeUp to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses. Safety Seismic AttachmentOne point, top surface. Net Weight6.4 kg (14.1 lbs, one speaker). Shipping Weight17.7 kg (39.0 lbs, pair in master carton). Included AccessoriesC-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille with safety tether.. Optional AccessoriesMTC-47NC new construction bracket; MTC-47MR mud-ring construction bracket; MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dogears for 6 speakers);
