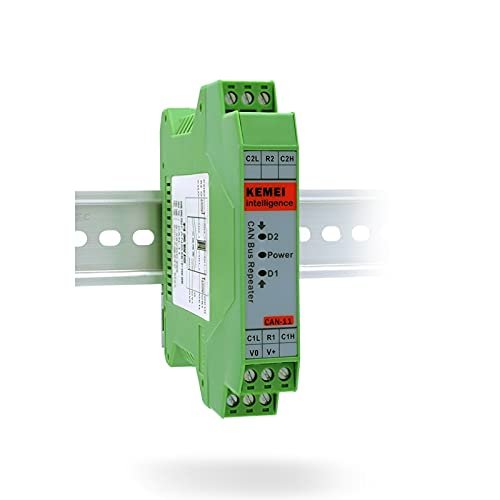

Anncus CAN Bus ADI Isolator Module Repeater Isolation Gate Hub One in One Out CA-FD 1.5KV Full Isolate 1M high Speed CAN2.0 A/B

Description

• Origin: CN(Origin)
• Condition: New
• Type: Logic ICs
• Model: CAN-11

CAN (FD) bus protection, expansion equipment
Industrial grade CAN bus isolated repeater, 100Mbps high speed isolation
Standard 35mm DIN rail mounting, 9-28VDC wide voltage supply.
Support CAN2.0A/B standard (optional support for the latest CAN-FD standard).
Thin modular design with detachable terminals for combination use.
Magnetic coupling isolation technology, 1.5KV electrical isolation, interface surge protection.
Power supply, CAN bus pre-stage and rear-end three-terminal isolation.
Built-in bus arbitration logic, bus data LED indication.
10K-1Mbps (optional CAN-FD5Mbps) baud rate adaptive, loopback time as low as 110nS.
110 node bus load capacity.
Introduction:
CAN-11 is a cost-effective industrial grade CAN bus isolated repeater, widely used in automotive electronics, industrial automation equipment, security systems, intelligent instrumentation and other occasions. The product provides 1.5KV electrical isolation, bus bidirectional arbitration, baud rate adaptive design, protocol transparency, plug and play. The product is modular in design, small in size and light in weight, and can be used in combination. The product is suitable for standard 35mm DIN rail mounting and the terminals are detachable, which saves a lot of space and time for easy construction of a stable and safe CAN bus network.
Failure isolation function:
CAN-11 provides fail-isolation. When one end of the bus data continues to be "dominant", the other side of the transceiver will trigger the dominant timeout (DTO) function, thereby isolating the failed side bus, ensuring that the normal side bus node remains Normal communication.
Item specifics:
Origin: CN(Origin)
Condition: New
Type: Logic ICs
Model: CAN-11
Isolation technology: Magnetically Coupled Isolation Technology
Power supply mode: Wide Voltage
Usage nature: Industrial grade
Installation mode: DIN guideway
Maximum bau
