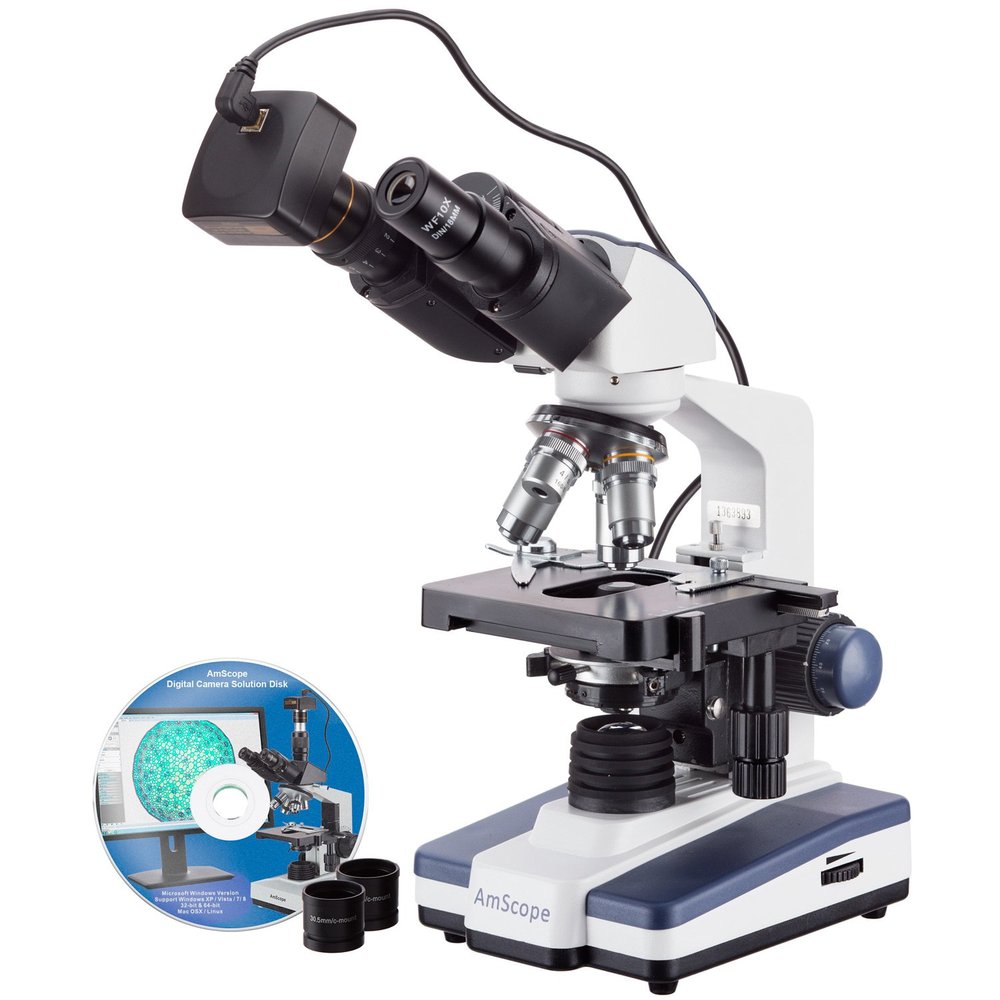

AmScope B120B-10M Digital Siedentopf Binocular Compound Microscope, 40X-2000X Magnification, Brightfield, LED Illumination, Abbe Condenser, Double-Layer Mechanical Stage, Includes 10MP Camera with Reduction Lens and Software

Description

• Digital compound microscope and a 10MP camera with reduction lens and USB 2.0 output for capturing or displaying images on a computer or projector
• Siedentopf binocular head with pairs of 10x widefield and 20x widefield eyepieces with 53 to 77mm inter-pupillary adjustment, fixed 30-degree vertical inclination to reduce eye and neck strain, and 360-degree rotation capability to provide a more comprehensive view and enable sharing
• Forward-facing nosepiece with 4x, 10x, 40xS (spring), and 100xS (spring, oil) DIN achromatic objectives that provide color correction of magnified images at eight magnifications
• Brightfield, LED illumination, and 1.25 NA Abbe condenser with iris diaphragm for clear examination and light control
• Double-layer mechanical stage, with 1.0mm stage divisions, locks slide into place and provides precise slide manipulation along the X- and Y-axis to allow coordinates to be recorded, enabling the viewer to return to a specific location on the slide

The AmScope B120B-10M digital compound binocular microscope has pairs of 10x widefield and 20x widefield eyepieces, a forward-facing nosepiece with four DIN achromatic objectives, Brightfield (BF) LED illumination, a 1.25 NA Abbe condenser, and a double-layer mechanical stage. The 10MP camera has a CMOS color sensor, a reduction lens, image capture and editing software, and USB 2.0 output to capture or display still or video images on a computer or projector. The Siedentopf binocular head has interchangeable pairs of 10x widefield and 20x widefield eyepieces with 53 to 77mm Siedentopf inter-pupillary adjustment, a fixed 30-degree vertical inclination to reduce eye and neck strain, and a 360-degree rotation capability to provide a more comprehensive view and enable sharing. Dioptric adjustment accommodates individual eye-strength differences. The forward-facing nosepiece has 4x, 10x, 40xS (spring), and 100xS (spring, oil) DIN achromatic objectives that combine with the eyepieces to provide color correction of magnified images at eight magnifications. The 40xS objective is spring loaded to prevent slide damage when focusing. The 100xS spring-loaded oil objective provides increased resolution over a standard objective. A digital compound microscope is used for inspection and dissection of specimens when two-dimensional images are desired, and where image capture, detailed records, or documentation is required.
The 10MP digital camera has a CMOS color sensor for displaying still microscopy images and streaming live videos to a computer or projector. The camera has 40x magnification and a 0.5x reduction lens that ensures that the display has a similar field of view as the microscope eyepiece. The camera can be mounted in a C-Mount or any 23mm eye tube. The camera includes image capture and editing software that provides still image and live video capture and editing capability, including measurement functions. The software supports JPG, TIF, GIF, PSD, WMF, and BMP file formats and is compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. Camera drivers are compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. The software includes Windows APIs for native C/C++, C#, DirectShow, Twain, and LabVIEW that enable custom application development. The camera has a USB 2.0 data port (cable included).
The microscope has lower (diascopic) Brightfield illumination that transmits light up through the specimen for enhanced visibility of translucent and transparent objects. Brightfield (BF) illumination allows the specimen to absorb light, resulting in a dark image on a light background. LED illumination provides bright, cool light for working with temperature-sensitive or live specimens. The 1.25 NA Abbe condenser can be adjusted to control the distance of the light from the stage and has an iris diaphragm to optimize the amount of light illuminating the specimen. The double-layer mechanical stage, with 1mm stage divisions, locks the slide into place and provides precise slide manipulation along the X- and Y-axis to allow coordinates to be recorded, enabling the viewer to return to a specific location on the slide. Separate coarse and fine focus knobs speed focusing. The enamel-coated cast-steel body is durable and resistant to stains and corrosion. Microscope SpecificationsHeadCompound binocularEyepiecesWF 10x, WF 20xObjectives4X, 10x, 40xS, 100xS (oil)StageDouble-layer MechanicalLighting configurationTransmitted (bottom)Condenser1.25 NA AbbeDiaphragmIrisLight sourceLEDIllumination typeBrightfieldPower100 to 240VAC 50/60Hz
Camera SpecificationsResolution10MP (3584 x 2748 effective pixels)Image typeStill image and video display and captureCamera typeBrightfieldCamera sensor1/2.3" Aptina MT9J001 CMOS (color)Magnification40xReduction lens0.5xMounting size23mm or C-MountFrame rate27fps at 872x654; 8fps at 1744x1308; 1.9fps at 3584x2748Computer connectionUSB 2.0 (backward compatible on PCs only)File formatsJPG, TIF, GIF, PSD, WMF, BMPSoftware packageImage capture and editing for Windows XP, Vista, 7, and 8; Mac OS X; and LinuxCamera driver compatibilityWindows XP, Vista, 7, and 8; Mac OS X; and Linux

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus,
