8X8 Dot Matrix LED Display Driver Board Full Color LED Display Red Green Bule RGB Anode Digital Tube Screen (Board dot Matrix)

Description

• The full-color RGB dot matrix driver board is an for control board module specially designed for RGB full-color dot matrix
• In addition to being able to drive RGB dot matrix independently, this module can also be used as an for control board.
• The ISP interface is also led out on the board, and the corresponding I/0 port can be led out to the 328 at any time, but some IIC interfaces and power supply interfaces are led out.
• Very convenient and practical, the onboard chip is ATmega 328 chip
• Support hardware URAT and IIC communication methods

Introduction:
The full-color RGB dot matrix driver board is a control board module specially designed for RGB full-color dot matrix. This module can independently drive the RGB dot matrix and can also be used as a control board. We can burn the control program to the driver board through the FTDI program downloader to control the dot matrix. Can control 64 RGB lights with different colors and different brightness, making the dot matrix display different patterns, cool and interesting, easy to use

about Driver board
RGB dot matrix driver expansion board 6-bit color support
Support hardware 16MHZ PWM
Without any additional circuits
Dedicated GPIO and ADC interface
Support hardware URAT and IIC communication methods
24 constant current channels, each channel current can reach 100mA

About the USB to TTL module included in RGB-kit
Standard interface, compatible with various official controller original FT232 chips, stable performance
Clear work status at a glance
With serial communication level selection, there are 3.3V and 5V, which can be used as ordinary USB-to-serial TTL module. Download STC MCU

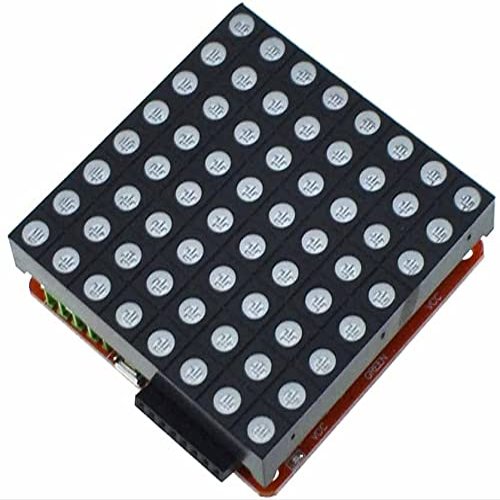

About 8*8 dot matrix
Three-color full-color common anode RGB LED dot matrix screen
Outer diameter size: 60mmX60mm
Diameter of dot matrix lamp: 5mm
Various cool shapes can be displayed
