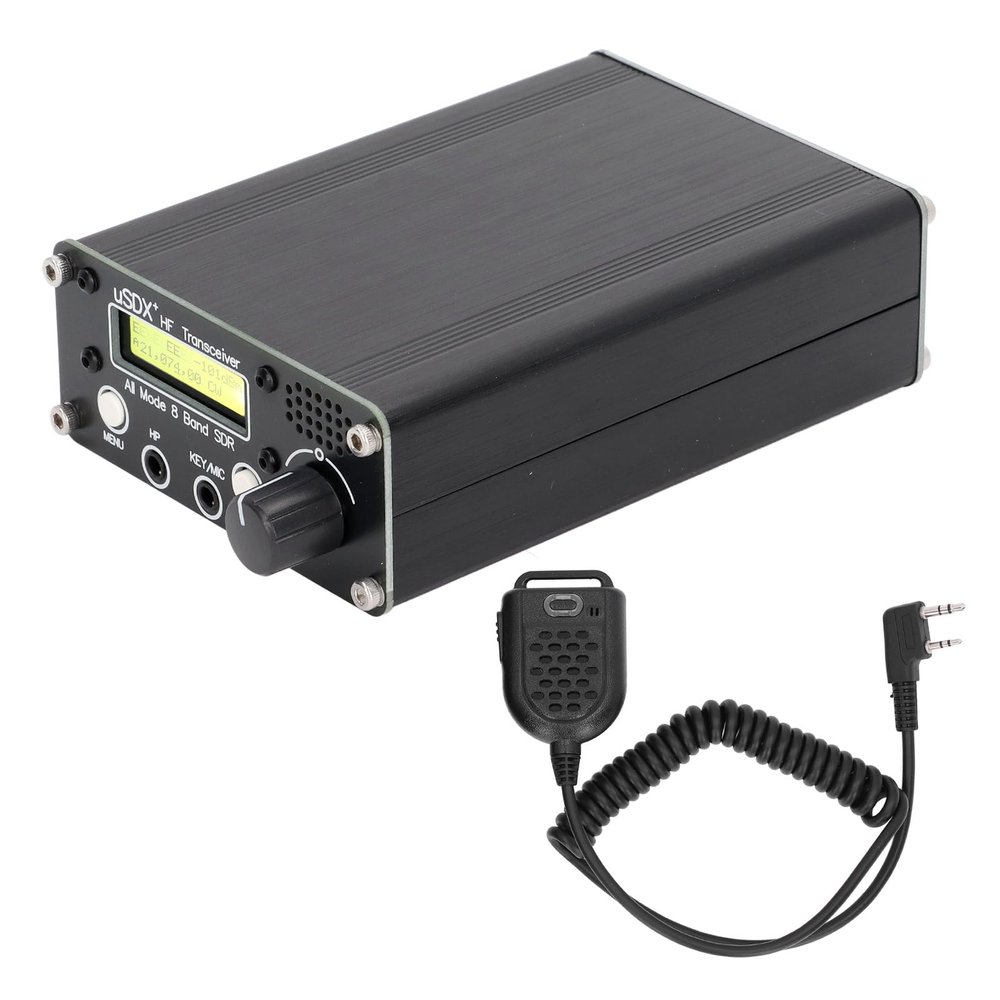

8 Band Shortwave Radio Transceiver HF SSB SDR QRP Full Mode Ham Radio with BNC Antenna Connector for Amateur Radio Operators(No Power Supply)

Description

• 8 BAND DESIGN: The full mode radio transceiver has an 8 band design, covering 80m, 60m, 40m, 30m, 20m, 17m, 15m and 10m frequency, which has high efficiency
• WITH SPEAKER: Upgraded built in speaker effect, stable sound and less interference, fast change of QRP CW frequency, and support CW side volume adjustment, compact design for ease of use
• FUNCTION: Shortwave QRP SSB CW radio transceiver, with clear LCD display, support connection to computer, use FT8, JS8, FT4 and other mode software to control digital, convenient to operate
• MULTIPLE INTERFACE: This QRP SSB transceiver has multiple interfaces, with built in speaker with cavity and BNC antenna interface, and all LPF parts use 100v c0g/np0 capacitors, can meet your using requirement
• EASY TO USE: Headphone and power button and microphone jack are on the front panel for easy connection of headphone and power button, with larger touch area and more comfortable key experience, offer you better using experience

Specification:
Item Type: Radio Transceiver
Size: Approx. 83 x 38 x 124mm / 3.3 x 1.5 x 4.9in (excluding protruding parts)
Support All Modes: USB, LSB, CW, AM, FM (SSB mode has good reception effect, but poor effect. AM and FM modes are , and the effect is not good)
DSP Filter: 4000, 2500, 1700, 500, 200, 100, 50hz passband
DSP Functions: Automatic Gain Control (AGC), Noise Reduction (NR), Xmit Voice (VOX), RX Attenuator (ATT), TX Noise Gate, TX unit control, volume control, dbm/s meter.
Sidebar Carrier Suppression SSSSB Transmit: Better Than -45dbc, imd3 (dual Tone) -33dbc, Receive: Better than -50dbc
Support multi-band support, continuously adjustable 10m within 80m frequency range (from 20khz to 99mhz, loss performance)
Software Complexity: 2000 lines of software-based Vovox code can be used for fast full control (QSK and half QSK ) or RX auxiliary switch TX in digital mode (no cat or PTT interface required), using fully digital TX delay stage and based on The software SSB class transmitter externally controls the PTT/PA output, controlling the phase of the sill si5351 (by small frequency changes i2c at 800kbits/s) and the amplitude of the pa (by the pwm pa key shaping circuit)
Adaptable Interface: 1.25mm Terminal
Specification: 11.1V(12.6V)/4000mAh
Size: 93*60*18mm/3.7*2.4*0.7in

Package List:
1 x Transceiver
1 x Microphone
4 x Machine Foot Pads

Note:
You can watch the video to operate
