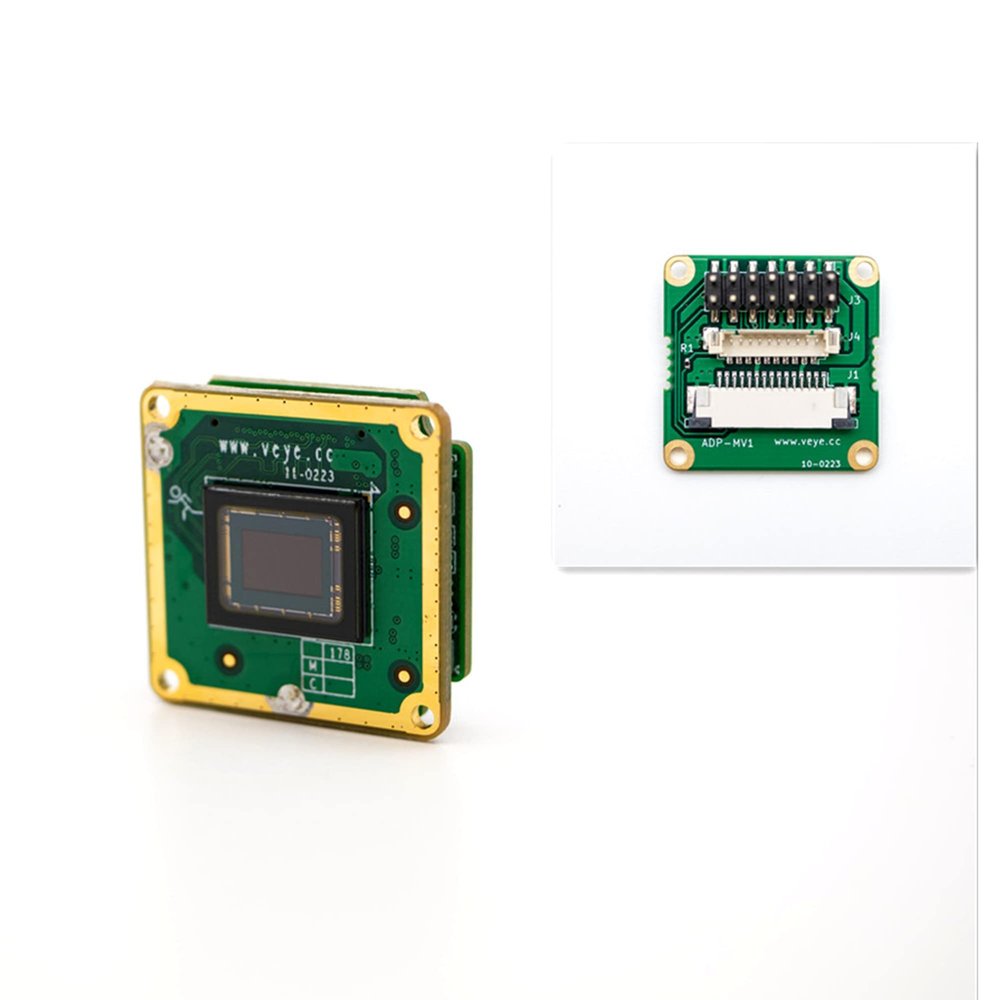

6.0MP Machine Vision MIPI CSI-2 Camera, MV-MIPI-IMX178M for All Raspberry Pi and Jetson NX and Nano (IMX178M and ADP-MV1)

Description

• Package:1pc* IMX178M and ADP-MV1
• MV-MIPI-IMX178M is a 6 million MONO industrial camera with MIPl interface
• Small size (29*29mm) and rich functions
• Support Raspberry Pi Zero&W, Pi 4,3b+,Pi3, Pi CM. Jetson Nano, Xavier NX
• Variety of lens options
• WIKI: http://wiki.veye.cc/index.php/MV-MIPI-IMX178_Index

Product introduction

MV-MIPI-IMX178M is a 6 million MONO industrial camera with MIPl interface.

This camera has a small size (29*29mm) and rich functions, so it is suitable for integration as an image acquisition component. Features

-1/1.8"6M Pixel STARVIS CMOS SENSORMIPI CSI-2 Interface
-Mono-8Mono-10Mono-12 Data Format
-Video streaming mode (Free Running) ,Trigger modeHigh-speed continuous trigger mode. Hardware and Software trigger source
-Support trigger frame number, interval, delay, trigger filter function. Strobe synchronization
-ROl
-USER Output
-Flexible frame rate settings

Technical Details

Sensor TypeCMOS
Shutter ModeRolling Shutter
SensorIMX178LLJ-C STARVIS
ColorMONO
lmage Size1/1.8""
Unit Cell Size2.4um 2.4um
Resolution3088 (H)x2064 (V)
Max Frame Rate3088x2064@22.3 fps
Gain0-48dB (again+dgain) , 0-24dB (again) , 0.1dB step
Exposure Time1/ (max frame rate)
Shutter ModeAEMEAE Once
ISPBad Pixel Correction8bit GAMMAUser Lookup Table
ADC Resolution12 bit
Pixel FormatMono8Mono10Mono12uYvY 8bit
ROISupport
Mirror lmageMirror and Flip
Working ModeHardware TriggerSoftware TriggerVideo streaming mode (Free Running)
Trigger ModeTrigger FilteringTrigger DelayTrigger Polarity Control
Strobe ModeStrobe Output ControlStrobe DelayStrobe Polarity Control
Strobe ModeStrobe Output ControlStrobe DelayStrobe Polarity Control

Electrical characteristics
Data lnterface
-CSI-2: 2 Data Lanes
-Data Rate / lane: 1.5Gbps
Communication Interface: 12C 3.3v
Digital lONon-isolation lO: 1 Trigger in2 Multi-function output3.3V Level
Power Supply5VDC
Power Consumption0.9w@ 5VDC

Structure
SizeLength * width * height = 29*29*11mm
Lens MountC-MOUNT01
