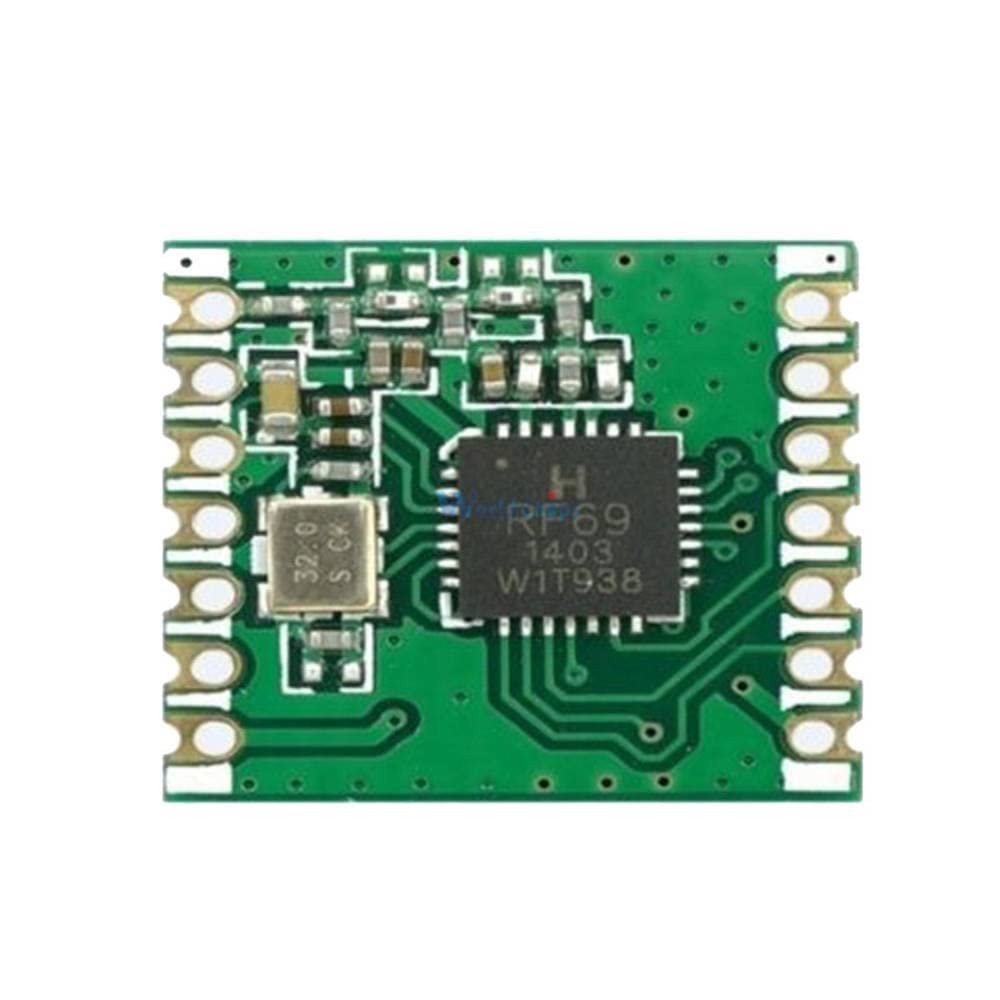

5Pcs RFM69CW HopeRF 433Mhz Wireless Transceiver with RFM12B Compatible

Description

• 5Pcs RFM69CW HopeRF 433Mhz Wireless Transceiver with RFM12B Compatible

Item Description This is an exciting upgrade from the popular RFM12B. The RFM69 is the next generation with improved functionality and performance, and it provides about 30% greater range. The RFM69CW module has been tested and proven to work in several RFM12B hardware design PCB's. The software however is not compatible with the RFM12B; however, it is straight-forward and we provide links to existing software library and demo source code.
We also have demo boards available--pre-loaded with software to help give you a jump start on your project. The RFM69CW is a highly integrated RF transceiver capable of operation over a wide frequency range, including the 433, 868 and 915 MHz license-free ISM (Industry Scientific and Medical) frequency bands.Its highly integrated architecture allows for a minimum of external components whilst maintaining maximum design flexibility. All major RF communication parameters are programmable and most of them can be dynamically set. The RFM69W offers the unique advantage of programmable narrow-band and wide- band communication modes without the need to modify external components. The RFM69CW is optimized for low power consumption while offering high RF output power and channelized operation.
Features:
+13 dBm Power Output Capability High Sensitivity: down to -120 dBm at 1.2 kbps High Selectivity: 16-tap FIR Channel Filter Low current: Rx = 16 mA, 100nA register retention Programmable Pout: -18 to +13 dBm in 1dB steps Constant RF performance over voltage range of chip FSK Bit rates up to 300 kb/s Fully integrated synthesizer with a resolution of 61 Hz FSK, GFSK, MSK, GMSK and OOK modulations Built-in Bit Synchronizer performing Clock Recovery 115 dB+ Dynamic Range RSSI Automatic RF Sense with ultra-fast AFC Packet engine with CRC-16, AES-128, 66-byte FIFO Built-in temperature sensor
