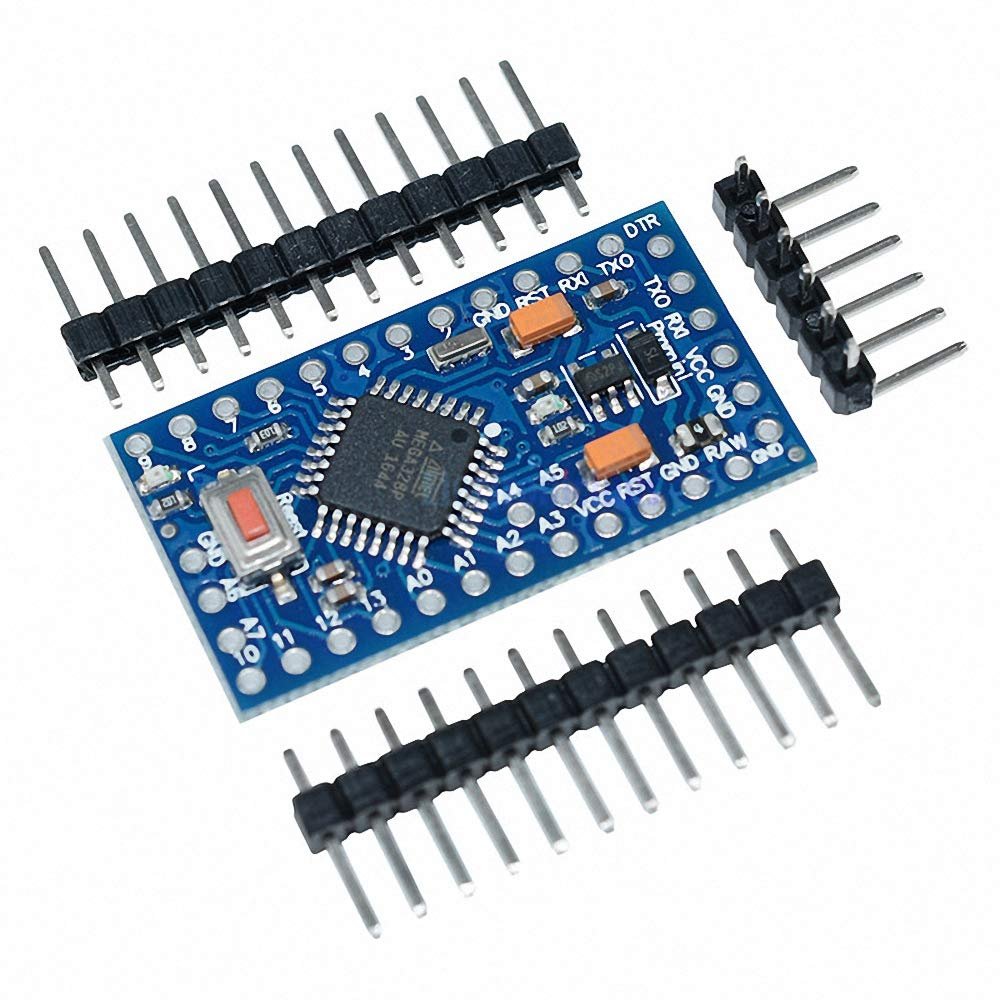

5pcs Pro Mini Atmega328 3.3V 8Mhz Board Module for Arduino Mini Atmega328P with Pins Replace Atmega128 Automatic Protection!

Description

It's thin (0.8mm)!This is a 3.3V running the 8MHz bootloader. Pro Mini does
not come with connectors populated so that you can solder in any connector or
wire with any orientation you need.The For Arduino Pro series is meant for
users that understand the limitations of system voltage (3.3V), lack of
connectors, and USB off board.
We used all SMD components, made it two layer, etc. This board connects
directly to the FTDI Basic Breakout board and supports auto-reset. The Pro
Mini also works with the FTDI cable but the FTDI cable does not bring out the
DTR pin so the auto-reset feature will not work.
Features:

1. ATmega328 running at 8MHz with external resonator (0.5% tolerance)
2. Low-voltage board needs no interfacing circuitry to popular 3.3V devices and modules (GPS, accelerometers, sensors, etc)
3. USB connection off board
4. Supports auto-reset
5. 3.3V regulator
6. Max 150mA output
7. Over current protected
8. Reverse polarity protected
9. DC input 3.3V up to 12V
10. On board Power and Status LEDs
Dimensions:

1. 0.7x1.3" (18x33mm)
2. Less than 2 grams
Shipping List:

1. 5PCS For Arduino pro min atmega328p board 3.3v 8M version
2. 15PCS Gilded Pin
More pro mini please click this link!
