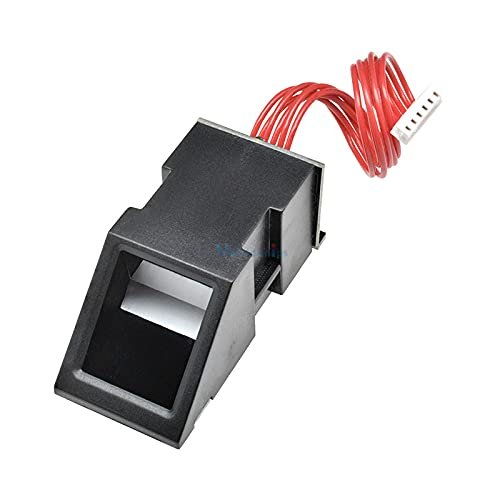

3.3V/5V Power Picro-Controller FPM10A Fingerprint Reader Sensor Module Optical for Arduino Locks Serial Communication Interface

Description

• 3.3V/5V Power Picro-Controller FPM10A Fingerprint Reader Sensor Module Optical For Arduino Locks Serial Communication Interface

Features and specifications:
FPM10A fingerprint reader sensor module
Item Description
Supply voltage: DC 3.6 ~ 6.0 V / 3.3 V
Supply current: <120 mA
Peak current: <140mA
Fingerprint image time: <1.0 seconds
Window size: 14 18 mm
Matching mode: Match mode (1 : 1)
Search mode: (1 : N)
Signature file: 256 bytes
Template files: 512 bytes
Storage capacity: max 200
Safety level: Five (from low to high: 1, 2, 3, 4, 5)
False accept rate (FAR): <0.001% (security level 3)
False reject rate (FRR): <1.0% (security level 3)
Search time: <1.0 seconds (1:500, mean)
PC interface: UART (TTL logic level) or USB2.0 / USB1.1
Communication baud rate (UART): (9600 N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps)
Working environment:
Temperature: -20 - 50
Relative Humidity: 40% RH-85% RH (non-condensing)
Storage environment:
Temperature: -40 - 85
Relative humidity: <85% H (non-condensing)
Dimensions (L W H):
Split: Fingerprint sensor: 56 20 21.5 mm
-One: 56 20 21.5 mm
Hardware connection:
Serial communication interface module, with 3.3 V or 5 V power micro-controller.
Communication: Module data transmission feet (2 Food TD) connected to the data bit machine receiving end (RXD). Data receiver module feet (3 feet RD) connected to the data sender bit machine (TXD). For the RS-232 level (for example: PC machine) for PC communication, increase the level conversion between the module and the host computer
Circuitry (e.g.: MAX232 circuit)
Packaging information:
1 x Optical fingerprint reader sensor module sensors all-in-one for Arduino Lock
