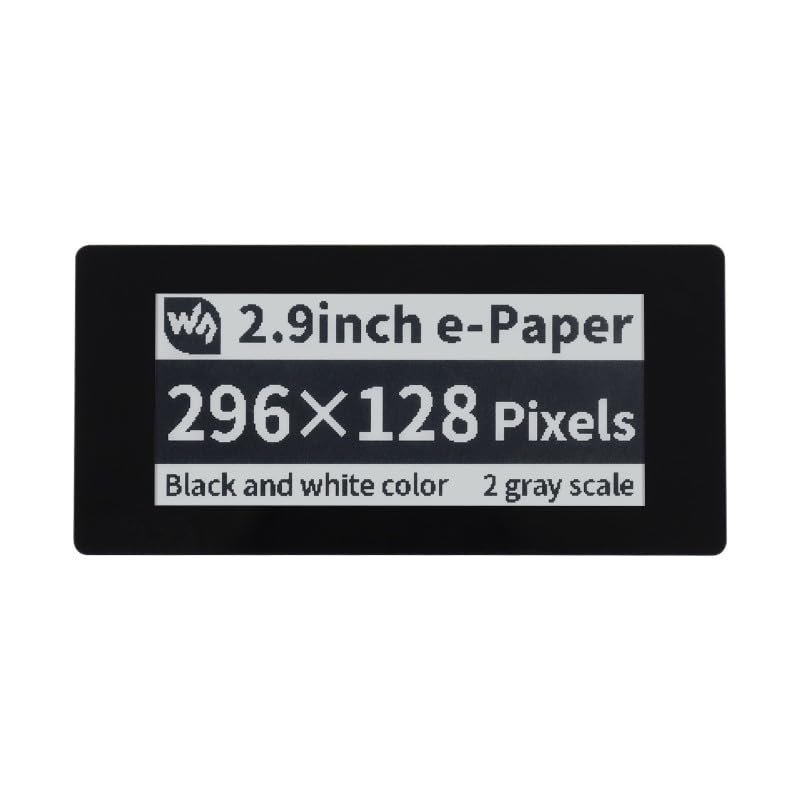

2.9inch Touch E-Paper E-Ink Display HAT Compatible with Raspberry Pi 296x128 Resolution 5-Points Capacitive Touch Black/White Color SPI Interface

Description

• This is an official E-Ink display of Waveshare.2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
• Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
• Onboard voltage translator, compatible with 3.3V/5V MCUs.Ultra low power consumption, basically power is only required for refreshing
• SPI interface, for connecting with controller boards like RPi/Arduino/Nucleo, etc.Comes with development resources and manual (examples for RPi/Jetson Nano/Arduino/STM32)
• No backlight, keeps displaying last content for a long time even when power down.

Specification

Dimensions: 2.9inch

Outline dimensions: 89.1mm 42.7mm

Outline dimensions: 79.50mm 37.50mm

Display color: 66.89mm 29.05mm

Operating voltage: 3.3V / 5V (5V is required for power and signal

Communication interface: SPI

Dot pitch: 0.227mm 0.227mm

Resolution: 296 128

Display color: Black, white

Greyscale: 4

Refresh time: 3s

Refresh power: 26.4mWtyp.

Standby current: <0.01uA (almost 0)

The following points apply only to 2.9inch Touch e-Paper HAT models

Touchpoints: 5MAX

Touch type: Capacitive touch

Touch interface: I2C (Address: 0x48)

Touch panel: Toughened Glass

Package Content

2.9inch Touch e-Paper HAT

2.9inch e-Paper HAT x1
