20-40kA 2P+N 385V 20KA 40KA 60KA 80KA AC 385V Din Rail SPD Low Voltage Surge Protector Device 1Pcs(20KA40KA)

Description

• Surge Protectors

Surge Protectors
SPD 20-40kA 2P+N 385V 20kA/40kA 10kA/20ka 30kA/60kA 40kA/80kA AC Din Rail surge arrest Low Voltage Surge Protector Device
Application: 2P 10/20kA (Yellow)
1. Green/Red window color showing working status,green=normal ,red=abnormal.
2.Maximum continuous operating voltage Uc(V): 385V AC
3.Voltage protection level up(KV): 1.5KV
4.Nominal discharge current In(8/20s)KA: 10kA
5.Maximum discharge current Imax(8/20s)KA: 20kA
Application: 2P 20/40kA (White)
1. Green/Red window color showing working status,green=normal ,red=abnormal.
2.Maximum continuous operating voltage Uc(V): 385V AC
3.Voltage protection level up(KV): 1.8KV
4.Nominal discharge current In(8/20s)KA: 20kA
5.Maximum discharge current Imax(8/20s)KA: 40kA
Application: 2P 30/60kA (Red)
1. Green/Red window color showing working status,green=normal ,red=abnormal.
2.Maximum continuous operating voltage Uc(V): 385V AC
3.Voltage protection level up(KV): 2.2KV
4.Nominal discharge current In(8/20s)KA: 30kA
5.Maximum discharge current Imax(8/20s)KA: 60kA

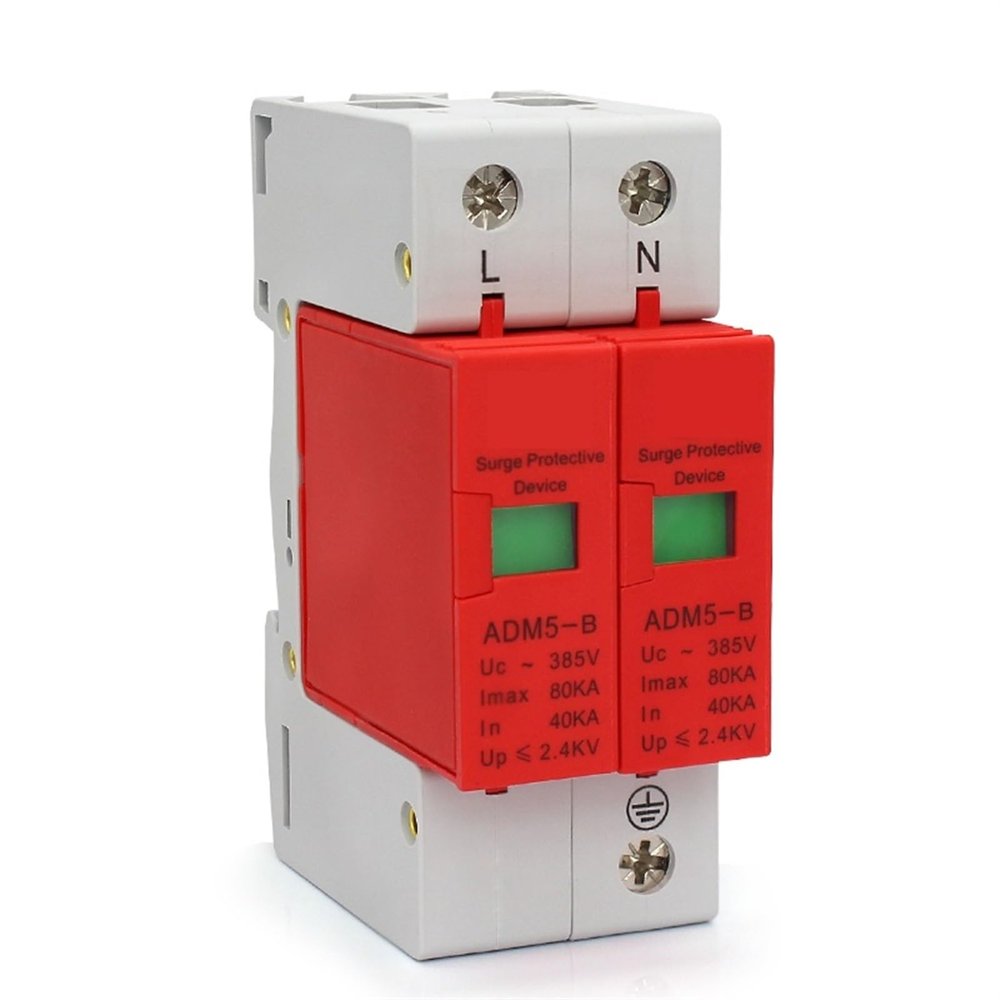

Application: 2P 40/80kA (Red)
1. Green/Red window color showing working status,green=normal ,red=abnormal.
2.Maximum continuous operating voltage Uc(V): 385V AC
3.Voltage protection level up(KV): 2.4KV
4.Nominal discharge current In(8/20s)KA: 40kA
5.Maximum discharge current Imax(8/20s)KA: 80kA
