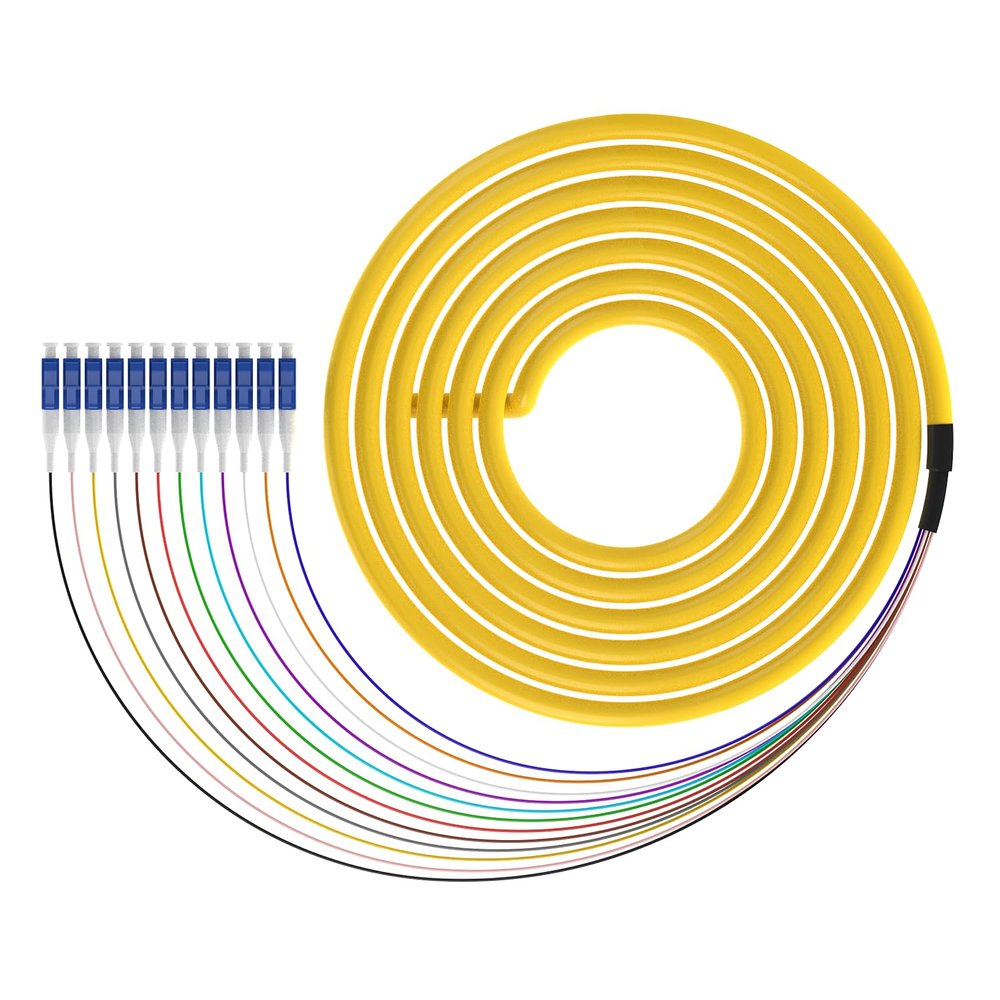

1.5m (5ft) LC-UPC 12 Strand Single Mode 9/125 Fiber Optic Pigtail, Color-Coded OS1/OS2 Cable with Ceramic Ferrule for Fusion Splicing, Ideal for OLT, ONU, Servers, Telecom and Data Center Equipment

Description

• 1. High-Quality Single Mode Fiber (OS1/OS2 Compatible): This 1.5-meter (5ft) 12-strand fiber optic pigtail features Single Mode 9/125m cable with LC/UPC connectors, compatible with both OS1 and OS2 standards for long-distance and high-performance transmission. Color-coded for easy identification.
• 2. Zirconia Ceramic Ferrule: Equipped with premium zirconia ceramic ferrules, ensuring low insertion loss and high durability. The removable protective jacket supports tight bend radius and high-density installations for optimal space efficiency.
• 3. Superior Performance for Fusion and Mechanical Splicing & Long-Distance Transmission: This pigtail delivers excellent low back reflection and high return loss, surpassing industry standards. Ideal for both fusion splicing and mechanical splicing in environments such as OLT, ONU, and server rooms. This pigtail is compatible with both OS1 and OS2 fiber standards, offering reliable performance for both short and long-distance transmission.
• 4. Color-Coded for Quick, Error-Free Installation: Each of the 12 strands is individually color-coded, saving time and preventing patching errors during installations. Designed for plug-and-play compatibility, fully tested for 100% optical reliability.
• 5. Versatile Applications in Fiber Networks: Perfect for use in data centers, optical LAN/WAN, telecommunications, CATV systems, and communication networks. Widely used in OLT, ONU, network servers, and high-density fiber installations.

1.5M 12 Strand Singlemode LC/UPC Fiber Optic Pigtail Cable

The 1.5M 12 Strand Singlemode LC/UPC Fiber Optic Pigtail Cable is designed for seamless fusion splicing inside fiber optic enclosures, making it ideal for connecting a variety of devices. Each of the 12 strands is pre-terminated with LC/UPC connectors on one end, while the other end remains blunt for easy splicing to your drop cable. This design eliminates the need for troublesome field terminations, ensuring a more efficient installation process.

Specifications
1. Excellent Performance: Our pigtails feature lower insertion loss and high return loss, ensuring environmentally stable and repeatable connections. Each fiber bushing is crafted from high-quality porcelain, significantly minimizing optical signal loss across all configurations of fiber tail cables and patch cords.

2. Machine Polished: Each fiber pigtail is machine polished, resulting in a much lower light loss compared to hand polishing done in the field, ensuring optimal performance.

Color-Coded Convenience
1. Easy Identification: The splice-ready 900m buffered cables are color-coded according to industry standards, allowing for quick and accurate identification. The pre-terminated connectors are machine polished to guarantee optimal light transmission performance.
2. Quality Assurance: Each cable undergoes thorough inspection and comes with a test report. Our pigtails are available in various configurations, including different connectors, polishing styles, strand counts, and even armored or waterproof options.

Parameters
- Fiber Type: Single-Mode
- Connector(s): LC Connector
- Cable Length: 1.5M
- Minimum Bending Radius: 3.8cm
- Ferrule Material: Ceramic
- Working Wavelength: 1310-1550nm
- Insertion Loss: 0.3 dB
- Echo Wear: 50 dB
- Tensile Strength: 4KG
- Interchangeability:
- Operating Temperature: -40C to +80C
- Storage Temperature: -40C to +85C
- Number of Connectors: 1000

Applications
This versatile pigtail cable is perfect for a wide range of applications, including:
- Telecom and Datacom: Ideal for connecting OLTs (Optical Line Terminals), ONUs (Optical Network Units), and network switches.
- Data Centers: Excellent for interconnecting servers, storage area networks (SANs), and routers.
- CATV and Multimedia Applications: Perfect for use with set-top boxes, video servers, and other multimedia devices.
- Systems Integration: Essential for long-haul, metro, and access networks, ensuring reliable connections between various equipment.
- Fiber to the Indoor (FTTX) Testing: Suitable for connecting to indoor routers, distribution frames, and patch panels.

Package Includes
- 1 x 12 Strand Fiber Optic Pigtail with 12 Strand LC-UPC Cable Connectors, perfect for connecting to end equipment such as adapter panels, optical transceivers, and various communication devices.
