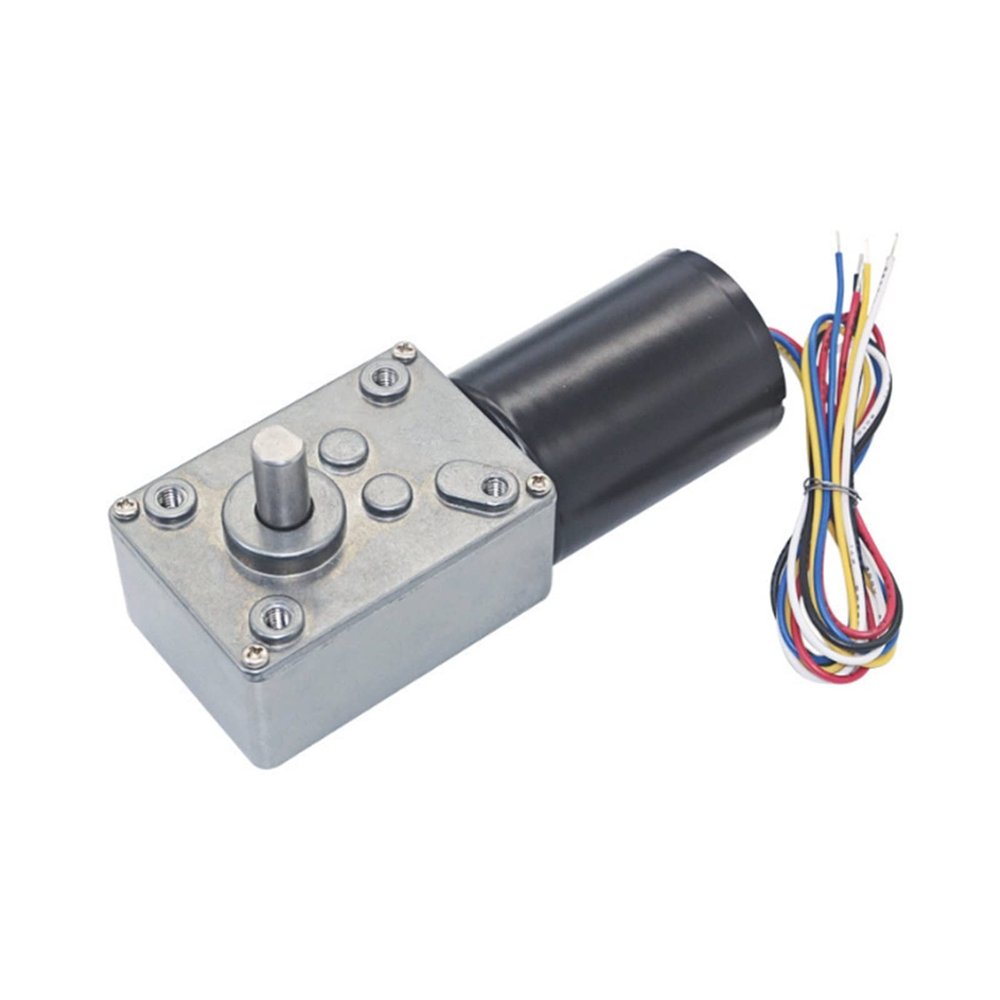

12V DC Motor Brushless Electric Worm Geared Motor High Turbine Reduction Motor With Self Locking 5840-3650 Reversible (Size : 80R)

Description

• Motor Drives

Motor Drives
Warning: it is forbidden to connect the positive and negative poles of the power supply wrongly, and the signal line is forbidden to be connected, otherwise the motor will be damaged!
Red wire:
motor power supply + do not connect wrongly
Black wire:
motor power supply - do not connect wrongly
Yellow wire:
the signal motor has 6 pulse signals per turn
Blue wire:
0-5V voltage speed regulation
White wire:
positive and negative rotation line (connected with black wire connected negative rotation)
default overcurrent protection 4A, locked rotor protection, with automatic start function
Main performance:
Double ball bearing structure
Forward and reverse free switching function
Brake by wire function
Speed regulation PWM function
FG signal speed measurement function
Overcurrent protection function 3A
Overvoltage protection function 30V
Over temperature protection function 80
Rated voltage: 12V
No load current: 230mA
Rated current: 0.8A
Protection voltage: 30V
Drive protection current: 30A
Note: the maximum bearing capacity of the gear is 70kg. Locked rotor is prohibited. Locked rotor a long time is easy to burn the motor.
