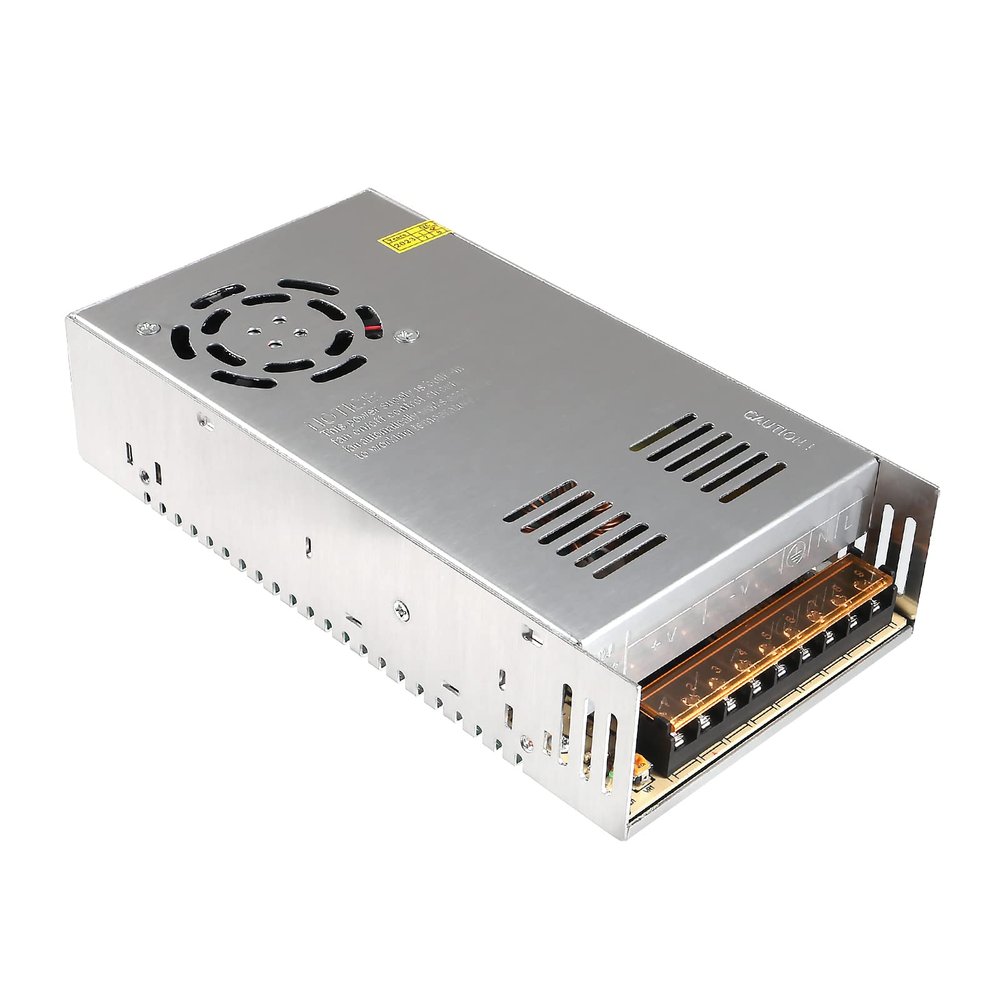

12V 30A Power Supply Transformer Adapter 360W AC to DC Adapter 12 Volt 30 Amp Switching Power Supply Converter Transformer LED Driver 110V 240V AC for LED Strip Light 3D Printer LCD Monitor

Description

• Input: 110V/220V AC, Output: DC 12V, Max 30A, 360W. The output voltage is adjustable by 15%, from 10.2V to 13.8V. Three sets of output channels.
• It can deliver less than 30A with all amps. ---like 1A, 2.5A, 10A, 18A, 20A, 30A. For example, if your device draws 25A, it will supply 25A. If more than 30A is drawn, only 30A will be supplied and the power supply will be damaged soon. NEVER OVERLOAD!
• Metal case with many holes makes heat dissipation more efficient.
• Ideal for LED strip, 3D printer, ham radio transceiver, audio amplifier, wireless router, audio/video power supply. Only use indoors!
• Automatic overload cut-off, over-voltage cut-off, automatic thermal shutdown, short-circuit protection, there are no significant voltage fluctuations when switching on, during transmission, receiving or when switching off.

Input: AC 110V/220V, 50/60Hz
Output voltage: DC 12V (regulated by 15%, 10.2V~13.8V)
Output current: Max. 30A
Output power: Max. 360W
Fixing screw hole diameter: 2.5mm(0.1inch)
Working temperature: -10~50
Storage temperature: -20~60
Ambient humidity: 10 95%

Connection instructions:
L: AC live wire
N: AC neutral wire
+V:DC 12V+
-V: DC 12V-
+V ADJ: Adjust output voltage by 15%

Scope of delivery:
1 x 12V 30A power adapter (power cord is not included)

Note:
110V/220V must be charged before using by switch can be selected to avoid damage.
The power selector switch (110 V/220 V) is located inside the housing.
High voltage inside, NEVER remove the cover. Not waterproof, for indoor use only.
Make sure your device conform to 12V voltage and wattage less than 360W.
The maximum usage should be no more than 80% of the full load.
We recommend you use this 12V 30A 360W power adapter to power devices less than 288W.
Please do not overload it.
